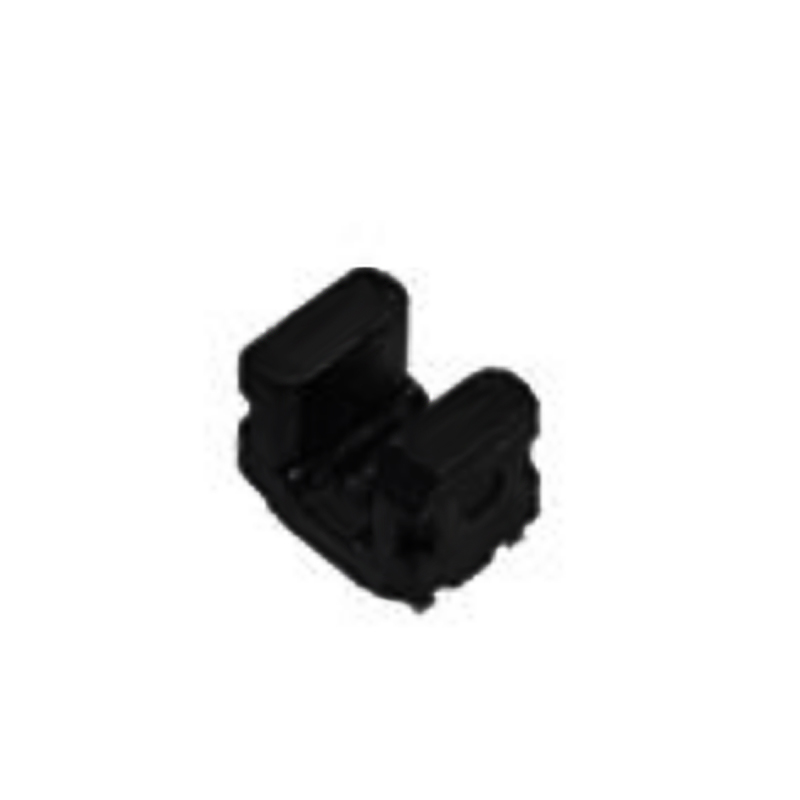

Sharp Microelectronics GP1S296HCPSF Photointerrupter - Reflective Type, Surface Mount
The Sharp Microelectronics GP1S296HCPSF is a compact, surface-mount reflective photointerrupter module with phototransistor output, designed for precise object detection and position sensing in space-constrained applications. It operates from -25°C to 85°C and is compatible with standard SMT assembly processes.
Features
- Reflective-type photointerrupter with integrated IR emitter and phototransistor detector.
- Ultra-compact surface-mount package measuring 2.5 × 1.8 × 1.9 mm.
- Designed for precise gap sensing with a 1.0 mm detection gap and 0.2 mm detector slit.
- Wide operating temperature range from -25°C to +85°C.
- RoHS compliant construction for environmental safety.
Out of stock
The GP1S296HCPSF is a highly miniaturized reflective photointerrupter from Sharp Microelectronics, utilizing an infrared LED emitter paired with a phototransistor detector within a single, molded SMT package. It functions by detecting the presence or absence of a reflective surface within its precise 1.0 mm sensing gap, providing a digital output signal change.
Manufactured using advanced transfer and injection molding techniques, this device ensures high reliability and stable performance in a footprint optimized for high-density PCB designs. Its robust design supports a broad industrial temperature range, making it suitable for integration into automated assembly lines, precision encoders, and miniaturized consumer electronics where reliable non-contact sensing is critical.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 0.25 × 0.18 × 0.19 cm |
