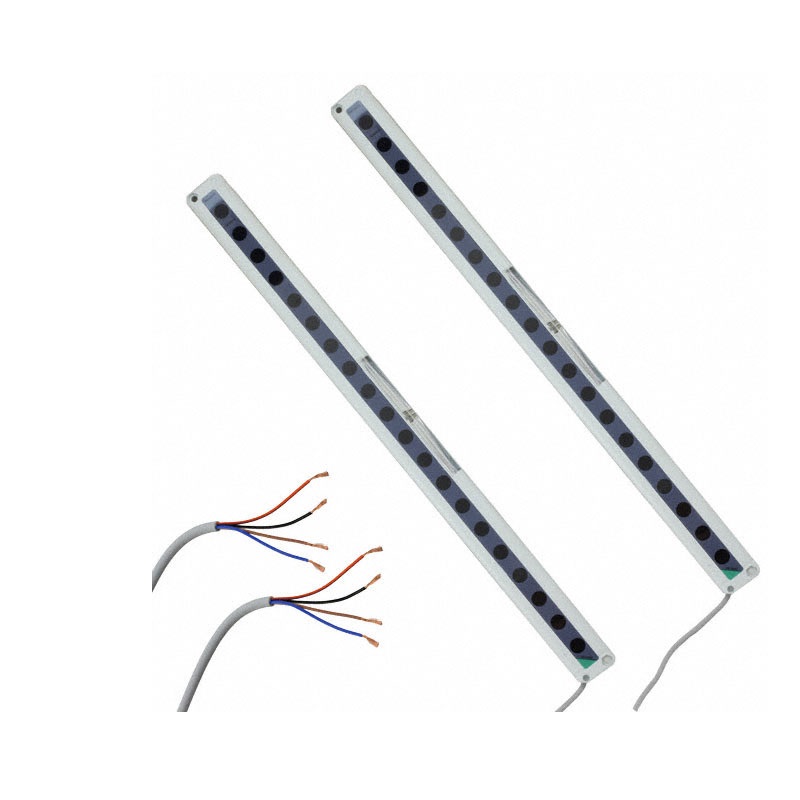

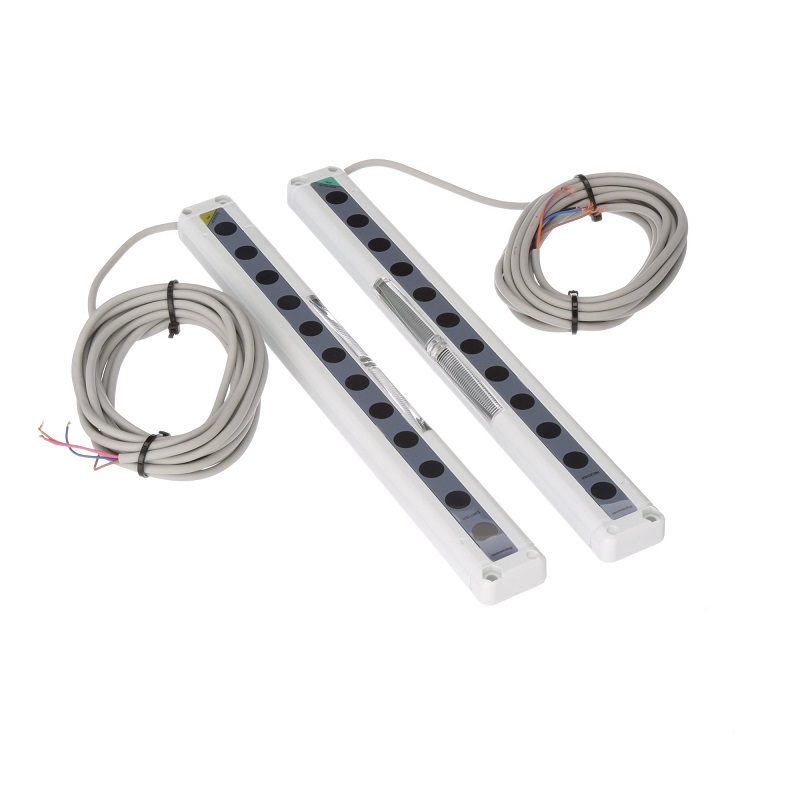

Panasonic NA2-N20-PN Photoelectric Area Sensor, 5m Range, 20-Beam, PNP Output
The Panasonic NA2-N20-PN is a high-performance photoelectric area sensor utilizing a through-beam method with 20 infrared beams for a 380mm detection height and a 5m sensing distance. It features a PNP open collector output compatible with industrial PLCs and controllers operating on a 12-24V DC supply.
Features
- Through-beam photoelectric sensor with 20 independent infrared beams.
- Extended detection height of 380mm and a long sensing distance of 5 meters.
- PNP open collector transistor output with short-circuit protection.
- Designed for industrial durability with an IP40 rating and -10°C to 60°C operating range.
- Detects opaque objects with a minimum diameter of φ30 mm.
Out of stock
The Panasonic NA2-N20-PN is a sophisticated photoelectric area sensor engineered for reliable object detection across a wide area. It employs a through-beam sensing principle, where an array of 20 infrared LED emitters projects beams to a corresponding receiver. An object interrupting any beam triggers the PNP output, making it ideal for monitoring conveyor belts, entryways, or automated assembly lines.
Built for industrial environments, the sensor operates on a standard 12-24V DC supply common in control panels and features robust construction with an IP40 ingress protection rating. Its design ensures stable performance across a temperature range of -10°C to 60°C and humidity levels from 35% to 85% RH, providing dependable operation in demanding settings.
Additional Information
| Weight | 0.581 kg |
|---|---|
| Dimensions | 9 × 47 × 7 cm |
