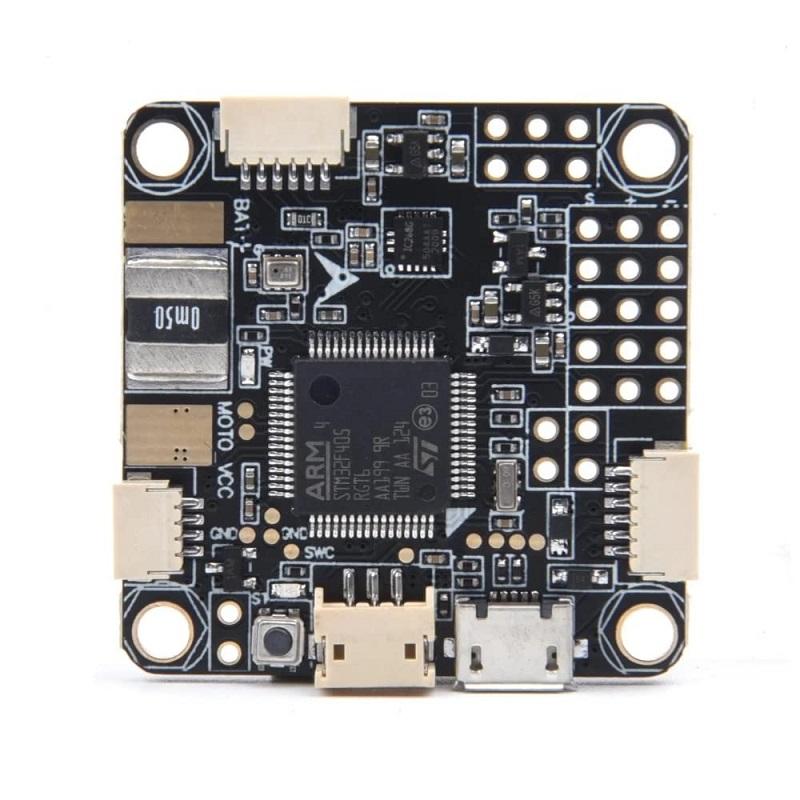

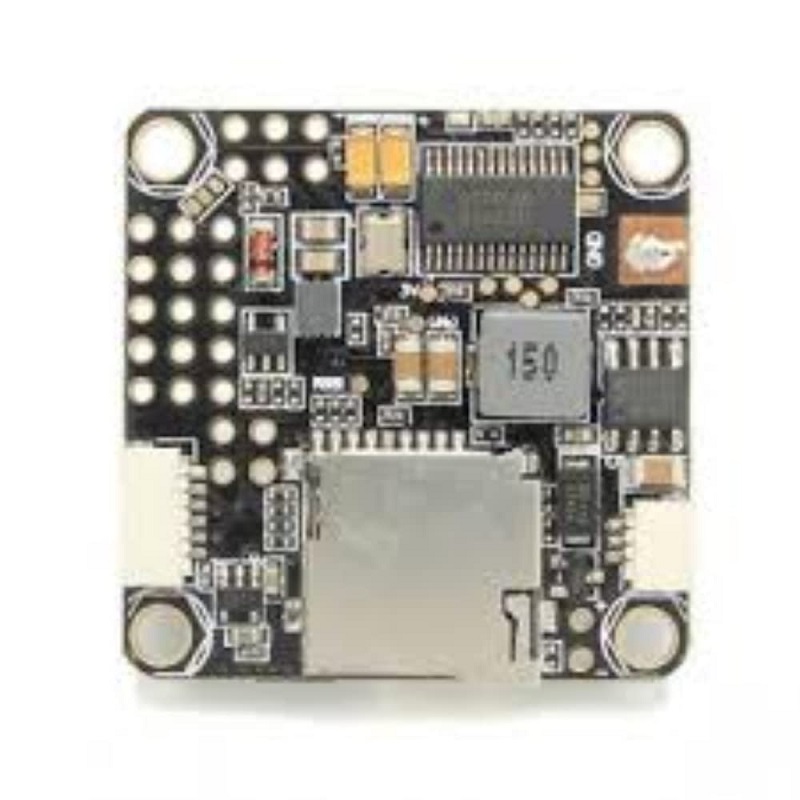

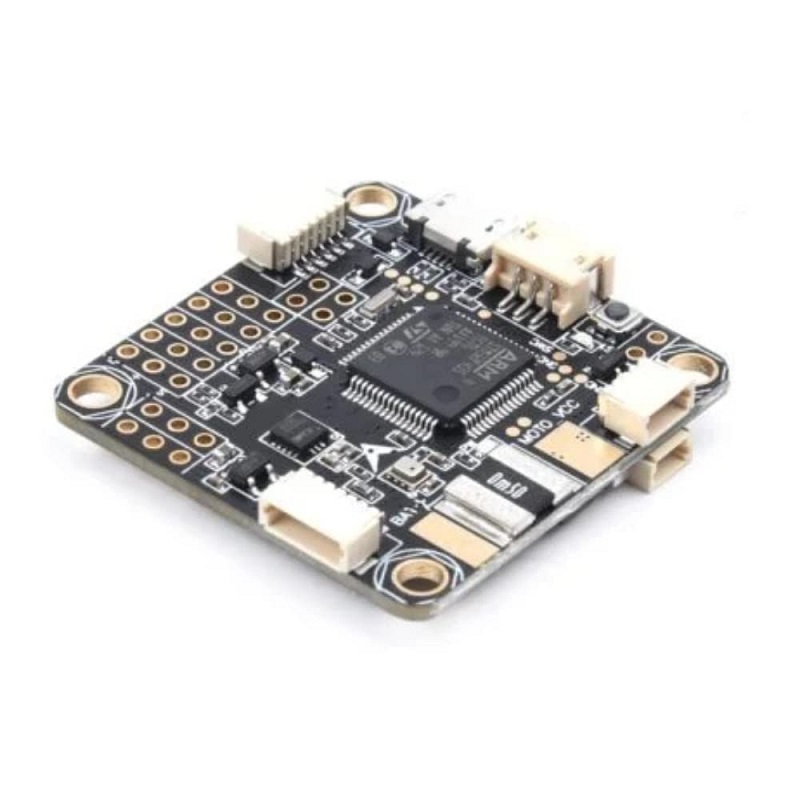

OMNIBUS F4 Flight Controller with OSD + BEC
The OMNIBUS F4 Flight Controller integrates an STM32 F405 processor, on-screen display (OSD), and a 5V BEC into a 36x36mm footprint. It is designed for Betaflight-compatible FPV racing and freestyle drone builds, supporting a wide range of receivers and featuring black box logging via microSD.
Features
- STM32 F405 168 MHz ARM Cortex-M4 processor with 1 MB Flash memory for Betaflight firmware.
- Integrated OSD chip (AB7456) for real-time telemetry overlay on FPV video feed.
- Onboard 5V BEC and current sensor simplify power system wiring and monitoring.
- MPU6000 gyro/accelerometer and BMP280 barometer provide stable flight control and altitude hold.
- 36x36mm board with 30.5×30.5mm mounting pattern for broad frame compatibility.
Out of stock
The OMNIBUS F4 Flight Controller is a feature-dense autopilot built around the STM32 F405 microcontroller, delivering the processing power required for advanced Betaflight flight modes and filtering. Its integrated AB7456 OSD chip allows pilots to configure and display critical flight data like battery voltage, current draw, and RSSI directly on their FPV goggles without external modules.
Electrical design includes a robust 7-21V input range, accommodating 2S to 5S LiPo batteries, and a built-in 5V/2A BEC to power receivers, VTXs, and cameras. The onboard MPU6000 IMU and BMP280 barometer provide accurate attitude and altitude data, while the microSD slot enables detailed black box logging for tuning and post-flight analysis.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 3.6 × 3.6 cm |
