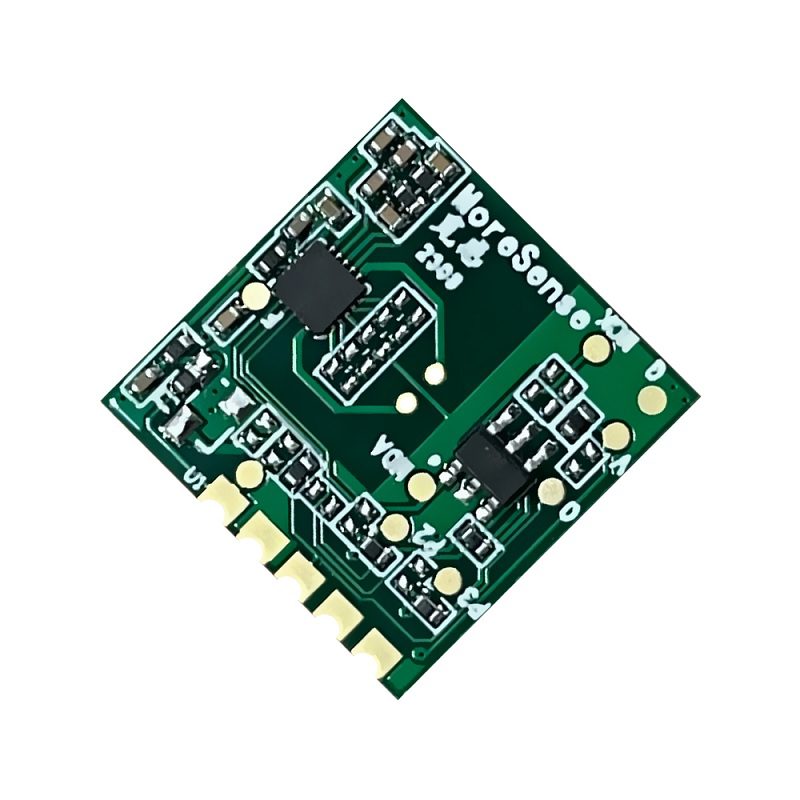

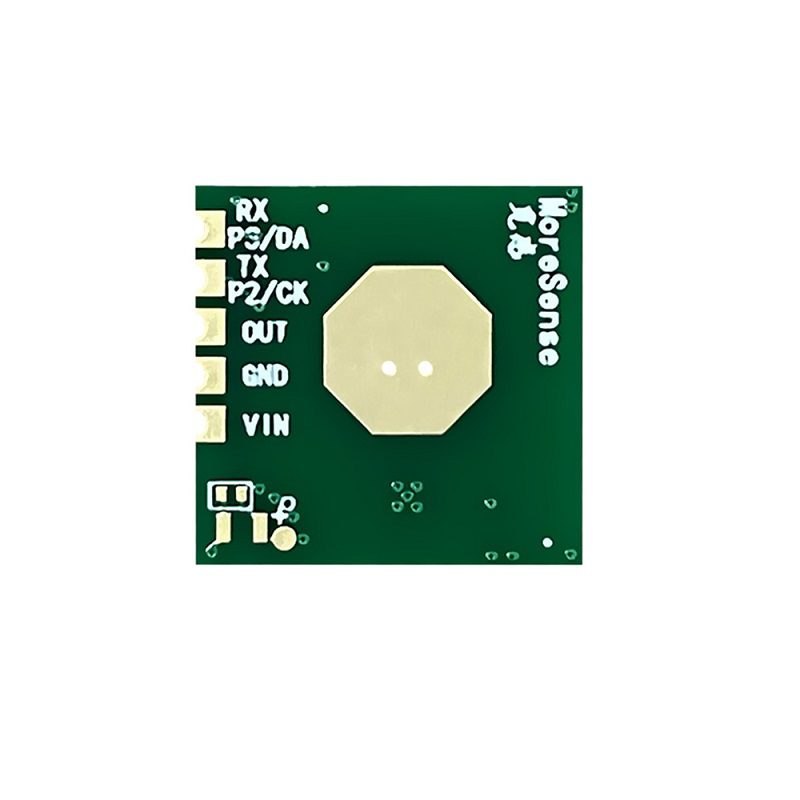

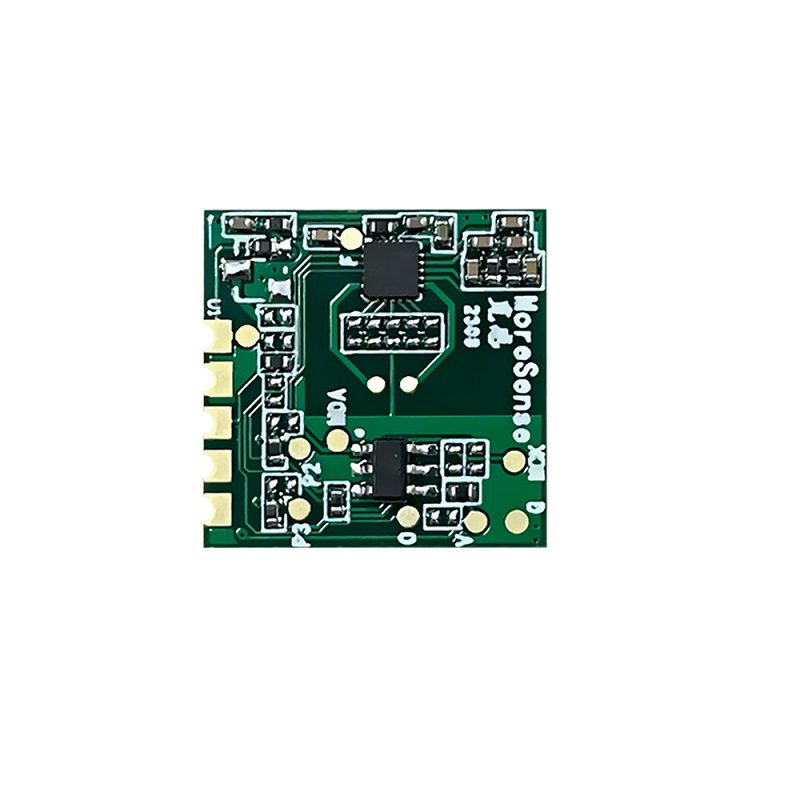

Moresense MS10-1616S26M4 Microwave Radar Sensor Module, 10GHz, I2C/UART/GPIO
The Moresense MS10-1616S26M4 is a 10GHz microwave Doppler radar module with a compact 16x16mm footprint, designed for motion detection in space-constrained applications. It operates at 3.3V DC and communicates via I2C, UART, or GPIO, making it compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi.
Features
- 10.5GHz–10.55GHz Doppler radar sensor with integrated planar antenna.
- Ultra-compact 16mm x 16mm module size for embedded designs.
- Dual operating modes: normal power and ultra-low power consumption.
- Penetrates thin non-metallic materials like acrylic and glass.
- Standard I2C, UART, and GPIO interfaces for flexible MCU integration.
Out of stock
The MS10-1616S26M4 is a miniaturized 10GHz microwave radar module based on the Doppler effect, designed for precise motion sensing. Its high-frequency operation and integrated antenna provide reliable detection unaffected by ambient light, dust, noise, or environmental factors like temperature and humidity.
This module supports configurable sensing parameters and output timing via its communication interfaces, offering a sensing radius of up to 4 meters at a mounting height of 3 meters. Its robust construction and compliance with FCC, CE, and RoHS standards ensure suitability for commercial and industrial integration.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6 × 5 × 2 cm |
