Senba SB612-02-0001-L PIR Human Motion Sensor Module - Metal Casing, 8m Range
The Senba SB612-02-0001-L is a high-sensitivity PIR (Passive Infrared) motion sensor module designed for automatic lighting, security, and energy-saving systems. It operates on a wide DC voltage range (3.8V-12V) and features a metal casing for enhanced EMI immunity, making it suitable for integration with Arduino, Raspberry Pi, and industrial control boards.
Features
- Passive Infrared (PIR) technology for reliable human motion detection.
- Wide 115° detection cone with a range of up to 8 meters.
- Metal casing with grounding for superior electromagnetic interference (EMI) rejection.

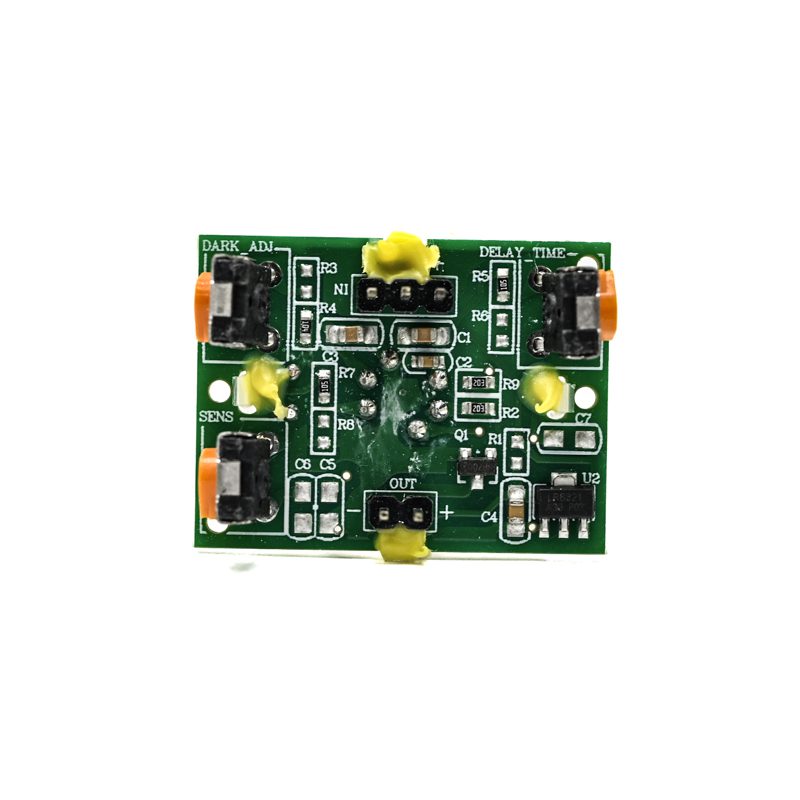

- Fully adjustable sensitivity, delay time (2 sec to 70 min), and light control threshold.
- Repeatable triggering mode maintains high output for continuous motion within the zone.
Out of stock

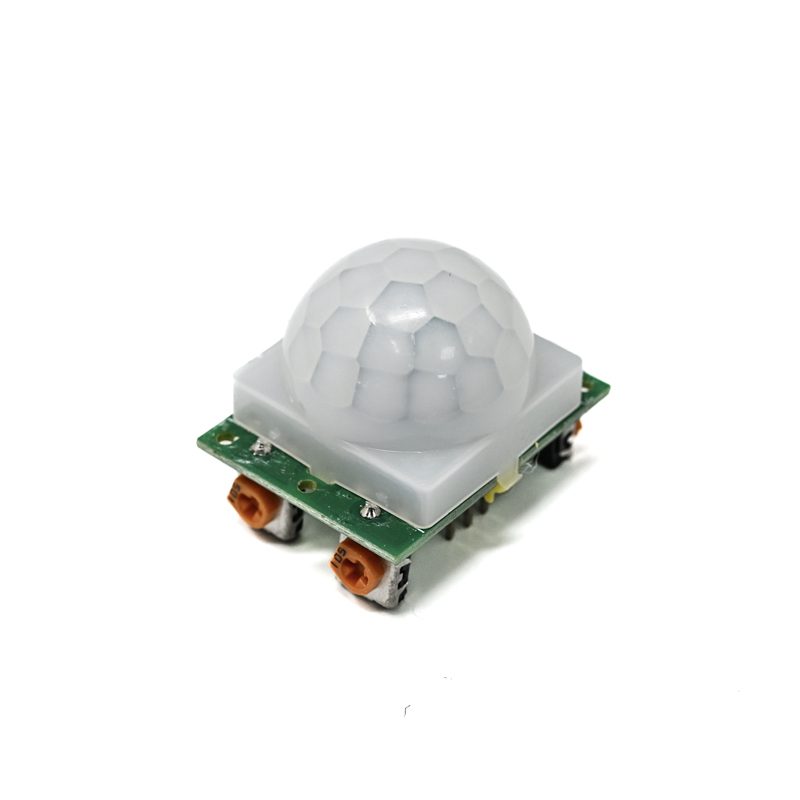

The SB612-02-0001-L module utilizes a high-quality pyroelectric infrared sensor paired with a Fresnel lens to detect changes in infrared radiation caused by human movement. Its integrated digital signal processor filters out environmental noise, ensuring stable and reliable trigger outputs. The module outputs a digital high/low signal compatible with microcontrollers and logic circuits.
Engineered for durability, the module operates reliably across an industrial temperature range from -20°C to +55°C. The metal housing not only provides mechanical protection but also acts as a Faraday cage to shield the sensitive analog front-end from external RF and electrical noise, which is critical for installations near motors, relays, or switching power supplies.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
