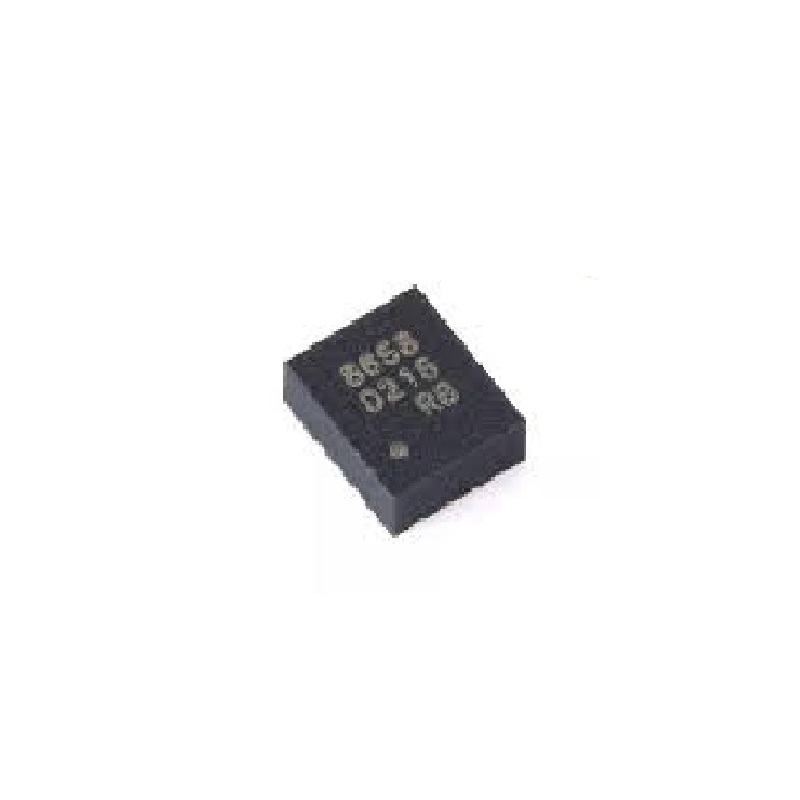

QST QMI8658A LGA-14 6-Axis IMU Accelerometer Gyro ROHS
The QST QMI8658A is a compact 6-axis MEMS inertial measurement unit (IMU) integrating a 3-axis accelerometer and 3-axis gyroscope, designed for high-precision motion tracking. It features low-noise performance and supports I2C, SPI, and MIPI I3C interfaces for seamless integration with microcontrollers like STM32, ESP32, and Raspberry Pi.
Features
- 6-axis MEMS IMU with 3-axis accelerometer and 3-axis gyroscope
- Low noise performance: 13 mdps/√Hz gyro, 150 µg/√Hz accelerometer
- Supports I2C, SPI, and MIPI I3C digital interfaces
- Integrated 1536-byte FIFO and embedded temperature sensor
- Wide operating temperature range from -40°C to +125°C
Out of stock
The QMI8658A utilizes advanced MEMS fabrication to deliver high-stability inertial sensing with minimal latency. Its digitally programmable sampling rates and on-chip filters allow for precise tuning of bandwidth and power consumption to match application requirements, from high-dynamic robotics to power-sensitive wearable devices.
Engineered for robustness, the sensor includes built-in motion detection algorithms for features like pedometer counting, tap sensing, and wake-on-motion, reducing host processor load. Its LGA-14 package and RoHS compliance ensure compatibility with automated assembly processes and modern electronic manufacturing standards.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 17 × 20 × 2 cm |
