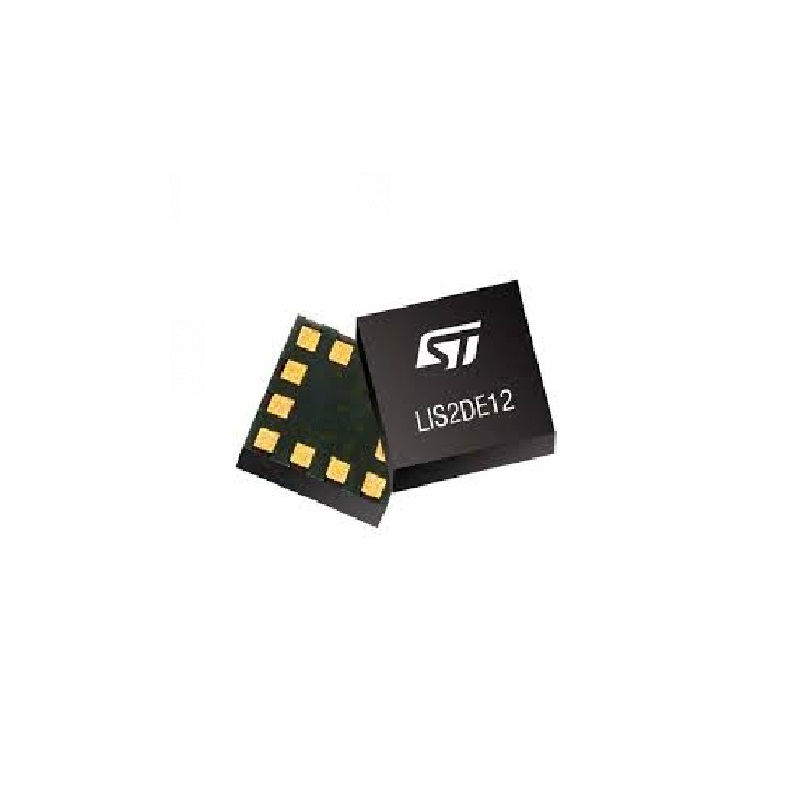

STMicroelectronics LIS2DE12TR LGA-12 3-Axis Accelerometer Sensor ROHS
The STMicroelectronics LIS2DE12TR is an ultra-low-power, high-performance 3-axis MEMS accelerometer in an LGA-12 package. It is compatible with 1.8V and 3.3V systems via I²C/SPI interfaces, offering programmable full-scale ranges from ±2g to ±16g for precise motion and orientation sensing.
Features
- Ultra-low power consumption down to 2 µA for battery-powered applications.
- Selectable full-scale acceleration ranges: ±2g, ±4g, ±8g, and ±16g.
- Integrated programmable interrupts for motion, free-fall, and 6D/4D orientation detection.
- Embedded 32-level FIFO buffer and temperature sensor.
- Wide supply voltage range from 1.71 V to 3.6 V with I²C/SPI digital interfaces.
Out of stock
The LIS2DE12TR is a MEMS-based 3-axis linear accelerometer engineered for high-resolution motion sensing with minimal power draw. Its advanced signal conditioning and digital output provide stable, low-noise acceleration data, making it ideal for power-sensitive designs.
Built with high shock resistance and an operating temperature range of -40°C to +85°C, this sensor is robust for demanding environments. The integrated sleep-to-wake and power-saving modes further optimize energy efficiency in portable and IoT devices.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 2 × 2 × 1 cm |
