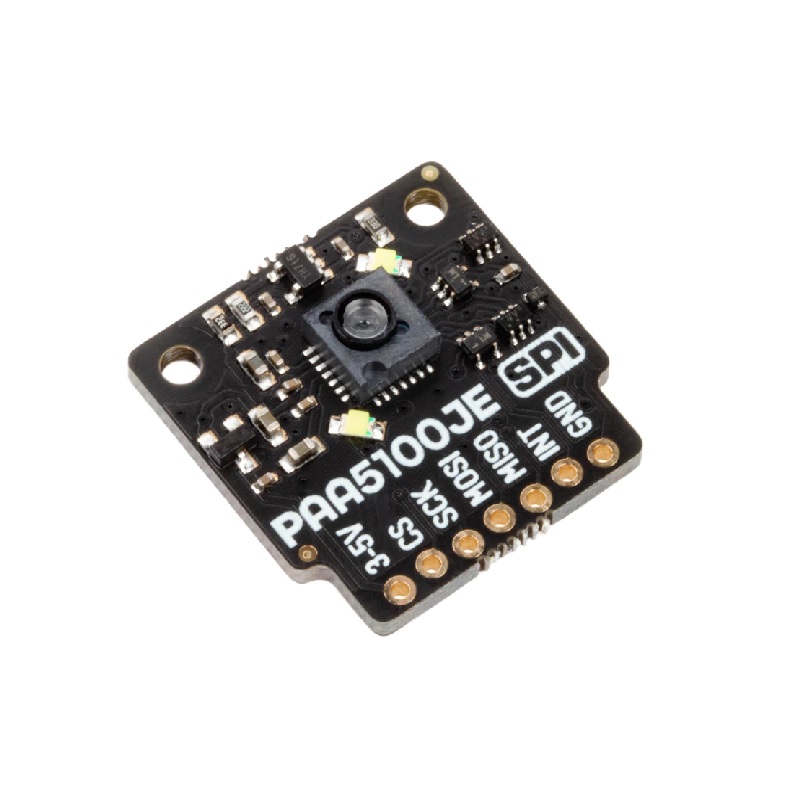

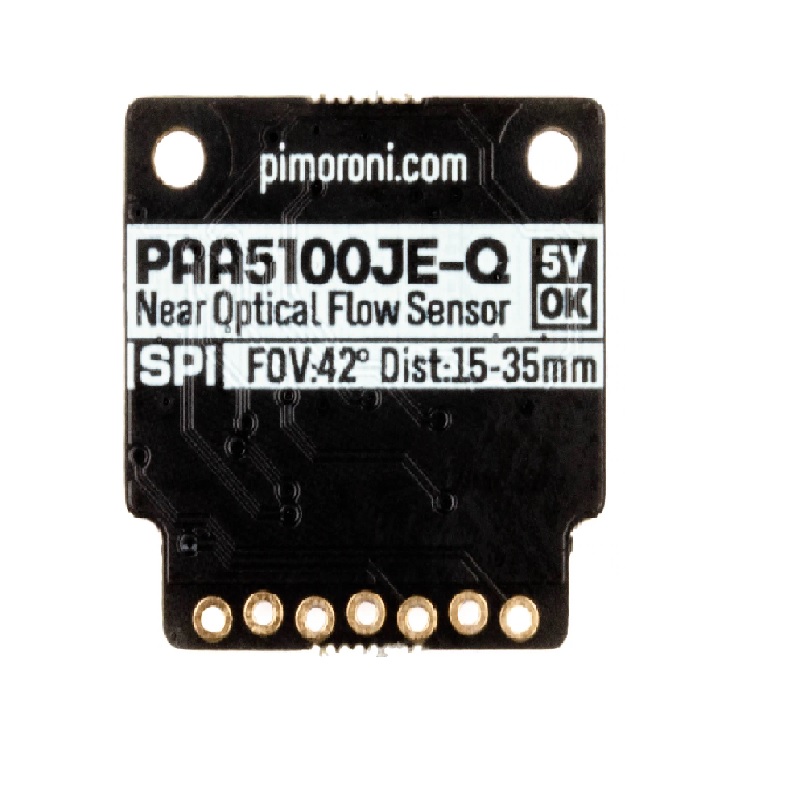

Pimoroni PAA5100JE Near Optical Flow SPI Breakout - 15-35mm Range, 242fps

The PAA5100JE sensor requires a stable 3.6V DC supply. It is critical to provide this voltage within specification to ensure accurate optical flow tracking and prevent damage to the sensitive imaging chip. The breakout board is designed for direct connection to 3.3V or 5V logic systems, but the sensor core itself must receive 3.6V.

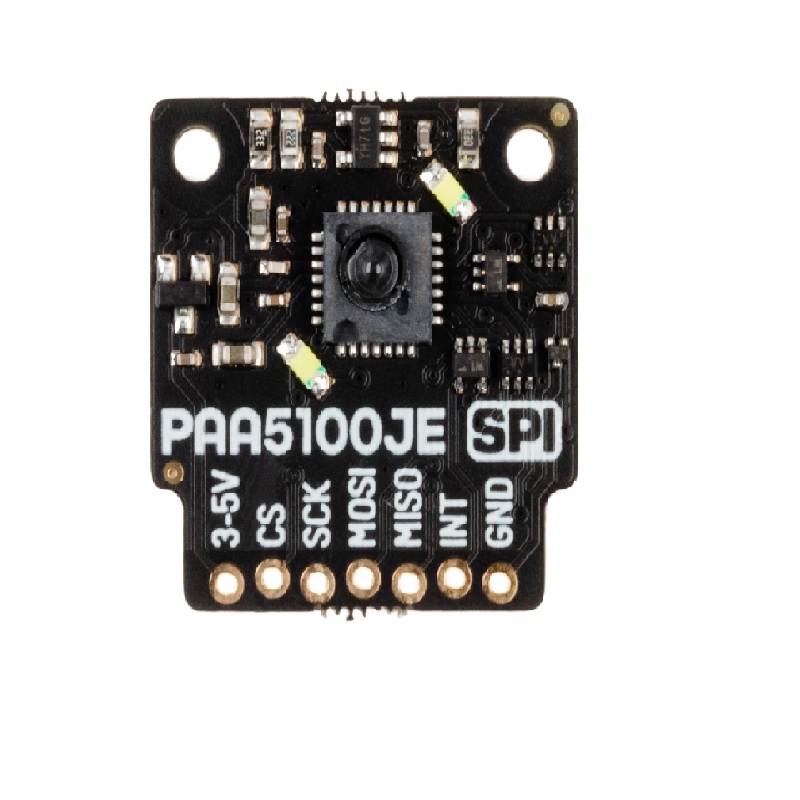

Communication is via a standard 4-wire SPI interface (MOSI, MISO, SCLK, CS) running at up to 2 MHz. The breakout provides clearly labeled pins for easy connection to microcontrollers like Raspberry Pi, Arduino, or ESP32. You will need to write firmware to read the 16-bit X and Y motion data registers and configure the sensor parameters.

The sensor is designed to work on a variety of common surfaces, including wood, tile, carpet, and paper, within its 15mm to 35mm working range. It requires external illumination (typically an integrated LED on the breakout) to detect surface texture patterns. Performance may vary on highly reflective, transparent, or featureless surfaces.

Yes, the PAA5100JE features a dedicated 'Motion Detect' output pin. This pin can be configured to go active (high or low) whenever the sensor detects movement above a certain threshold, allowing for interrupt-driven designs without constantly polling the SPI interface, which saves processor resources.

No lens focusing is required during the mounting process, simplifying assembly. Basic calibration in software is recommended to establish a baseline for the specific surface and working distance. This typically involves setting sensitivity parameters and reading the sensor's internal quality and shutter registers to optimize performance for your application.
