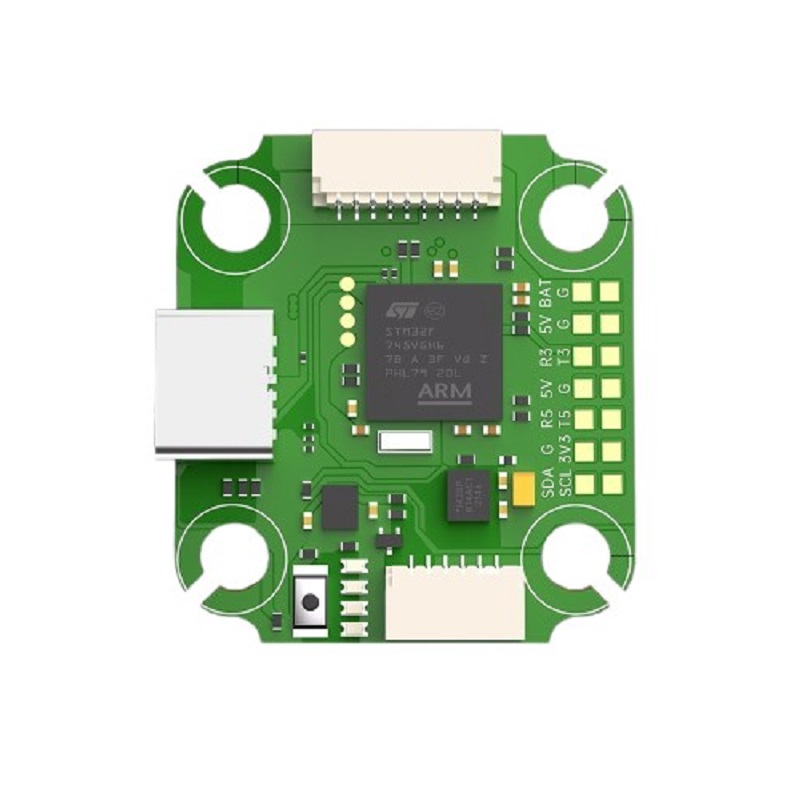

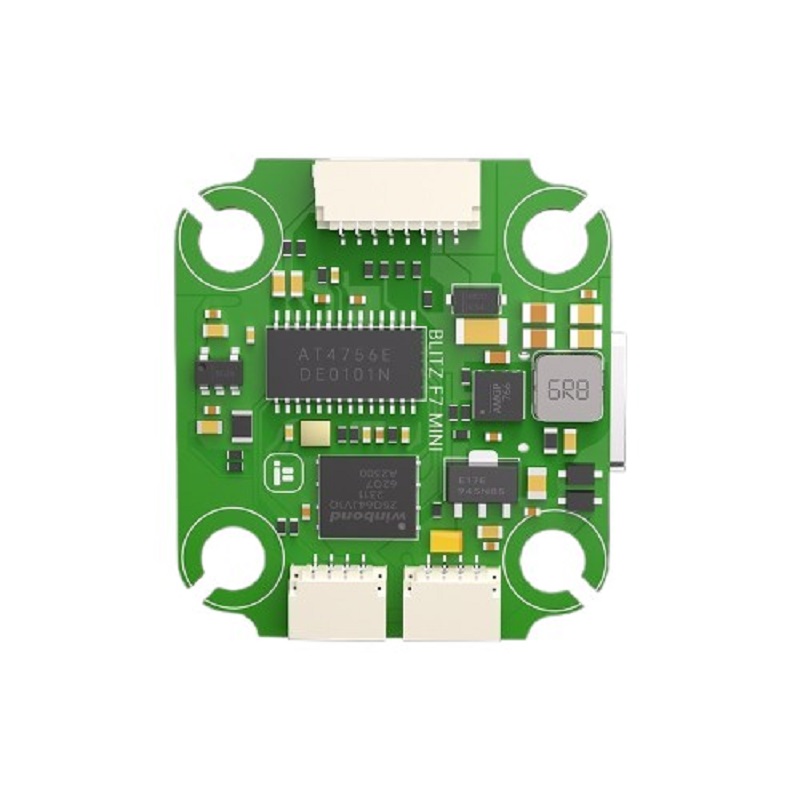

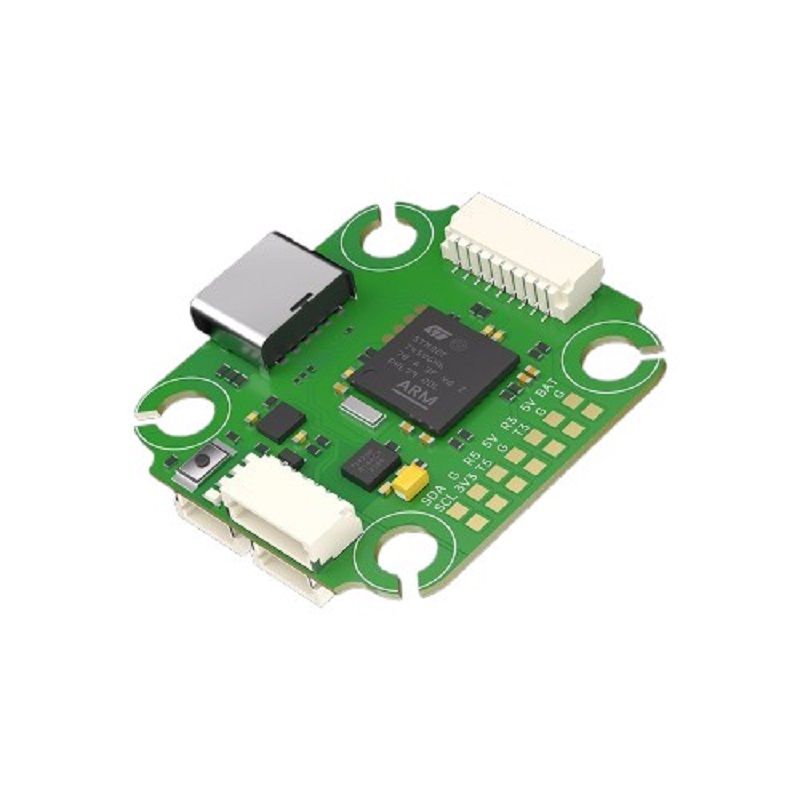

iFlight BLITZ Mini F745 Flight Controller
The iFlight BLITZ Mini F745 is a compact 20x20mm flight controller built around the powerful STM32F745 MCU and an ICM42688 gyro, designed for high-performance FPV drones and compatible with Betaflight, INAV, and ArduPilot firmware.
Features
- STM32F745 MCU delivers high-speed processing for advanced flight algorithms.
- ICM42688 gyroscope provides precise, low-noise attitude data for stable flight.
- Compact 20x20mm mounting pattern fits tight builds and micro drones.
- Integrated 5V/2A BEC powers peripherals like cameras and receivers.
- 16MB onboard flash memory for extensive Blackbox flight data logging.
Out of stock
The BLITZ Mini F745 flight controller is engineered for demanding FPV pilots requiring a robust and compact control hub. Its STM32F745 microcontroller provides ample processing headroom for complex filtering, PID loops, and peripheral management, ensuring smooth and responsive handling even in aggressive freestyle or racing scenarios.
This board integrates a high-performance ICM42688 gyro and a DPS310 barometer for accurate altitude hold and navigation functions. Multiple UART ports offer extensive connectivity for GPS modules, long-range receivers like Crossfire or ExpressLRS, and telemetry systems, making it suitable for both short-range acro and long-range exploration builds.
Additional Information
| Weight | 0.0048 kg |
|---|---|
| Dimensions | 3.05 × 2.7 cm |
