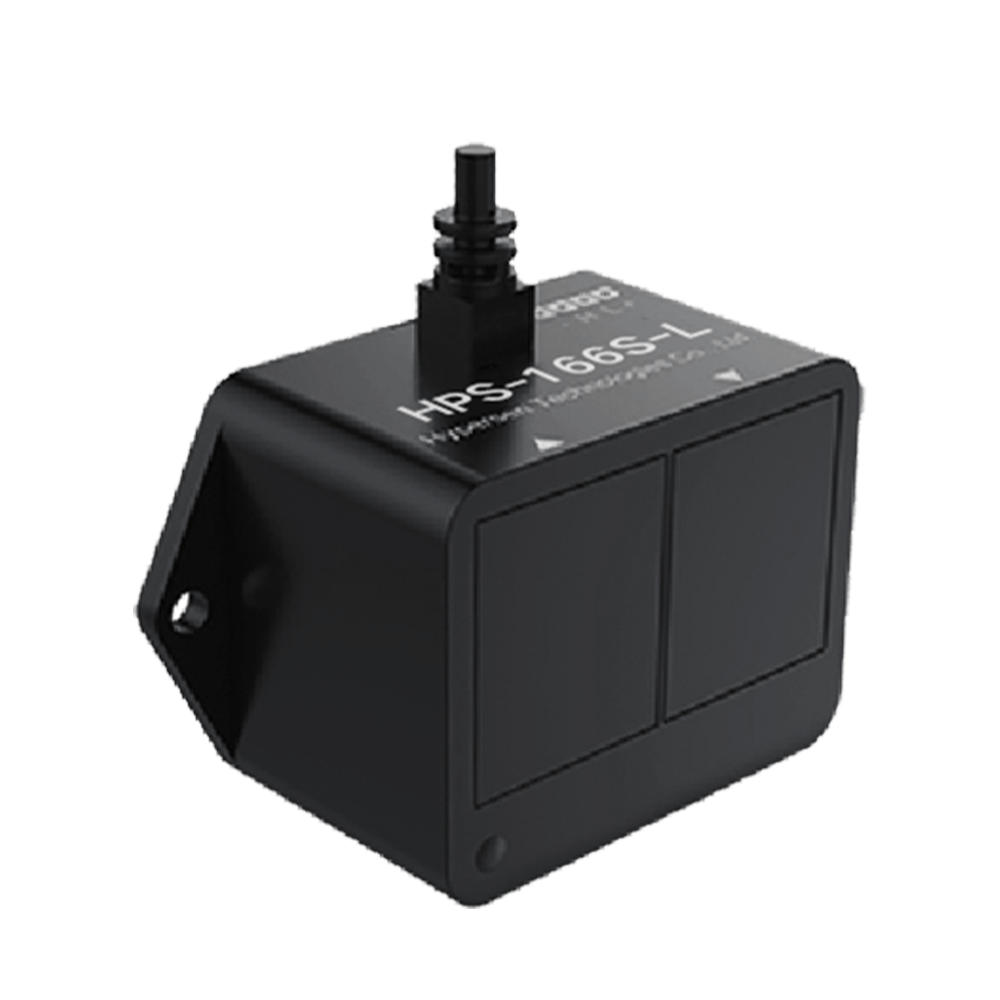

Hypersen HPS-166S-L ToF Ranging Sensor 25M Range 54Hz - RS485 Modbus Interface
The Hypersen HPS-166S-L is a high-precision Time-of-Flight (ToF) infrared ranging sensor designed for industrial automation and drone applications. It provides reliable distance measurements up to 25 meters via a robust RS485 Modbus interface, compatible with PLCs, industrial controllers, and embedded systems like Raspberry Pi and Arduino with appropriate adapters.
Features
- VCSEL Laser Emitter with ±1.8° narrow beam for precise long-range detection up to 25 meters.
- RS485 Modbus communication interface for robust, noise-immune data transmission in industrial environments.
- Advanced compensation algorithms for ambient light, temperature, and target color to ensure measurement stability.
- Robust, waterproof housing constructed from ABS plastic and aviation-grade aluminum for durability.
- Configurable adaptive output data rate from 6Hz to 54Hz to balance speed and power consumption.
Out of stock
The HPS-166S-L utilizes Time-of-Flight (ToF) technology with a VCSEL laser source to calculate distance by measuring the round-trip time of a reflected infrared pulse. This method provides high accuracy and a strong signal-to-noise ratio, even in challenging lighting conditions. Integrated signal processing includes real-time compensation for environmental variables such as ambient infrared light and internal temperature drift.
Encased in a sealed, waterproof shell, the sensor is built to withstand demanding industrial and outdoor applications. Its RS485 Modbus interface ensures reliable communication over long distances, making it suitable for integration into distributed sensor networks, automated guided vehicles (AGVs), and unmanned aerial systems (UAS) for functions like altitude holding and obstacle avoidance.
Additional Information
| Weight | 0.027 kg |
|---|---|

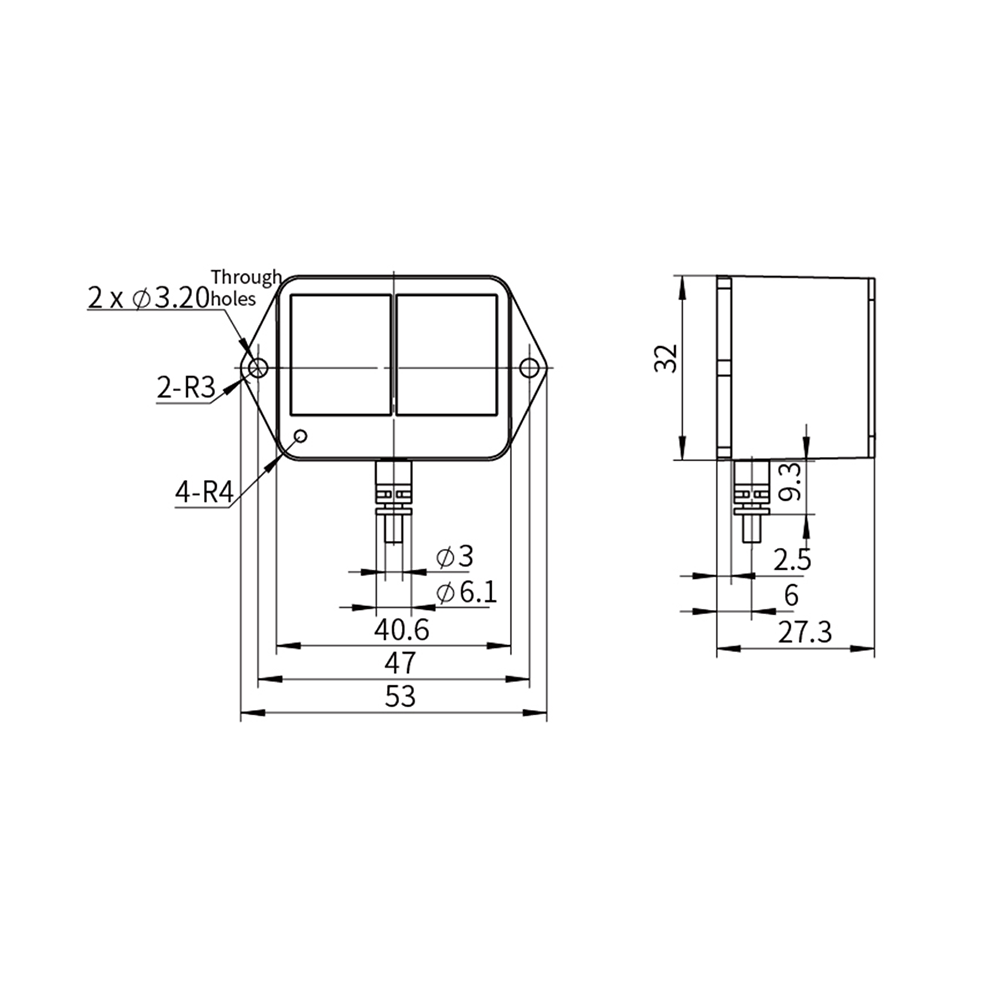

| Dimensions | 5.3 × 3.2 × 2.65 cm |
