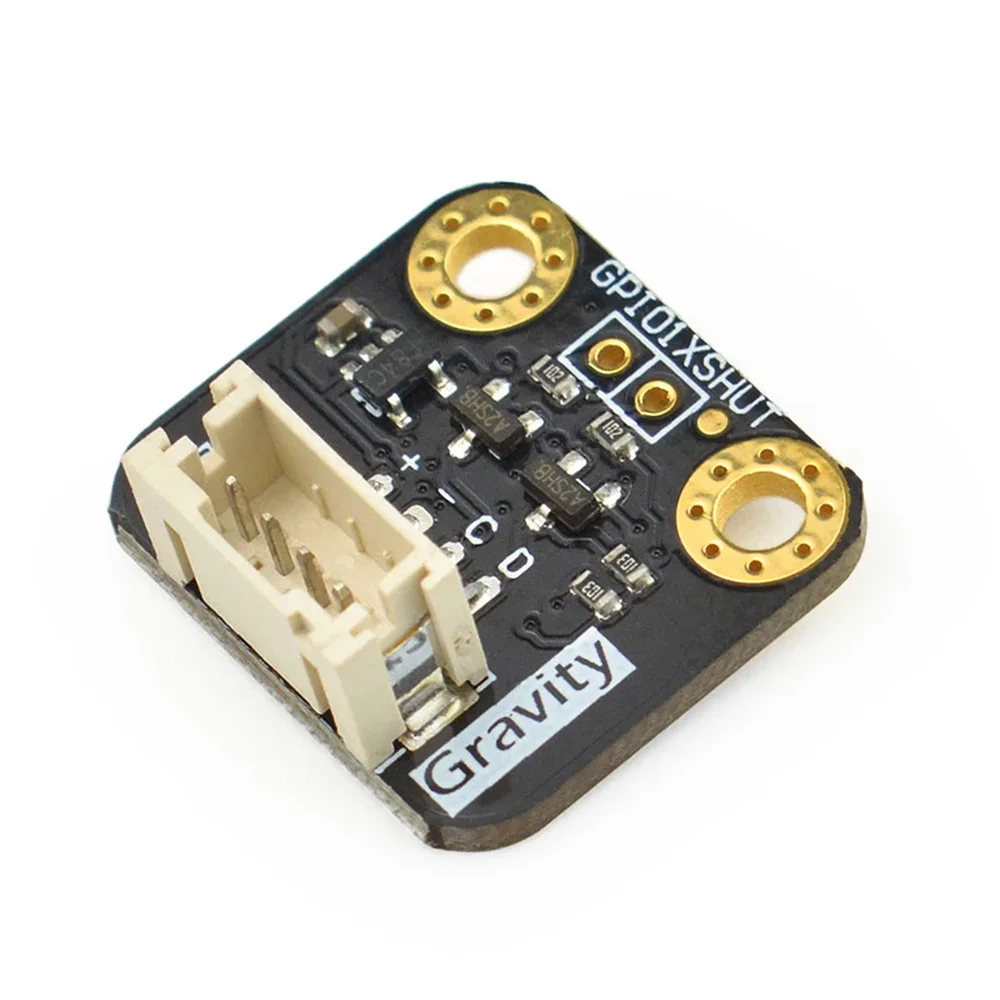

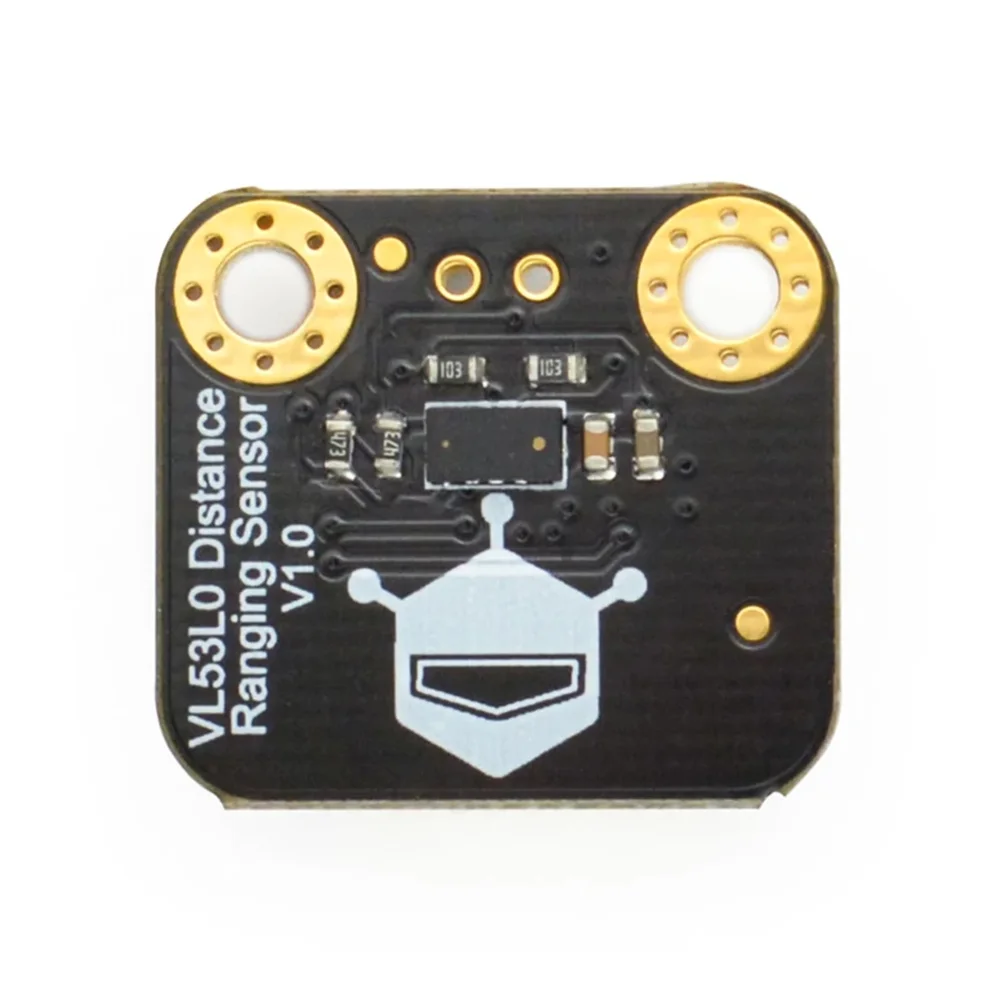

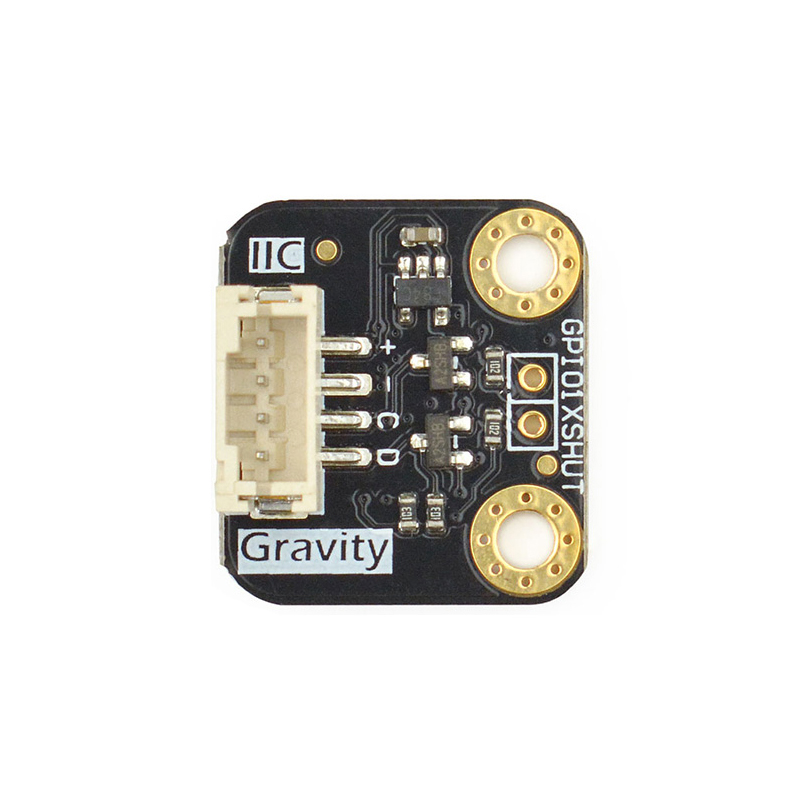

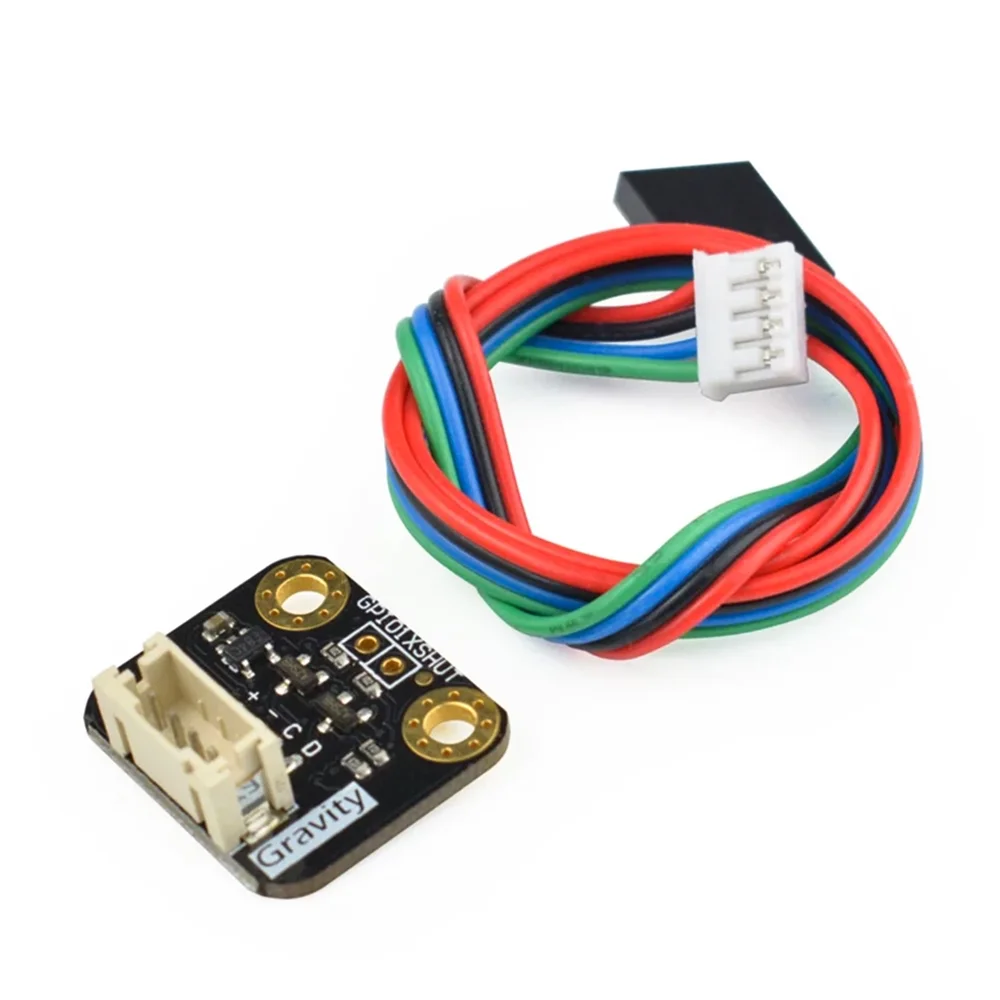

DFRobot Gravity VL53L0X ToF Laser Distance Sensor (30-2000mm) - I2C Interface
The DFRobot Gravity VL53L0X is a high-precision Time-of-Flight (ToF) laser distance sensor module with a 30mm to 2000mm range, designed for plug-and-play integration via its Gravity I2C interface. It operates from 3.3V to 5V logic levels, making it compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers for robotics, drones, and automation projects.
Features
- Time-of-Flight (ToF) laser ranging from 30mm to 2000mm with ±3% accuracy.
- Gravity-series I2C interface for plug-and-play connectivity with 3.3V/5V microcontrollers.
- 940nm invisible VCSEL laser emitter with integrated IR filter for ambient light immunity.
- Fast measurement rate under 30ms, suitable for real-time navigation and obstacle avoidance.

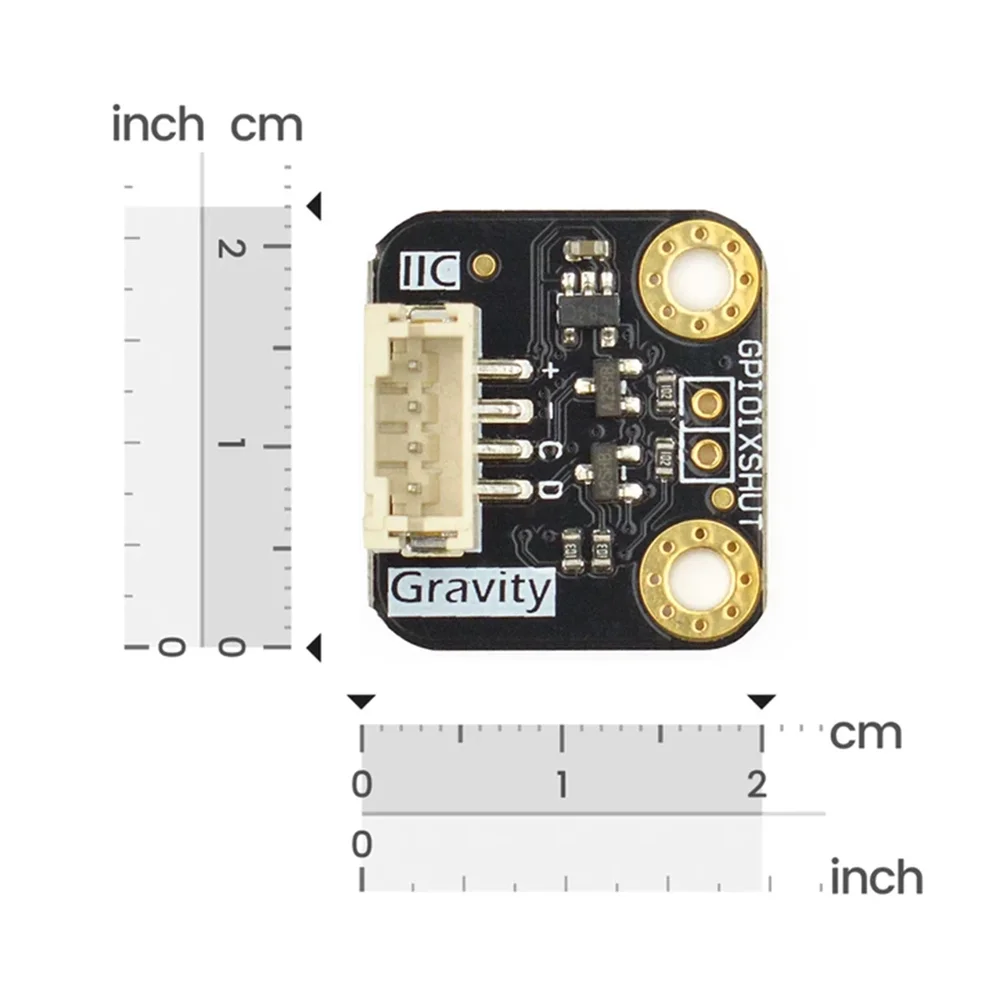

- Compact 20x22mm PCB footprint with a wide -20°C to 70°C operating temperature range.
Out of stock
The VL53L0X sensor utilizes STMicroelectronics’ advanced Time-of-Flight (ToF) technology, measuring the round-trip time of a modulated 940nm laser beam to calculate distance with high precision. This method provides immunity to target color and reflectivity variations that affect traditional infrared or ultrasonic sensors. The module includes on-board signal conditioning and a Gravity-standard I2C interface for simplified wiring and communication.
Engineered for embedded systems, the sensor features a compact form factor and a wide operating voltage range of 3.3V to 5V DC, ensuring compatibility with a broad spectrum of development platforms. Its low power consumption profile, with a standby current of just 5µA, makes it suitable for battery-powered applications. The integrated infrared filter minimizes interference from ambient light, ensuring stable performance in diverse lighting conditions.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 2.5 × 2.2 cm |
