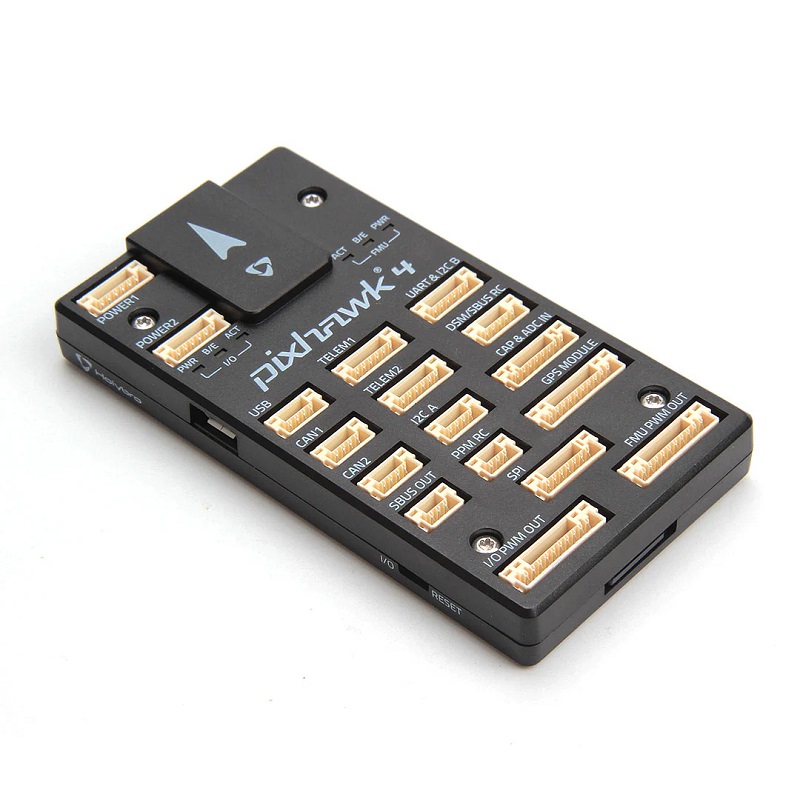

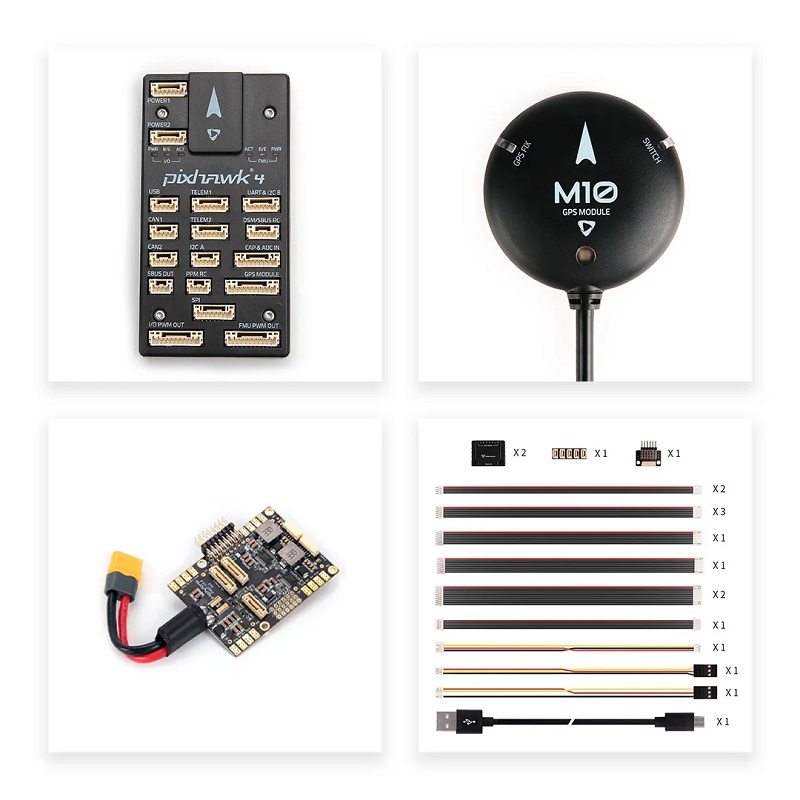

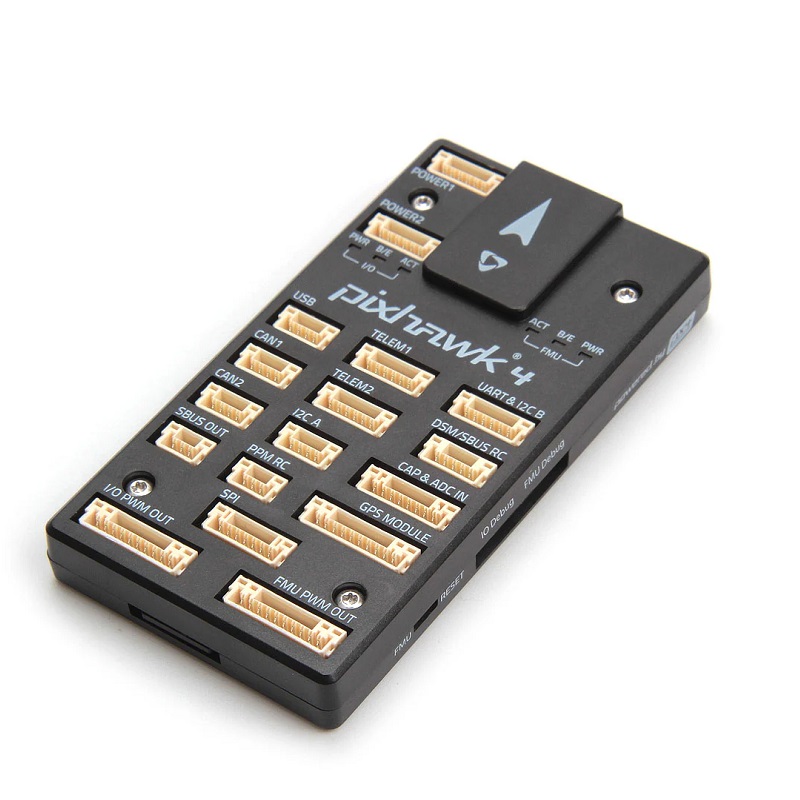

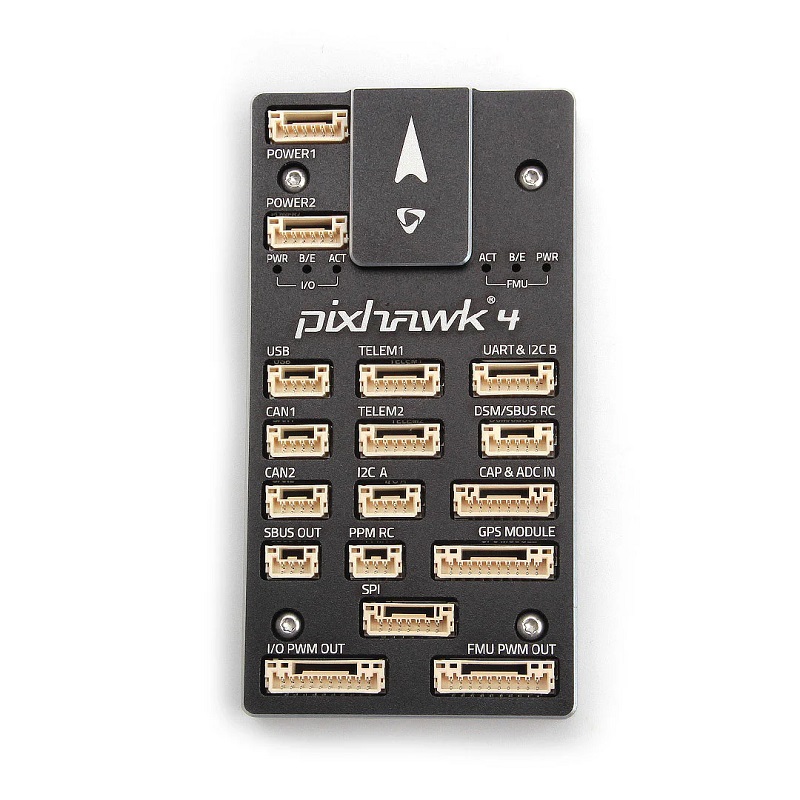

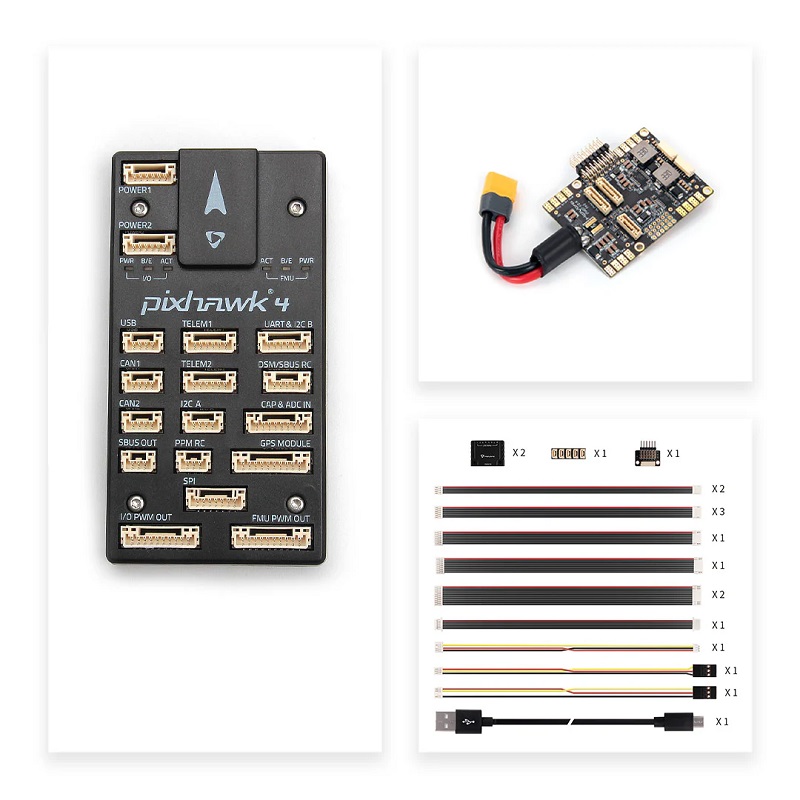

Holybro Pixhawk 4 Flight Controller & PM07 14S Power Module & M10 GPS Set
The Holybro Pixhawk 4 is a professional-grade flight controller paired with a PM07 14S power module and an M10 GPS module, designed for advanced UAV and robotic applications. It runs the PX4/ArduPilot firmware on a powerful STM32F765 processor, offering robust sensor fusion and precise navigation capabilities.
Features
- High-performance STM32F765 main processor with 2MB flash and 512KB RAM for complex algorithms.
- Includes PM07 power module supporting up to 14S LiPo batteries for high-voltage drone systems.
- Integrated M10 GPS module provides high-precision positioning and navigation.
- Advanced sensor suite includes ICM-20689 gyro/accel, BMI055, and IST8310 magnetometer.
- Features vibration isolation and multiple I2C/SPI buses for sensor and payload expansion.
Out of stock
The Holybro Pixhawk 4 builds upon the proven Pixhawk architecture with a more compact form factor and significantly enhanced computational resources. Its dual-processor design, featuring an STM32F765 main flight controller and auxiliary STM32F103/F100 I/O processors, ensures reliable real-time performance for autonomous vehicles. The integrated vibration damping system improves IMU data accuracy, leading to superior flight stabilization.
This set is configured for immediate deployment, including the PM07 power module which handles high-current, high-voltage inputs up to 14S, and the M10 GPS module for centimeter-level positioning accuracy. The extensive connectivity options, including four I2C buses and two SPI buses, allow for seamless integration of additional peripherals like telemetry radios, optical flow sensors, or companion computers, making it ideal for complex research, commercial, and industrial drone platforms.
Additional Information
| Weight | 0.254 kg |
|---|---|
| Dimensions | 9 × 14 × 7 cm |
