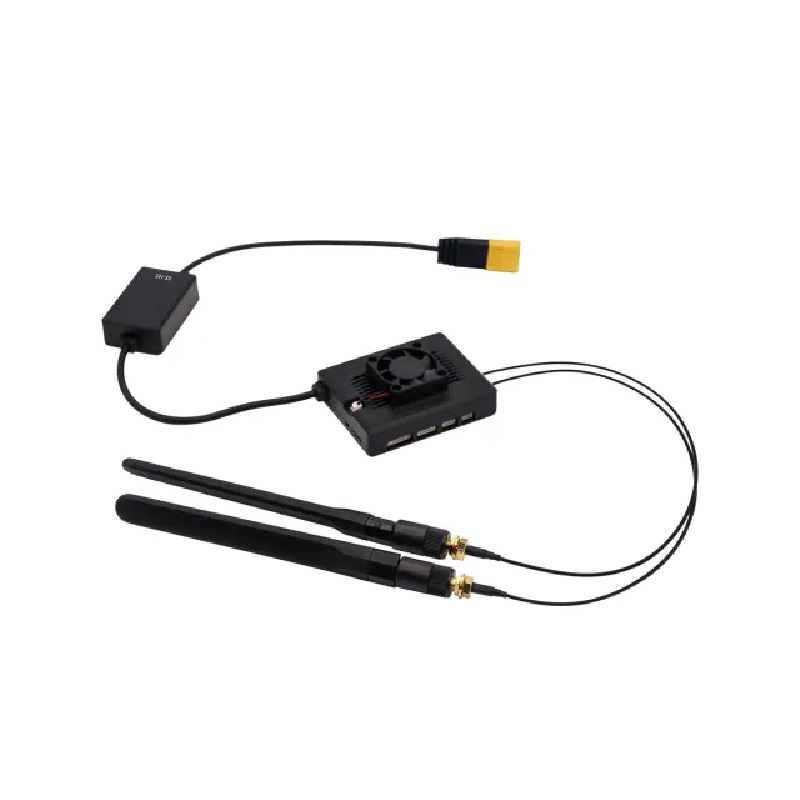

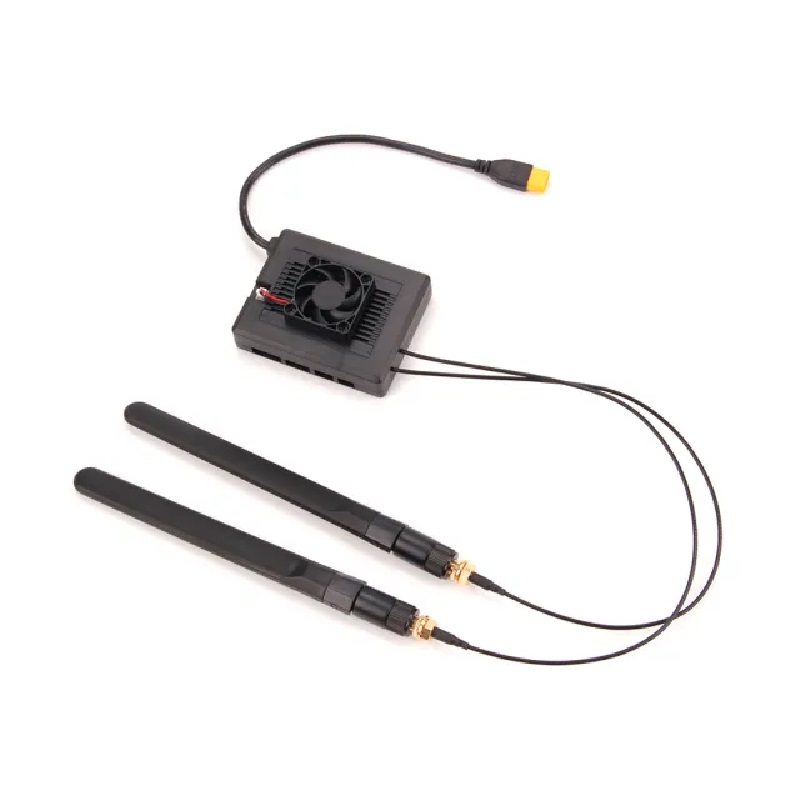

SIYI HM30 MK32 Dual Air Unit with Long Range Full HD Image Transmission SBUS PWM Ethernet Mavlink Telemetry Datalink
The SIYI HM30 MK32 Dual Air Unit is a professional-grade digital HD video and telemetry datalink system, engineered for long-range FPV and autonomous drone operations. It integrates 1080p HD video transmission with SBUS, PWM, Ethernet, and Mavlink telemetry interfaces, compatible with PIX-series flight controllers for advanced mission control.
Features
- Long-Range 1080p HD Digital Video Transmission with up to 30km operational range.
- Dual-Channel Data Link integrates SBUS (16CH), PWM (5CH), Ethernet, and Mavlink telemetry protocols.
- Wide Voltage Input of 11-16.8V (3S-4S LiPo) for flexible power system integration.
- Compact and Lightweight Design measuring 70x55mm and weighing only 50g for minimal payload impact.
- Professional-Grade Encryption and interference-resistant technology for secure, reliable data links.
Out of stock
The HM30 MK32 Dual Air Unit is a high-integration communication hub designed for demanding aerial platforms. It combines a full HD digital video downlink with a robust bidirectional telemetry and control datalink, enabling real-time video feed, flight telemetry, and RC control over a single, encrypted RF link. Its architecture is optimized for low latency and high reliability in complex RF environments.
Engineered with a focus on system integration, the unit features native support for Pixhawk autopilots via Mavlink and Ethernet, alongside direct SBUS and PWM outputs for flight controller and gimbal control. The compact metal housing provides effective EMI shielding and thermal management, ensuring stable operation during extended flights. This unit is a cornerstone for professional mapping, inspection, and long-range FPV drone builds requiring simultaneous high-definition vision and command-and-control data streams.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 7 × 5.5 cm |
