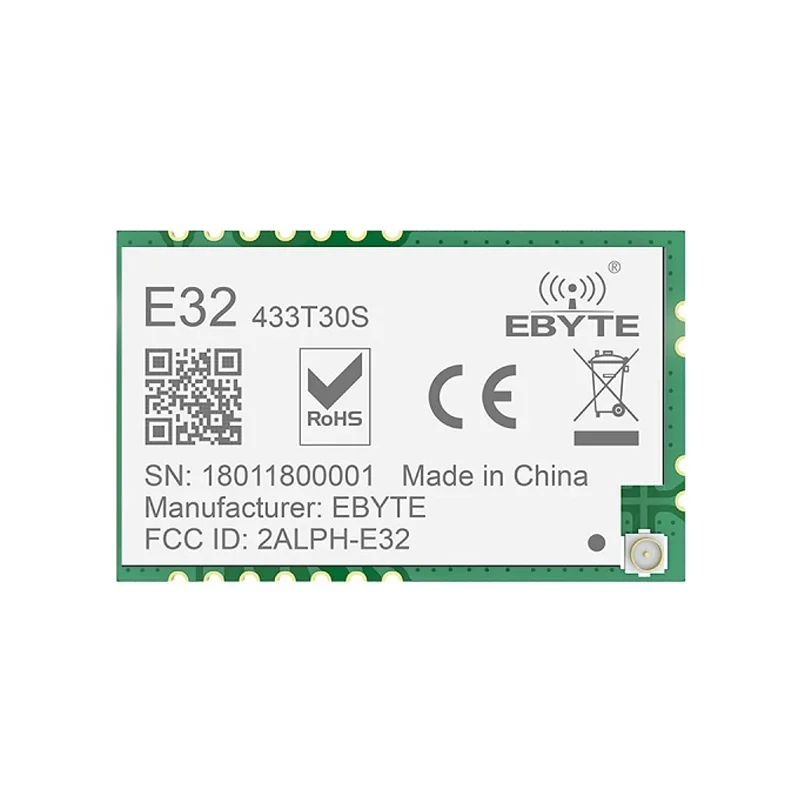

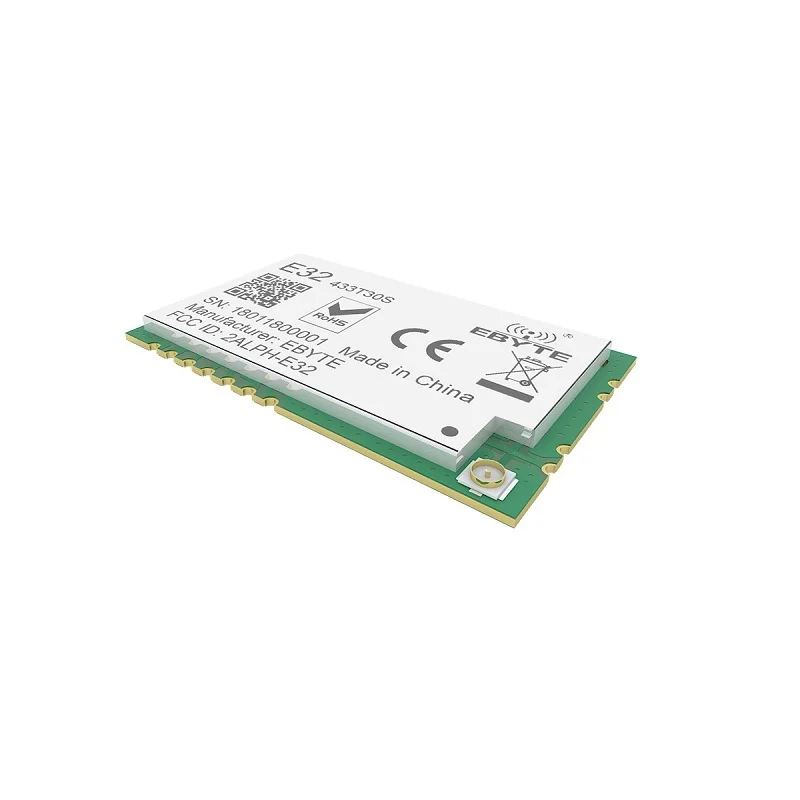

EByte E32-433T30S 433MHz LoRa SX1278 Transceiver Module
The EByte E32-433T30S is a 433MHz LoRa RF transceiver module based on the Semtech SX1278 chip, offering up to 8km range and 30dBm output power. It interfaces via UART for straightforward integration with microcontrollers like Arduino, ESP32, or STM32 for long-range, low-power IoT sensor networks.
Features
- Long-Range LoRa Transceiver: Features the Semtech SX1278 chipset for robust communication up to 8km (5 miles) in open areas, ideal for remote telemetry.
- High-Power 433MHz Operation: Delivers 30dBm (1W) RF output power on the 433MHz ISM band for excellent signal penetration and range.
- Simple UART Interface: Communicates via serial UART (TTL) with configurable baud rates, enabling easy connection to most microcontrollers without complex RF design.
- Low-Power Consumption: Leverages LoRa modulation for energy-efficient operation, supporting extended battery life in periodic transmission applications.
- SMD Form Factor: Compact, surface-mount module design facilitates integration into custom PCBs for volume production and embedded systems.
Out of stock
The EByte E32-433T30S is a professional-grade LoRa transceiver module engineered for demanding long-range wireless links. At its core is the industry-standard Semtech SX1278 spread-spectrum modem, which provides exceptional receiver sensitivity and interference immunity, far surpassing traditional FSK/OOK modules. Operating in the 433MHz license-free ISM band, this module is optimized for regional use where its longer wavelength offers superior non-line-of-sight propagation compared to higher frequencies.
Architected for system integrators, the module handles all complex RF timing, packetization, and forward error correction internally. Developers interact through a simple serial command set over its UART interface, allowing rapid deployment of bi-directional communication links. The integrated +30dBm power amplifier ensures maximum effective radiated power, while configurable transmission modes enable a balance between range, data rate, and power consumption for applications like remote sensor aggregation, industrial telemetry, and automated meter reading networks.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 6 × 7 × 3 cm |
