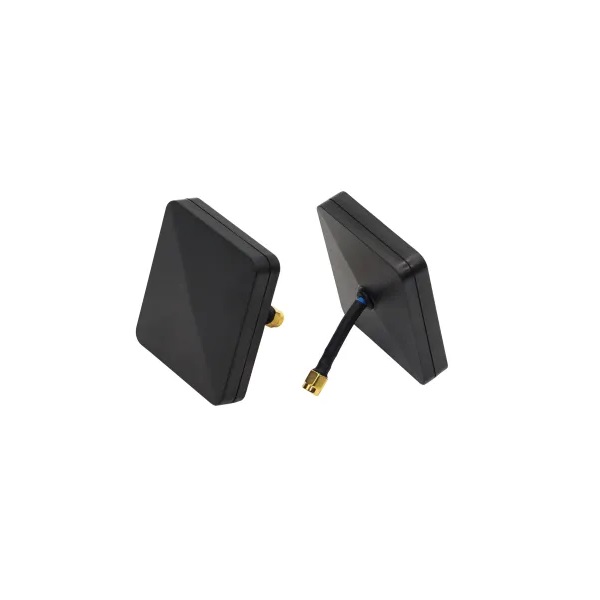

SIYI MK15 MK32 Long Range Antenna 14dB Directional Patch Antenna
SKU: DRFC-2124
📋 GST Invoice Available

SIYI MK15 MK32 Long Range Antenna 14dB Directional Patch Antenna

₹4,449.00 (Inclusive of all taxes)
Out of Stock

The SIYI MK15 MK32 is a high-gain 14dB directional patch antenna engineered for long-range FPV telemetry and video transmission systems, providing focused signal strength and reduced interference for enhanced communication link reliability.

Features

  • High-performance 14dB directional patch antenna for extended signal range and clarity.
  • Focused beam pattern minimizes multi-path interference and maximizes forward signal strength.
  • 50-ohm impedance ensures compatibility with standard SMA/RP-SMA RF connectors and transceivers.
  • Robust construction designed for reliable operation in demanding aerial and ground station environments.
  • Optimized for SIYI MK15 and MK32 systems, as well as other long-range telemetry and video links.

Out of stock

Description

The SIYI MK15 MK32 Long Range Antenna is a purpose-built directional patch antenna designed to significantly extend the operational range and signal integrity of FPV telemetry and video downlink systems. Its 14dB gain provides a substantial boost in effective radiated power (ERP) and receiver sensitivity, which is critical for maintaining stable communication links over kilometers.

Engineered with a directional radiation pattern, this antenna focuses transmission and reception energy into a primary lobe, reducing susceptibility to noise and interference from off-axis sources. This makes it ideal for fixed-point ground stations or directional tracking setups where the antenna can be aimed toward the aircraft. The durable housing protects the internal radiating elements from physical and environmental stress, ensuring consistent performance.

Key Features

  • 14dB High Gain: Delivers a significant signal amplification for maximum communication range and penetration.
  • Directional Patch Design: Concentrates RF energy in a focused beamwidth for superior signal-to-noise ratio and reduced interference.
  • 50-Ohm Standard Impedance: Ensures seamless integration with most RF transmitters, receivers, and coaxial cabling without impedance mismatch losses.
  • Durable Enclosure: Built with a rugged casing to withstand vibration, minor impacts, and varying weather conditions typical in field operations.
  • Optimized for Long-Range Systems: Specifically tuned for compatibility with SIYI's MK-series and other high-performance telemetry/FPV systems requiring stable, long-distance links.
  • Low-Profile Form Factor: Compact design facilitates easy mounting on tripods, vehicle roofs, or portable ground station panels.

Applications

  • Ground station directional antenna for long-range SIYI MK15/MK32 telemetry and HD video systems.
  • Fixed-wing and VTOL UAV FPV/telemetry links requiring kilometers of reliable control and data transmission.
  • Directional signal enhancement for mapping, surveying, and inspection drones operating beyond visual line of sight (BVLOS).
  • Portable field communication setups where a high-gain, focused antenna improves link margin in noisy RF environments.
  • Supplemental antenna for signal repeaters or relay stations to extend the operational footprint of a drone control network.

Technical Specifications

Item TypeAntenna
Gain14dB
Antenna TypeDirectional Patch Antenna
Impedance50 ohms
Shipping Weight0.081 kg
Shipping Dimensions27 × 19 × 6 cm

Frequently Asked Questions

What is the primary advantage of a directional patch antenna like the SIYI MK15/MK32?

The primary advantage is its focused radiation pattern, which concentrates signal energy in a specific direction. This provides significantly higher gain and range in that direction while rejecting interference and noise from other angles, making it ideal for point-to-point long-range FPV and telemetry links where the aircraft's position is known.

Is this antenna compatible with video transmitters (VTX) and receivers from other brands?

Yes, it is compatible with any RF system using standard 50-ohm impedance and an SMA or RP-SMA connector, provided the frequency range is supported. While optimized for SIYI systems, it can be used with other 1.2GHz, 2.4GHz, or 5.8GHz telemetry/video equipment, but you must verify the antenna is tuned for your specific operating frequency band.

How should I mount and align this directional antenna for best performance?

For optimal performance, mount the antenna on a stable tripod or mast with the flat patch surface facing the expected flight path. It should be aimed directly at the aircraft, often requiring a manual tracker or pan/tilt mechanism for moving targets. Proper alignment is critical to stay within the antenna's narrower beamwidth and maximize the 14dB gain benefit.

Package Includes

  • 1 x SIYI MK15 MK32 Long Range Antenna 14dB Directional Patch Antenna

Additional Information

Weight 0.081 kg
Dimensions 27 × 19 × 6 cm
