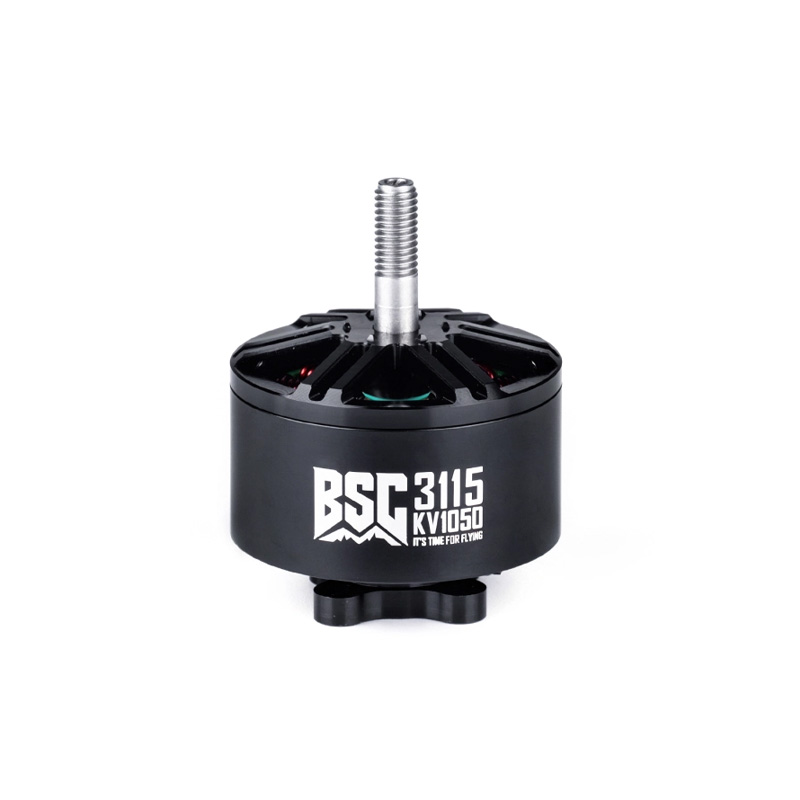

MAD Components Components BSC 3115 V1.0 1050KV 6S Brushless Motor - M5 Nut

Name: MAD Components Components BSC 3115 V1.0 1050KV 6S Brushless Motor - M5 Nut
Brand: MAD Components
SKU: DRFC-2810
Price: 5829.00 INR
Availability: OutOfStock

₹5,829.00 (Inclusive of all taxes)

Out of Stock

The MAD Components Components BSC 3115 V1.0 is a 1050KV brushless motor engineered for 6S LiPo power systems, delivering up to 4 kgf of thrust for high-performance long-range and endurance FPV drone builds. Its 12N14P stator configuration ensures smooth, efficient operation and enhanced torque response.

Features

1050KV rating optimized for 6S LiPo voltage (22.2V nominal) for efficient long-range flight.
Delivers a maximum thrust of 4000 grams (4 kgf) for powerful lift and responsive control.
12N14P (12 stator slots, 14 magnet poles) design for smooth operation and high torque.
Robust construction with M5 threaded propeller mounting for secure attachment.
High power handling with a maximum rating of 1836.5W and 76.7A current.

Out of stock

Get Notified When Available

Description

The MAD Components BSC 3115 V1.0 motor is engineered for demanding FPV applications where a balance of power, efficiency, and smoothness is critical. Its 1050KV rating makes it ideally suited for 6S LiPo setups on medium to large propeller sizes, targeting long-range cruising and endurance flights rather than ultra-high-RPM racing. The internal 12N14P magnetic configuration provides a significant reduction in cogging torque, resulting in buttery-smooth rotation and precise throttle control across the entire power band.

Built with a focus on thermal and electrical efficiency, the motor features low internal resistance (22.3 mΩ) to minimize wasted energy as heat, directly contributing to extended flight times. The robust mechanical design, including a precision-balanced rotor (≤5 mg), ensures reliable performance under the sustained loads of freestyle and long-duration flight profiles. The M5 threaded shaft offers a secure and straightforward mounting solution for a wide range of propellers.

Key Features

Optimized KV for 6S: 1050KV rating is perfectly matched for 6S LiPo voltage, providing efficient RPM and torque for larger props.
High-Torque 12N14P Design: 12-slot stator and 14-pole rotor configuration delivers exceptional smoothness and low-speed torque control.
High Power Density: Capable of handling bursts up to 1836.5W (76.7A), offering substantial overhead for aggressive maneuvers.
Precision Dynamic Balance: Rotor balanced to ≤5 mg for minimal vibration, leading to smoother video and reduced frame stress.
Low Internal Resistance: 22.3 mΩ resistance maximizes electrical efficiency, reducing heat buildup and extending motor life.
Durable Construction: Built with high-quality bearings and materials to withstand the rigors of FPV flying.
Standard M5 Mounting: Threaded M5 shaft allows for direct and secure propeller attachment without additional hardware.

Applications

7-inch long-range and endurance FPV drones requiring efficient 6S power.
Heavy-lift cinematic drones and mapping platforms where smooth, efficient thrust is paramount.
Large freestyle quads (6-7 inch) where a balance of power and flight time is desired.
Custom multirotor builds for aerial photography and payload carrying.

Technical Specifications

Motor Model	MAD Components BSC 3115 V1.0
Motor KV (RPM/V)	1050 KV
Motor Type	Brushless Outrunner
Stator Size	31mm x 15mm
Motor Dimensions (Dia. x Ht.)	27 mm × 32.3 mm
Max. Continuous Power	1836.5 W
Max. Continuous Current	76.7 A
Maximum Thrust	4000 g (4 kgf)
No-load Current (@10V)	1.92 A
Internal Resistance (Phase-Phase)	22.3 mΩ
Pole Configuration	12N14P (12 Slots / 14 Poles)
Propeller Mount	M5 Threaded Shaft
Recommended Voltage	6S LiPo (22.2V Nominal)
Rotor Balance	≤ 5 mg

Frequently Asked Questions

What size propeller is recommended for the MAD Components BSC 3115 1050KV motor on 6S?

For optimal efficiency and thrust on a 6S LiPo, this 1050KV motor pairs best with larger, slower-pitch propellers in the 7-inch to 8-inch diameter range (e.g., 7x4, 7x5, or 8x4.5). This combination maximizes flight time for long-range and endurance applications while providing ample thrust.

What is the maximum current and power this motor can handle?

The MAD Components BSC 3115 is rated for a maximum continuous current of 76.7A, corresponding to a power handling of approximately 1836.5W on a 6S pack. It is crucial to pair it with ESCs rated for at least this current, with a 20% overhead (e.g., 90A+ ESCs) recommended for reliable operation.

Does this motor come with a cross-mounting pattern, and what is the shaft thread size?

The product specifications indicate an M5 threaded shaft for direct propeller mounting. The provided data does not specify a bolt-hole cross-mounting pattern (e.g., 16x19mm or 25x25mm). Please consult the manufacturer's official documentation or product images for the exact mounting hole pattern dimensions.
