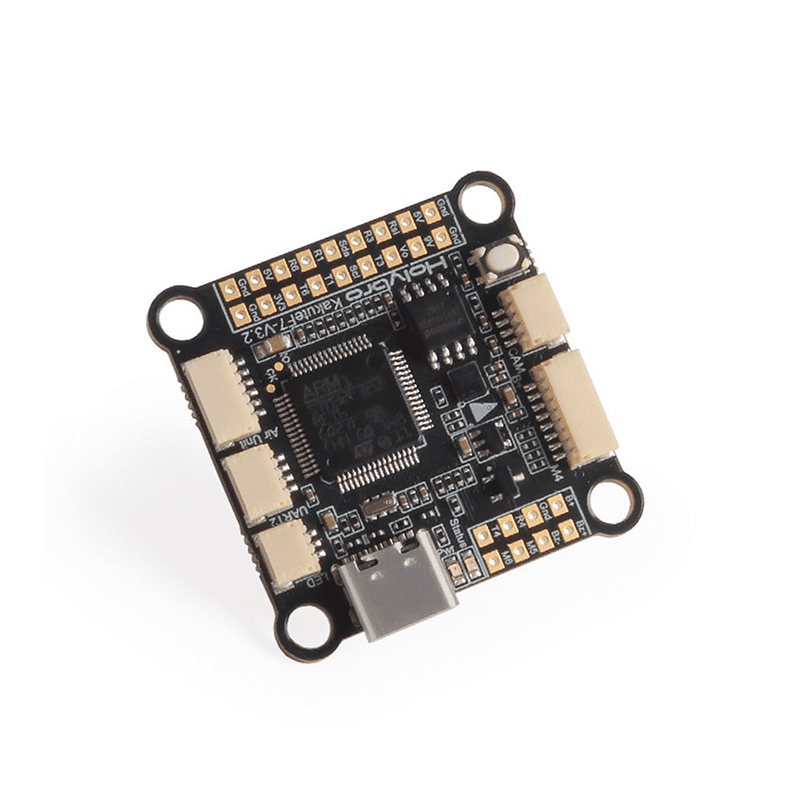

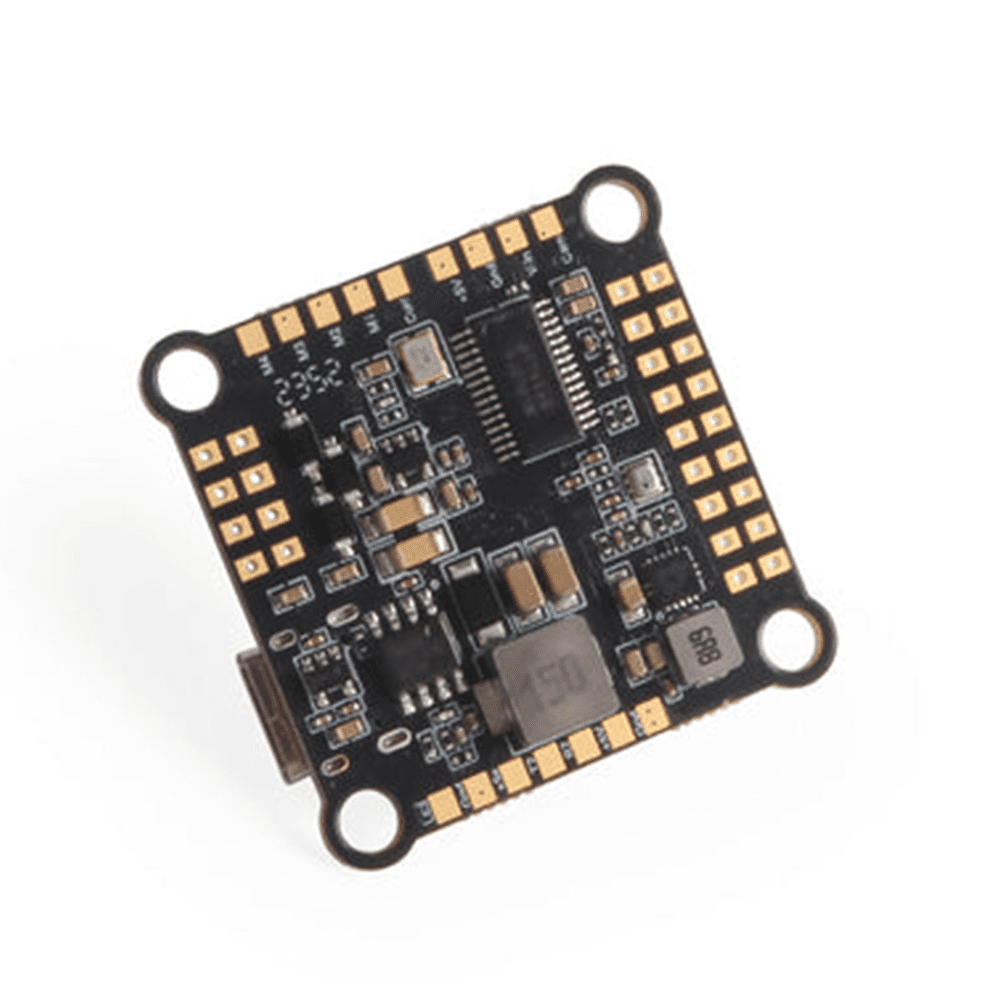

Holybro Kakute F722 Flight Controller
The Holybro Kakute F722 is a high-performance flight controller built around the STM32F722 MCU, designed for advanced FPV racing, freestyle, and long-range drones. It features an ICM42688-P gyro, BMP280 barometer, and supports 3S to 8S LiPo input with robust 9V/3A and 5V/2A BEC outputs for reliable system power.
Features
- STM32F722 32-bit MCU (216MHz, 512KB Flash, 256KB RAM) for high-speed flight control processing.
- ICM42688-P SPI gyroscope with independent low-noise power supply for precise motion sensing.
- Supports 3S to 8S LiPo input voltage with high-power synchronous rectifier BEC (9V/3A & 5V/2A).
- Integrated AT7456E analog video OSD and 16MB onboard blackbox logging for flight data analysis.
- 30.5×30.5mm mounting pattern with 5 hardware UARTs for extensive peripheral connectivity.
Out of stock
The Kakute F722 flight controller leverages the computational power of the STM32F722 microcontroller to deliver responsive and stable flight characteristics for demanding FPV applications. Its advanced sensor suite, including the SPI-based ICM42688-P IMU and BMP280 barometer, provides accurate attitude and altitude data essential for acrobatic maneuvers and autonomous flight modes.
Engineered for durability and integration, the board features a robust power delivery system capable of handling up to 8S battery input, making it suitable for high-voltage powertrains. The comprehensive I/O layout, including dedicated ports for digital and analog video transmitters, receivers, and ESCs, simplifies wiring in complex builds while maintaining a clean installation.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 7 × 7 × 3 cm |
