Gyrfalcon HX711-1 Dual-Channel 24-Bit Precision Load Cell Amplifier Module
The Gyrfalcon HX711-1 is a dual-channel 24-bit precision ADC amplifier module designed for high-accuracy weight and force measurement systems. It interfaces directly with bridge-type sensors like load cells and strain gauges, offering programmable gain and low-noise performance for Arduino, Raspberry Pi, and industrial embedded applications.
Features
- Dual-channel 24-bit high-resolution analog-to-digital converter (ADC)
- Channel A programmable gain of 64 or 128 for ultra-low signal measurement
- Channel B fixed gain of 32 for secondary sensor input
- Low-noise on-chip programmable gain amplifier (PGA) and integrated power regulator
- Selectable 10 SPS or 80 SPS output data rate for speed vs. noise optimization
Out of stock

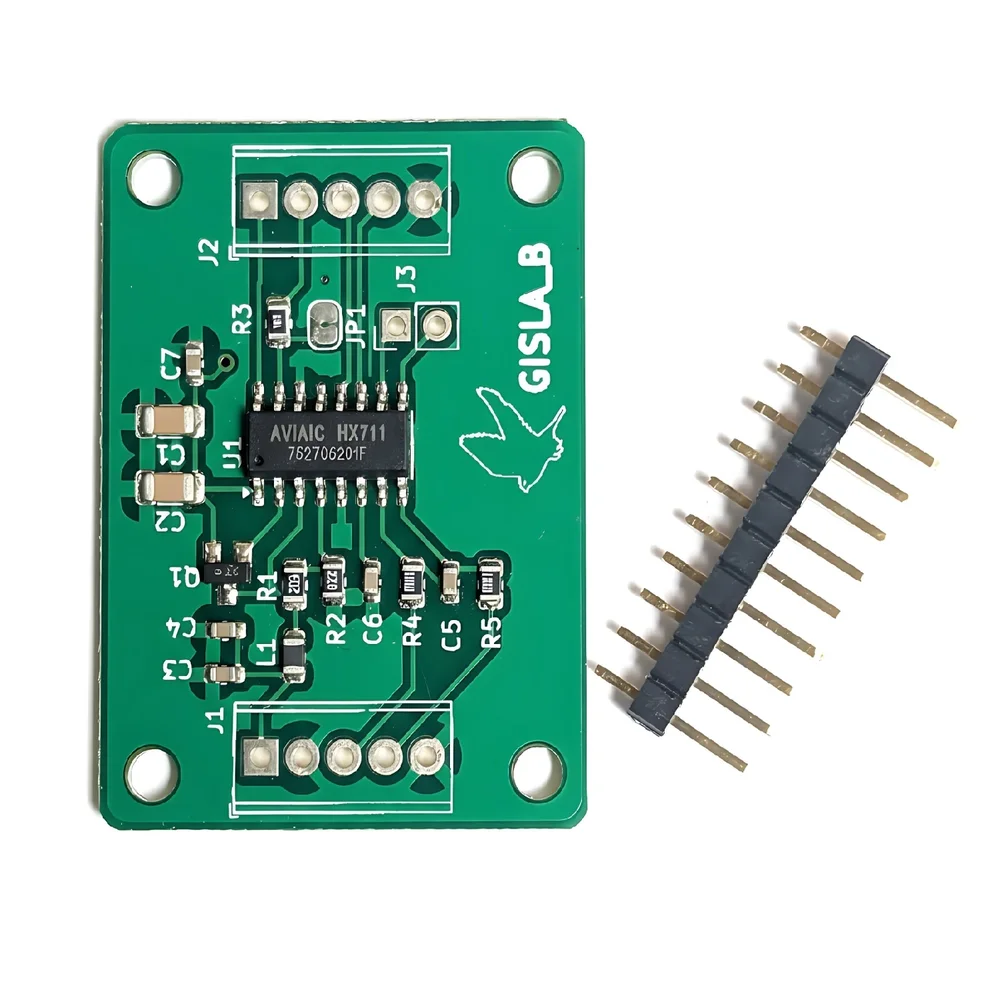

The Gyrfalcon HX711-1 module is engineered around the HX711 integrated circuit, providing a complete signal conditioning solution for resistive bridge sensors. It amplifies and digitizes the small differential signals from load cells and strain gauges, converting them into a stable digital output via a simple serial interface. The on-chip low-noise PGA, internal oscillator, and power-on reset circuitry ensure precise, drift-free measurements with minimal external components.
Operating from a wide 2.6V to 5.5V supply, the module is compatible with both 3.3V and 5V logic systems, making it suitable for integration into portable scales, industrial process control, and embedded force-sensing projects. Its dual-channel architecture allows for simultaneous monitoring of two sensors or the use of a tare function.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 4.1 × 3.1 cm |
