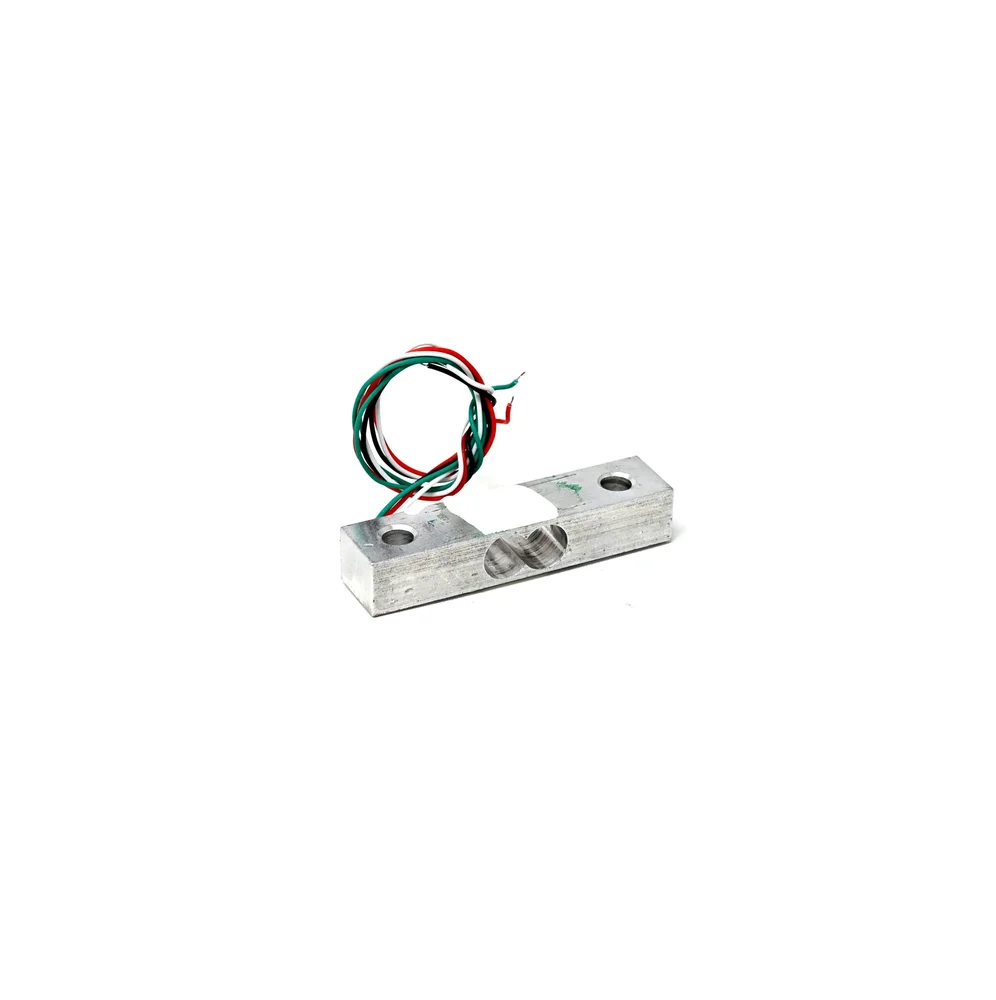

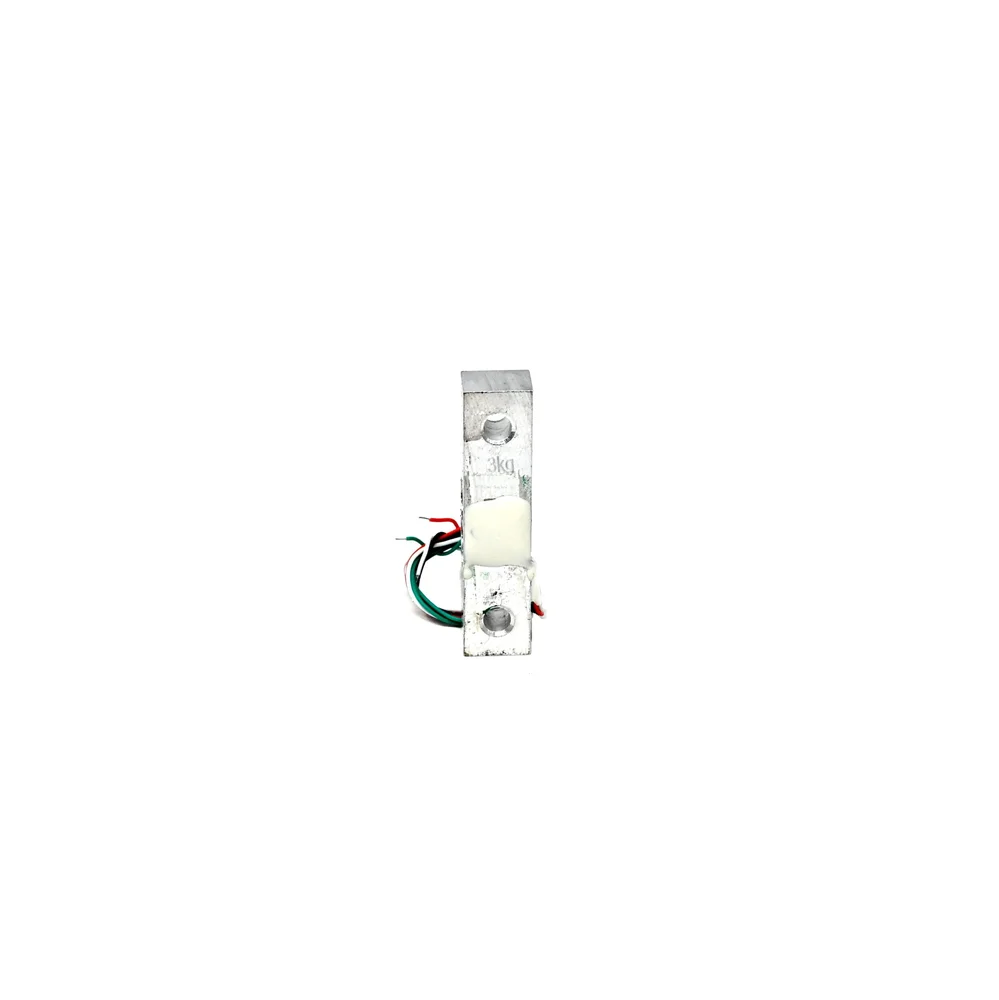

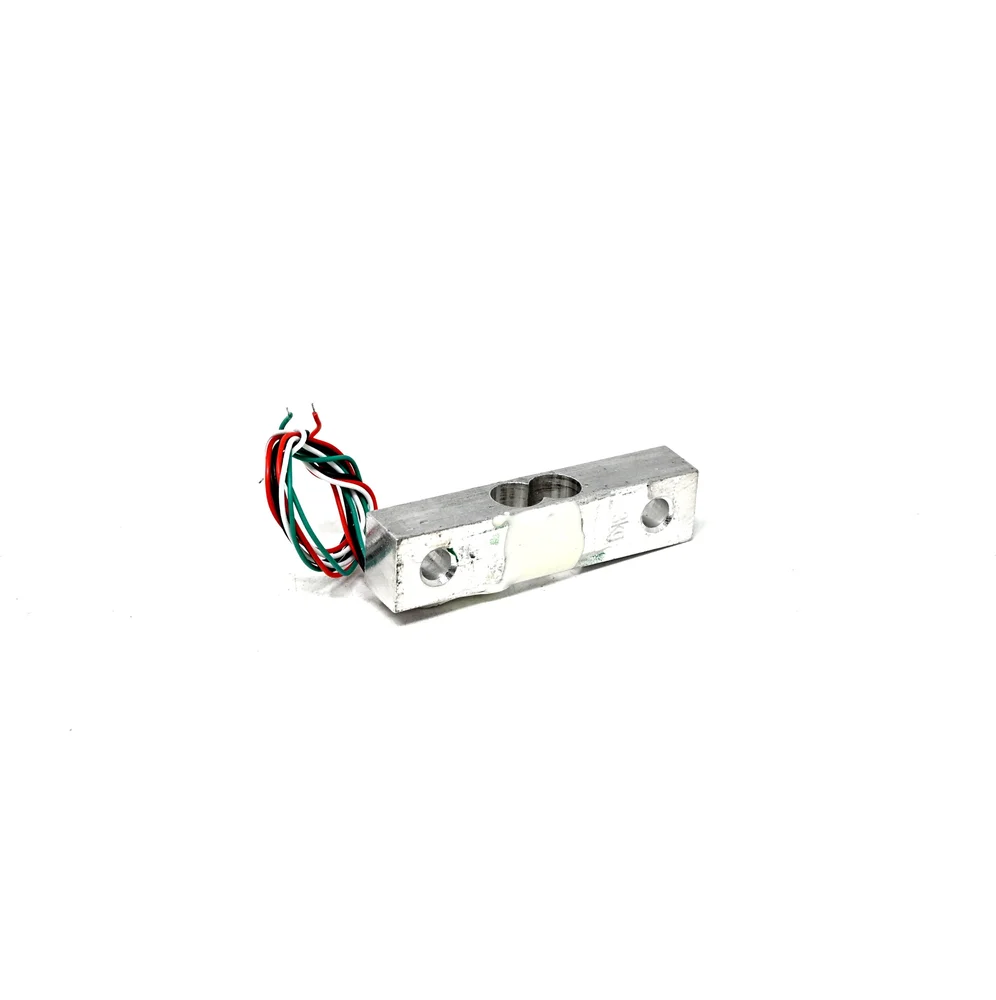

Phaeton B05 Load Cell Sensor 2-3KG - Screw-Fastened Strain Gauge
The Phaeton B05 is a compact, screw-fastened strain gauge load cell designed for precise weight measurement up to 3 kg, featuring a 1.0 mV/V sensitivity output compatible with standard instrumentation amplifiers and industrial weighing systems.
Features
- Precision strain gauge load cell with a 2-3 kg (approx. 20-30 N) measurement range.
- High output sensitivity of 1.0±0.1 mV/V for accurate signal conditioning.
- Screw-fastened, compact aluminum alloy construction for robust and stable installation.
- Low nonlinearity of ≤0.03% F.S. ensures reliable, repeatable measurements.
- Standard 4-wire (Red/Green/Black/White) connection for easy integration with bridge amplifiers.
Out of stock
The Phaeton B05 load cell operates on the principle of a bonded metallic strain gauge. When a force is applied to the sensor’s sensing element, it causes a minute deformation, which changes the electrical resistance of the strain gauge. This change in resistance is proportional to the applied load and is output as a millivolt-level signal relative to the excitation voltage.
Designed for stability, the sensor features a compact, screw-fastened aluminum alloy body that minimizes mechanical creep and provides a secure mounting solution. Its high sensitivity and low nonlinearity make it suitable for applications requiring precise weight or force measurement within a limited space envelope.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 9 × 7 × 3 cm |
