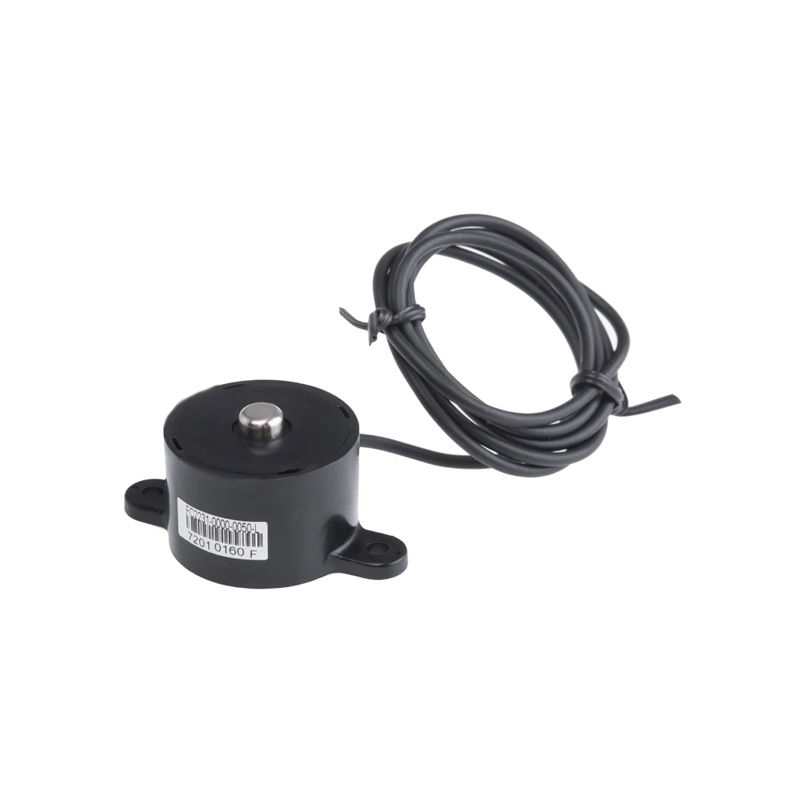

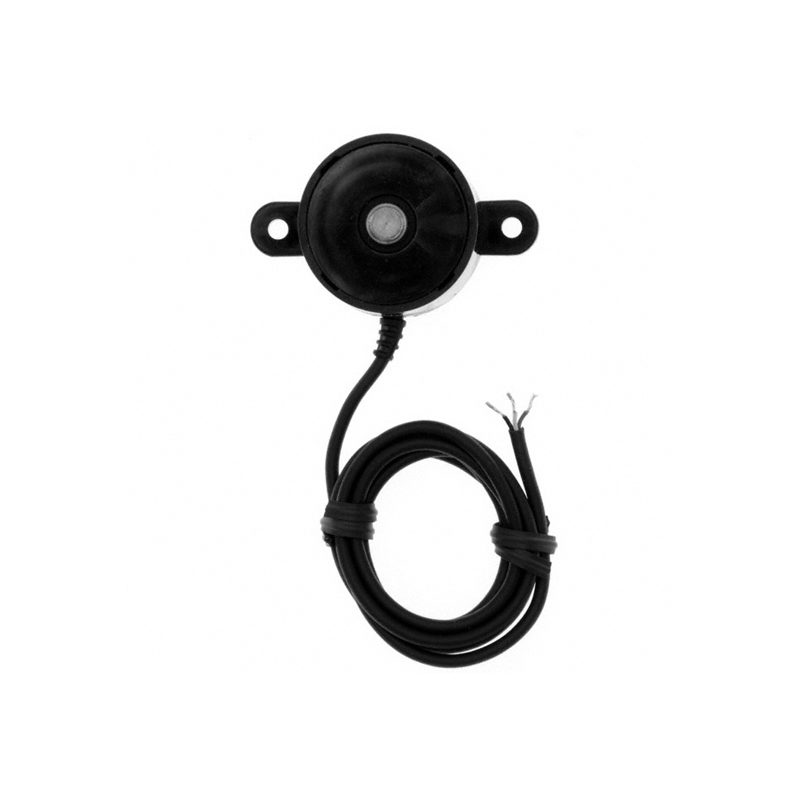

TE Connectivity FC2231-0000-0050-L Load Cell – Mid Range Compression, 50 lb, 5V, 0.5-4.5V Output
The TE Connectivity FC2231-0000-0050-L is a compact, mid-range compression load cell designed for precise force measurement up to 50 lb (22.68 kg). Operating on a 5V DC supply, it provides a ratiometric analog output (0.5-4.5V) and is engineered for reliable performance in industrial automation, robotics, and medical devices across a wide -40°C to +85°C temperature range.
Features
- Compression force measurement up to 50 lb (22.68 kg) capacity.
- Ratiometric analog voltage output (0.5-4.5V) for direct ADC interfacing.
- Wide operating temperature range from -40°C to +85°C.
- Compact, solid-state design with internal signal conditioning.
- Low power consumption with 5V DC excitation voltage.
Out of stock
The FC2231-0000-0050-L load cell from TE Connectivity’s FC22 Series utilizes a robust strain gauge sensing element to deliver precise and repeatable compression force measurements. Its solid-state construction and integrated signal conditioning provide a stable, temperature-compensated analog output signal, minimizing the need for external amplification in many applications.
Engineered for durability, this sensor features a rugged package capable of withstanding harsh environmental conditions, making it suitable for both laboratory testing and demanding field deployments. The factory calibration ensures accuracy and simplifies integration into OEM systems requiring reliable force feedback.
Additional Information
| Weight | 0.019 kg |
|---|---|
| Dimensions | 6 × 6 × 4 cm |
