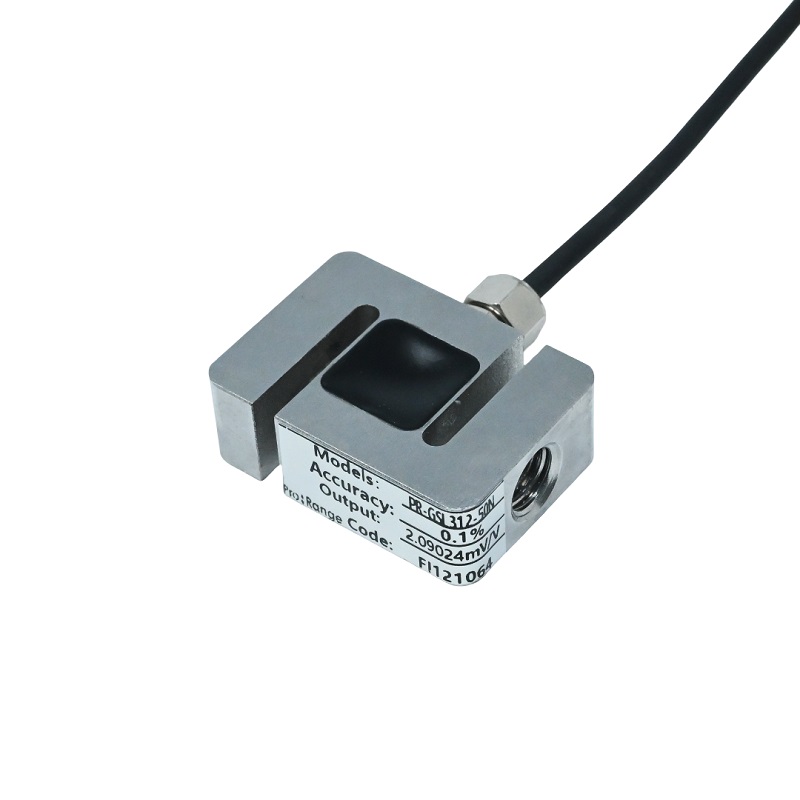

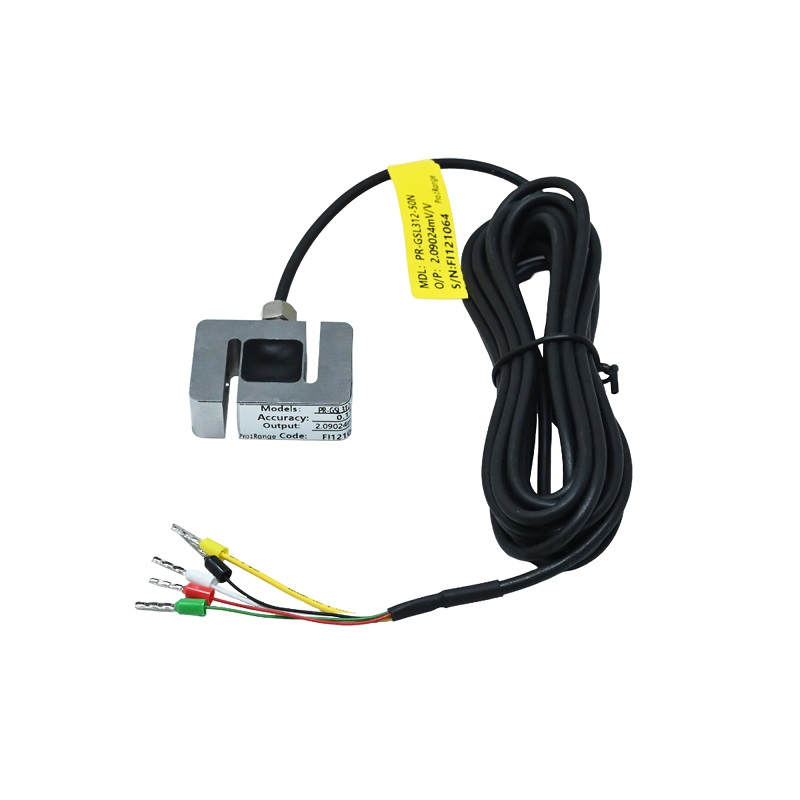

Pro-Range GSL312 5Kg Miniature S-Type Tension and Compression Load Cell Sensor ±0.1%F.S, 2.0mV/V, 12VDC
The Pro-Range GSL312 is a miniature S-Type load cell designed for precise bi-directional force measurement up to 5 kg, featuring a 2.0mV/V output and 12VDC excitation. Its compact stainless steel construction and threaded mounting holes make it ideal for integration into automated weighing systems, process control, and force feedback applications with Arduino, PLCs, or industrial DAQ systems.
Features
- Bi-directional S-Type load cell rated for 5 kg tension and compression with ±0.1% F.S accuracy.
- Stainless steel construction ensures durability and corrosion resistance for industrial environments.
- Compact miniature form factor (35mm x 25mm) for installation in space-constrained applications.
- Features 2.0mV/V output sensitivity and 350Ω impedance for stable signal conditioning.
- Includes threaded mounting holes on both ends for easy inline integration into hoppers, tanks, or lever mechanisms.
Out of stock
The Pro-Range GSL312 utilizes a precision strain gauge arrangement within its S-shaped stainless steel structure to convert applied force into a proportional electrical signal. This bi-directional design allows for accurate measurement in both tension and compression modes, delivering a stable 2.0mV/V output when excited by a 12VDC supply. The sensor’s high-grade stainless steel housing provides robust protection against mechanical stress and environmental corrosion.
Signal conditioning is required to amplify the low-level millivolt output for use with microcontrollers like Arduino or industrial PLCs. The load cell’s 350Ω impedance and low hysteresis ensure reliable, repeatable measurements suitable for automated weighing, process control, and structural force monitoring in demanding applications.
Additional Information
| Weight | 0.097 kg |
|---|---|
| Dimensions | 3.5 × 2.5 cm |
