SOP SOPLY-102-50KG Load Cell Sensor 50kg Capacity Alloy Steel - 2.0mV/V Output, 2m Cable
SOP SOPLY-102-50KG Load Cell Sensor 50kg Capacity Alloy Steel - 2.0mV/V Output, 2m Cable - Image 2
SKU: SENS-1536
📋 GST Invoice Available

SOP SOPLY-102-50KG Load Cell Sensor 50kg Capacity Alloy Steel - 2.0mV/V Output, 2m Cable

₹4,019.00 (Inclusive of all taxes)
Out of Stock

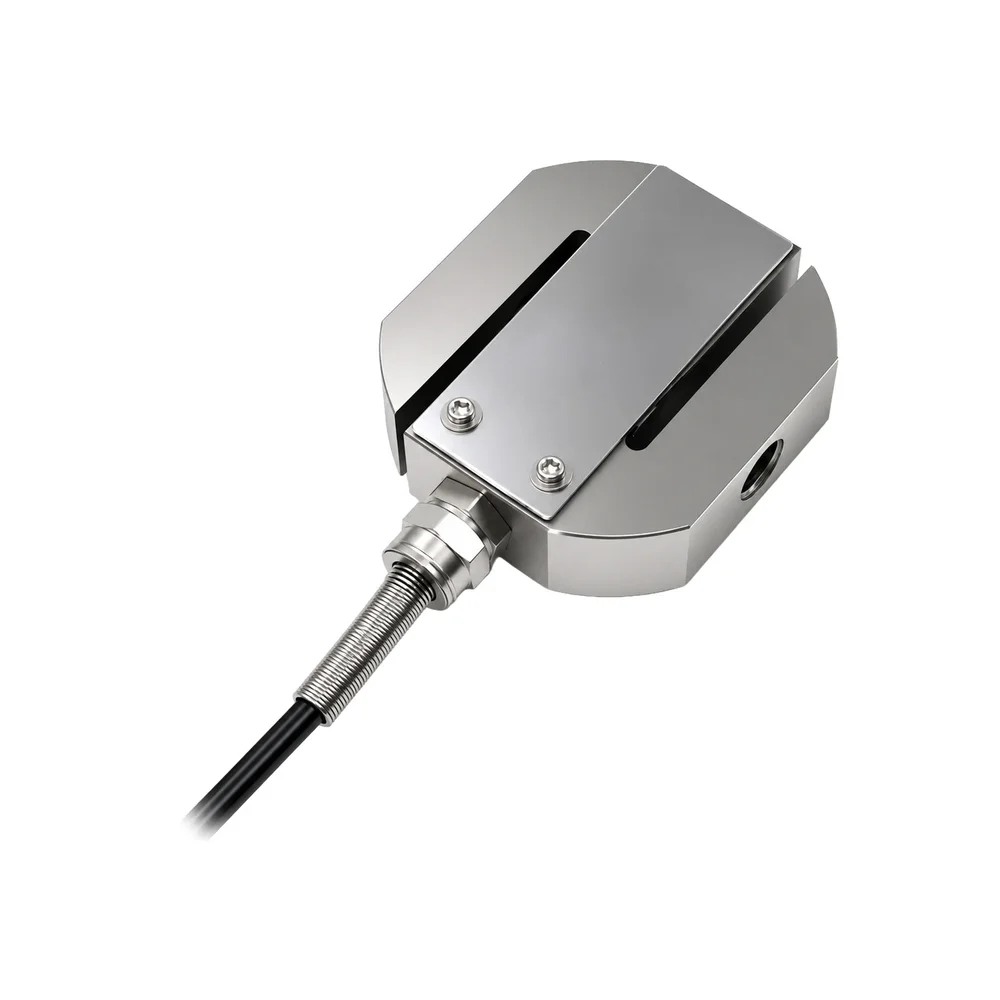

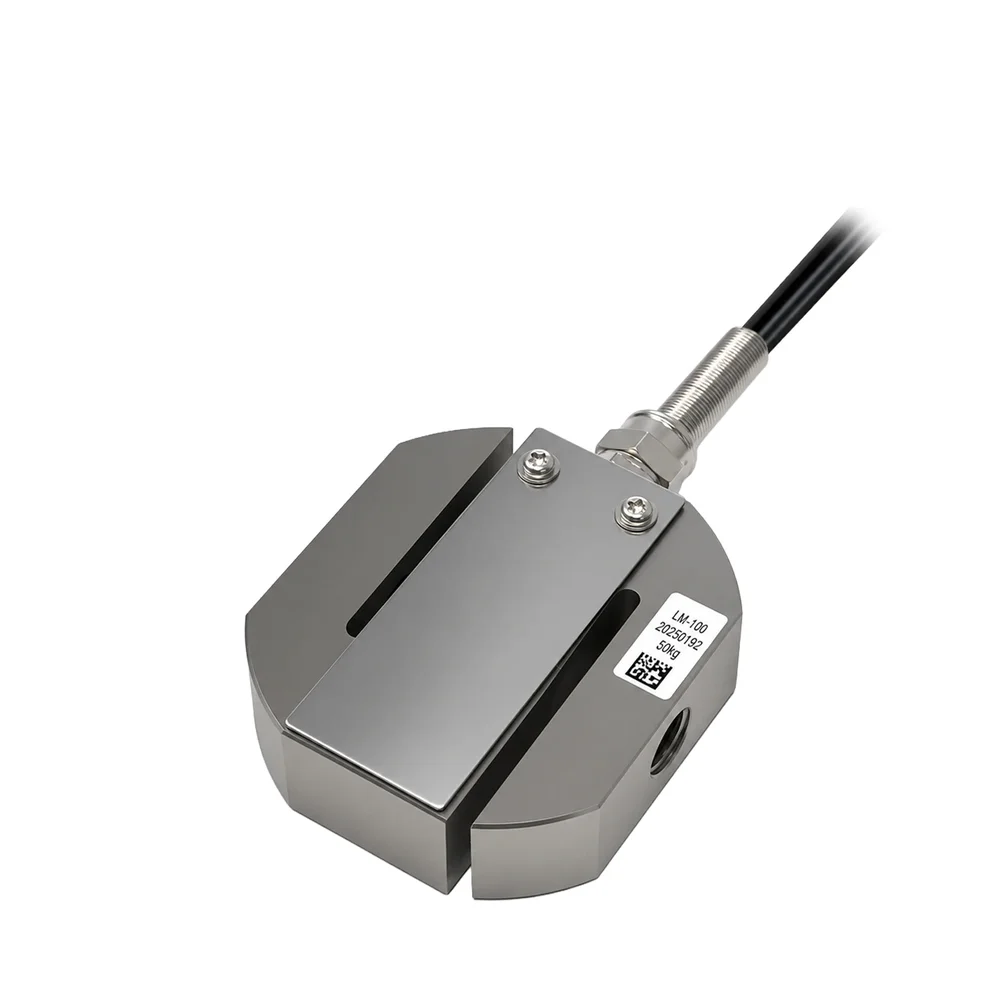

The SOP SOPLY-102-50KG is a high-precision, alloy steel load cell sensor with a 50kg capacity and 2.0mV/V output, designed for integration into industrial weighing systems, batching machines, and force monitoring equipment with 5-15V excitation.

Features

  • 50kg Capacity: High-capacity load cell designed for industrial weighing and force measurement applications.
  • 2.0mV/V Output: Provides a stable, high-sensitivity analog signal for accurate data acquisition and processing.
  • Alloy Steel Construction: Rugged, durable housing ensures long-term stability and performance in demanding environments.
  • High-Speed 10kHz Response: Enables real-time weight monitoring and control in dynamic automation systems.
  • Integrated 2m Shielded Cable: Simplifies installation and provides reliable signal transmission with noise immunity.

Out of stock

Description

The SOPLY-102-50KG is a strain gauge-based load cell engineered for precision weight and force measurement. Its full-bridge Wheatstone circuit, powered by a 5-15V DC excitation voltage, converts mechanical strain into a proportional 2.0mV/V electrical output, ensuring high signal integrity and low noise.

Constructed from high-strength alloy steel, the sensor offers excellent resistance to mechanical deformation and environmental stress. With a non-linearity and hysteresis of just 0.03% F.S., it delivers exceptional repeatability and accuracy across its full operating temperature range of -20°C to +80°C, making it suitable for continuous industrial operation.

Key Features

  • High-Precision Strain Gauge Design: Delivers a rated output of 2.0mV/V with ±10% tolerance for accurate force-to-signal conversion.
  • Superior Metrological Performance: Features ultra-low non-linearity, hysteresis, and repeatability errors of 0.03% F.S. for dependable measurement consistency.
  • Robust Alloy Steel Housing: Provides high structural integrity and long-term durability under continuous load cycles.
  • Wide Operating Voltage Range: Compatible with standard 5V, 10V, or 12V system power supplies (5-15V DC excitation).
  • Fast Dynamic Response: 10kHz natural frequency supports real-time data acquisition in high-speed control applications.
  • Built-in Overload Protection: Withstands 150% safe overload and 200% ultimate overload without permanent damage.
  • High-Temperature Stability: Minimal thermal drift on output (0.03% F.S./10°C) and zero point (0.05% F.S./10°C).
  • Integrated Installation Cable: Includes a 2-meter shielded cable with a 10kg pull strength for secure and convenient wiring.

Applications

  • Industrial Platform Scales & Hoppers: Precise batching and filling operations in food processing, chemical, and agricultural industries.
  • Force Monitoring in Automation: Integration into robotic arms, press machines, and assembly lines for real-time load feedback and control.
  • Process Control & Checkweighing: Ensures product weight compliance in packaging lines and quality assurance stations.
  • Structural Testing & Material Research: Used in test benches and R&D setups to measure compressive forces and material strength.
  • Tension & Overhead Load Measurement: Suitable for crane load monitoring, cable tension systems, and silo weight management.

Technical Specifications

ModelSOPLY-102-50KG
BrandSOP
Capacity50 kg
Rated Output2.0 ±10% mV/V
Zero Balance±1% F.S.
Non-Linearity0.03% F.S.
Hysteresis0.03% F.S.
Repeatability0.03% F.S.
Creep (30 min)0.03% F.S.
Temperature Effect on Output0.03% F.S./10°C
Temperature Effect on Zero0.05% F.S./10°C
Response Frequency10 kHz
MaterialAlloy Steel
Input/Output Impedance350 Ω
Insulation Resistance> 5000 MΩ @ 100VDC
Excitation Voltage5 – 15 V DC
Operating Temperature-20°C to +80°C
Safe Overload150% F.S.
Ultimate Overload200% F.S.
Cable Length2 m
Cable Ultimate Pull10 kg
Dimensions (L x W x H)68 x 63 x 28 mm
Weight449 g

Frequently Asked Questions

What is the required excitation voltage for this load cell, and can I power it with 5V?

Yes, the SOPLY-102-50KG operates with a DC excitation voltage range of 5 to 15 volts. It is fully compatible with standard 5V microcontroller systems (like Arduino), 10V, or 12V industrial power supplies. The output signal (2.0mV/V) scales linearly with the applied excitation voltage.

How do I connect and wire this load cell to a microcontroller or amplifier?

The sensor includes a 2-meter, 4-wire shielded cable. The standard color coding is: Red (Excitation+), Black (Excitation-), Green (Signal+), and White (Signal-). You must connect it to a precision instrumentation amplifier or a dedicated HX711 load cell amplifier module to condition the small mV-level signal for reading by an Arduino, Raspberry Pi, or PLC.

What is the difference between safe overload and ultimate overload?

Safe overload (150% of rated capacity, or 75kg) is the maximum load the sensor can withstand without affecting its specified performance or calibration. Ultimate overload (200%, or 100kg) is the absolute maximum force that may cause a permanent shift in specifications but should not cause physical destruction. Always design systems within the safe overload limit.

Is this load cell suitable for outdoor or harsh environment use?

While the alloy steel construction is robust, the SOPLY-102-50KG has an IP rating not specified in its datasheet and is not inherently waterproof. For outdoor or washdown environments, additional protective sealing or an IP67/IP68 rated junction box is required. Its operating temperature range of -20°C to +80°C suits many industrial settings.

How do I mount and install this S-type load cell correctly?

Correct installation is critical for accuracy. The load cell must be mounted with force applied strictly along its central axis. Use the provided threaded holes for secure fastening. Ensure all mounting surfaces are flat, parallel, and free of debris. Avoid side loads or bending moments, as they introduce measurement errors and can damage the sensor.

Package Includes

  • 1 x SOP SOPLY-102-50KG Load Cell Sensor with 2m Cable

Additional Information

Weight 0.449 kg
Dimensions 6.8 × 6.3 × 2.8 cm
