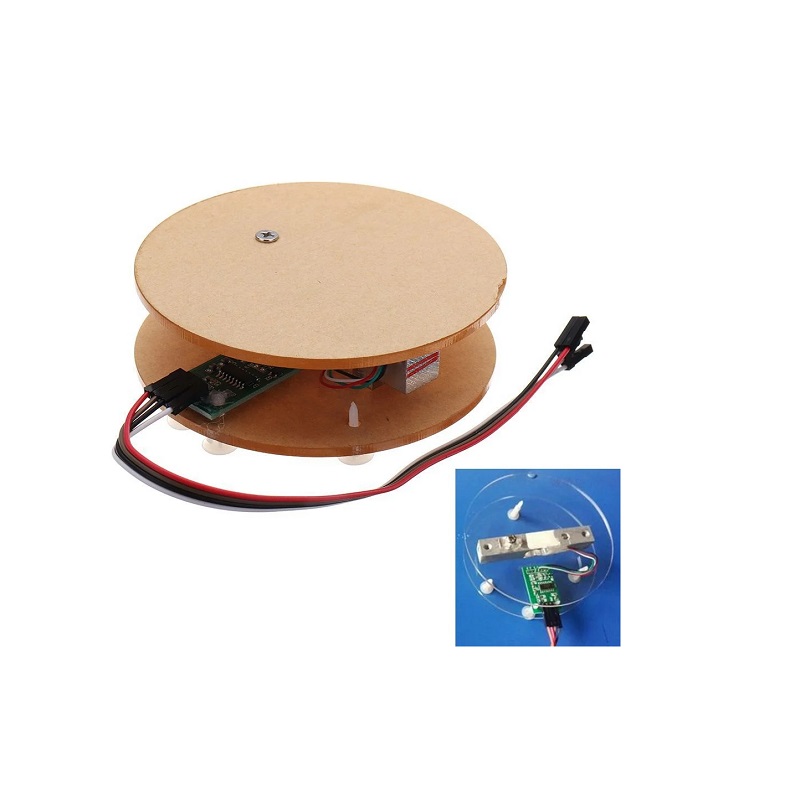

Generic DIY Pressure Sensor Kit 5kg Load Cell + HX711AD Module + 4P DuPont Wire Shell
This DIY pressure sensor kit includes a 5kg aluminum alloy load cell paired with an HX711 24-bit A/D converter module, providing a high-precision digital interface for force and weight measurement. It is designed for easy integration with Arduino, Raspberry Pi, and other microcontroller platforms using the included 4-pin DuPont wires.
Features
- 5kg capacity aluminum alloy straight bar load cell for precise force measurement.

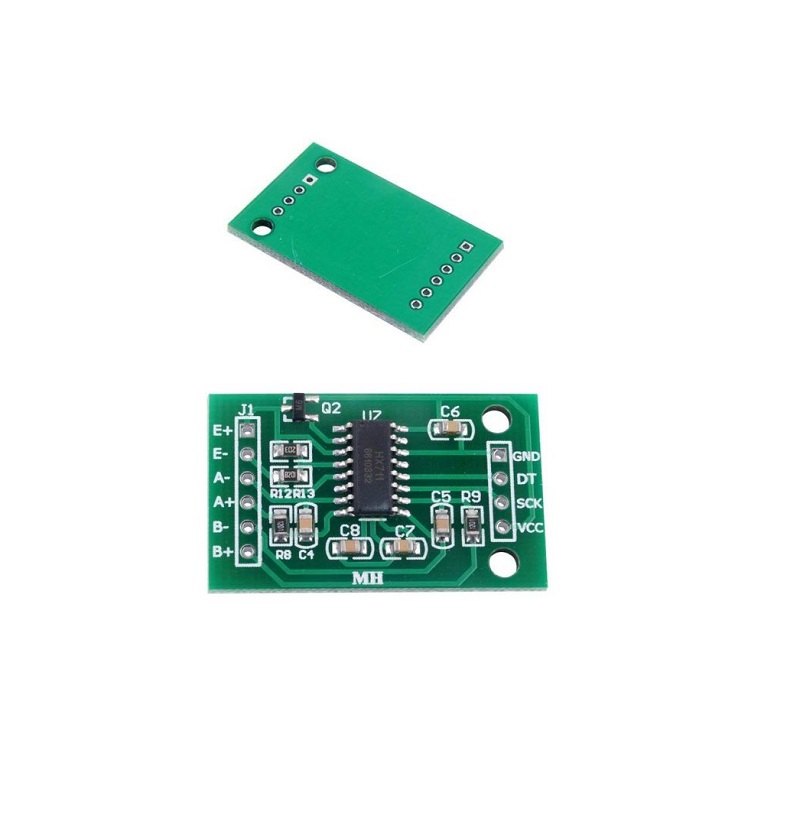

- Integrated HX711 module with 24-bit high-resolution A/D converter and programmable gain.
- Simple 4-pin DuPont wire connection for quick setup with Arduino and other MCUs.
- On-chip low-noise PGA with selectable gain settings (32, 64, 128).
- Compact and durable construction suitable for DIY scales, robotics, and educational projects.
Out of stock
This sensor kit combines a robust aluminum alloy load cell with the industry-standard HX711 analog-to-digital converter. The load cell operates on the strain gauge principle, where applied force causes a proportional change in electrical resistance, which is then converted into a high-resolution digital signal by the HX711 chip. The module provides a straightforward serial interface for reading data via microcontrollers.
Designed for prototyping and educational use, the kit offers a complete solution for converting mechanical force into a digital signal. The HX711 module’s integrated PGA and 24-bit delta-sigma ADC ensure stable and accurate readings, making it suitable for applications requiring precise weight or force monitoring in a compact form factor.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 18 × 14 × 3 cm |
