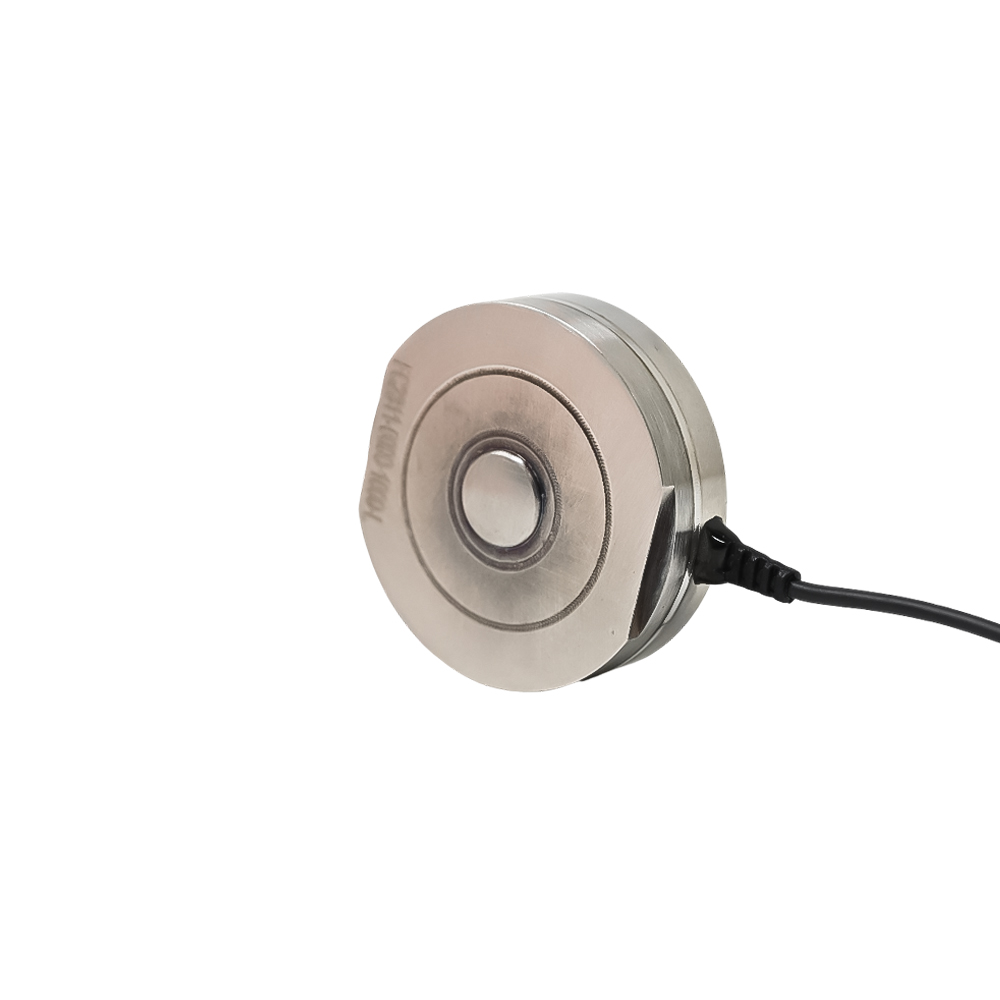

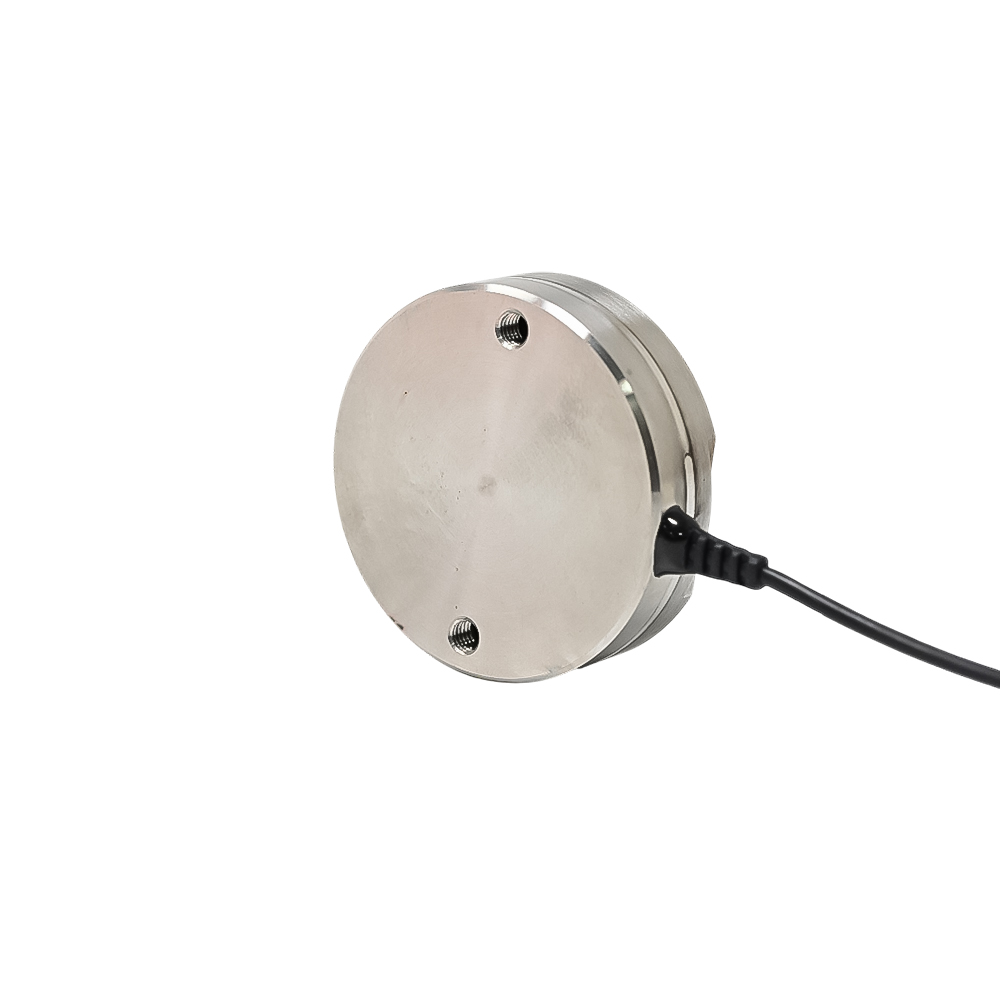

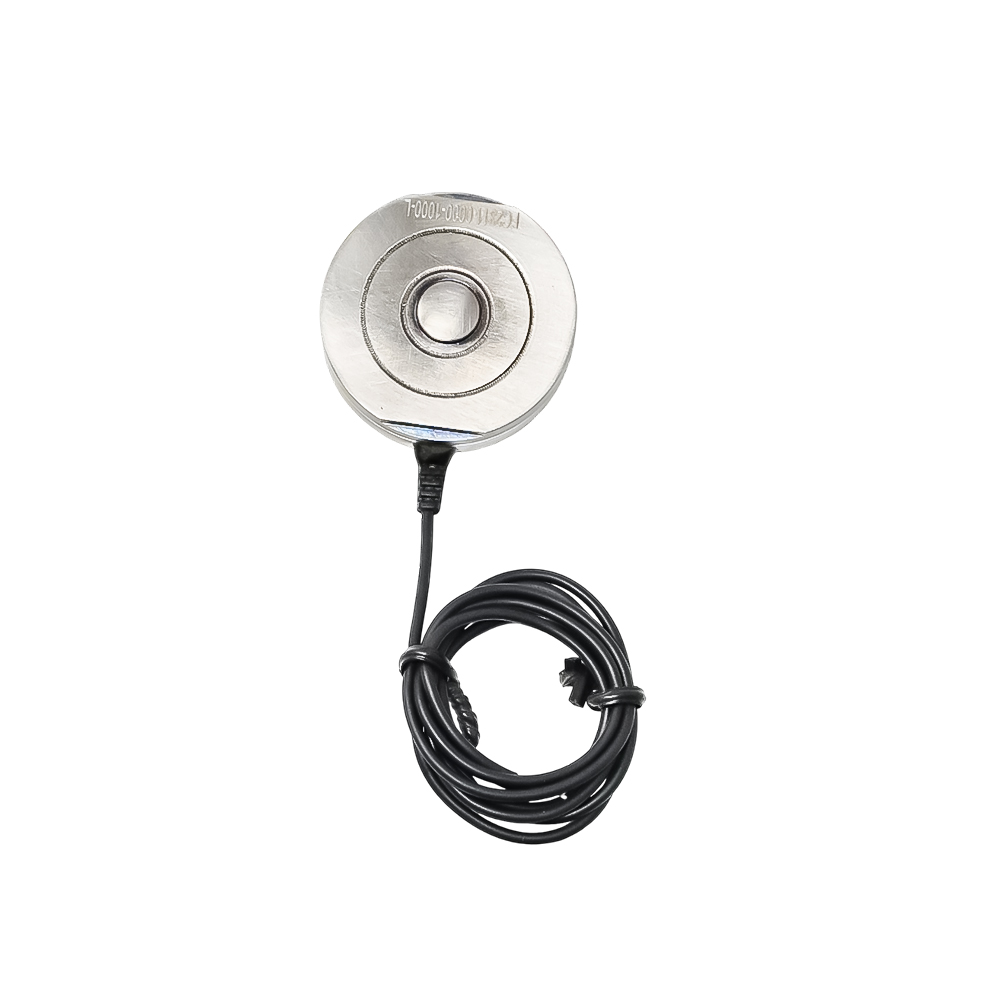

TE Connectivity FC2311-0000-1000-L Load Cell, 1000 lbf Compression, 10V Excitation, 2ft Cable

The TE Connectivity FC2311-0000-1000-L load cell is designed for a recommended excitation voltage of 10V DC. It provides a ratiometric analog output signal ranging from 0 to 100mV, which corresponds linearly to the applied force from zero to the full 1000 lbf capacity. This standard mV/V output is compatible with most industrial signal conditioners and PLC analog input modules.

Mount the load cell's stainless steel load button between two parallel, flat, and rigid surfaces, ensuring force is applied centrally along its axis. The integrated 2-foot cable provides the connection; typically, the red and black wires are for excitation voltage (10V), while the green and white wires carry the differential mV output signal. Proper shielding and routing away from power lines are recommended to minimize electrical noise.

Microfused technology directly bonds silicon strain gauges to the stainless steel sensing element without organic adhesives. This eliminates creep and hysteresis associated with traditional glued strain gauges, resulting in exceptional long-term zero and span stability, higher resistance to fatigue, and virtually unlimited mechanical life cycles, making it ideal for demanding OEM and industrial applications.

Yes, the FC2311 load cell is engineered with high tolerance to off-center loading. While optimal performance is achieved with a centered, axial compression force, its robust design can withstand significant side loads without permanent damage, protecting the sensor's integrity in real-world installations where perfect alignment may not always be possible.
