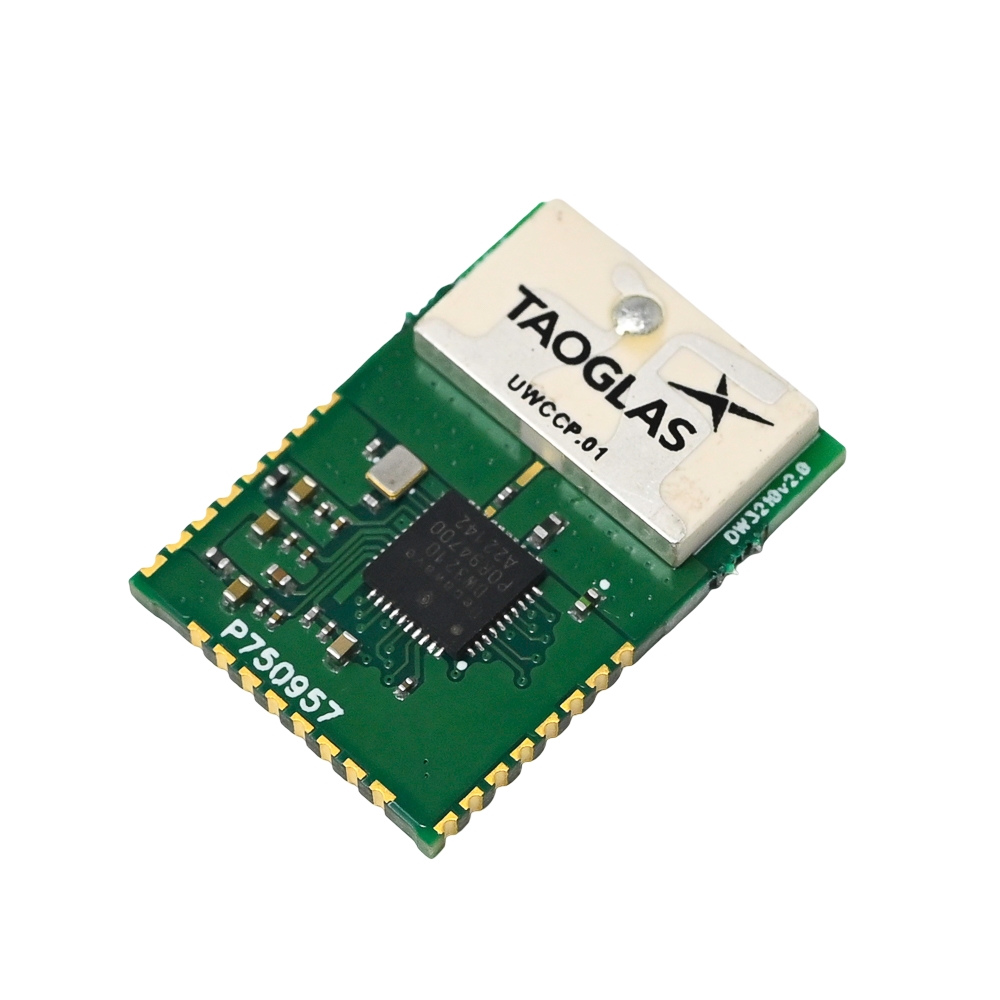

Vacus DW3210-V1 Long Range UWB Module

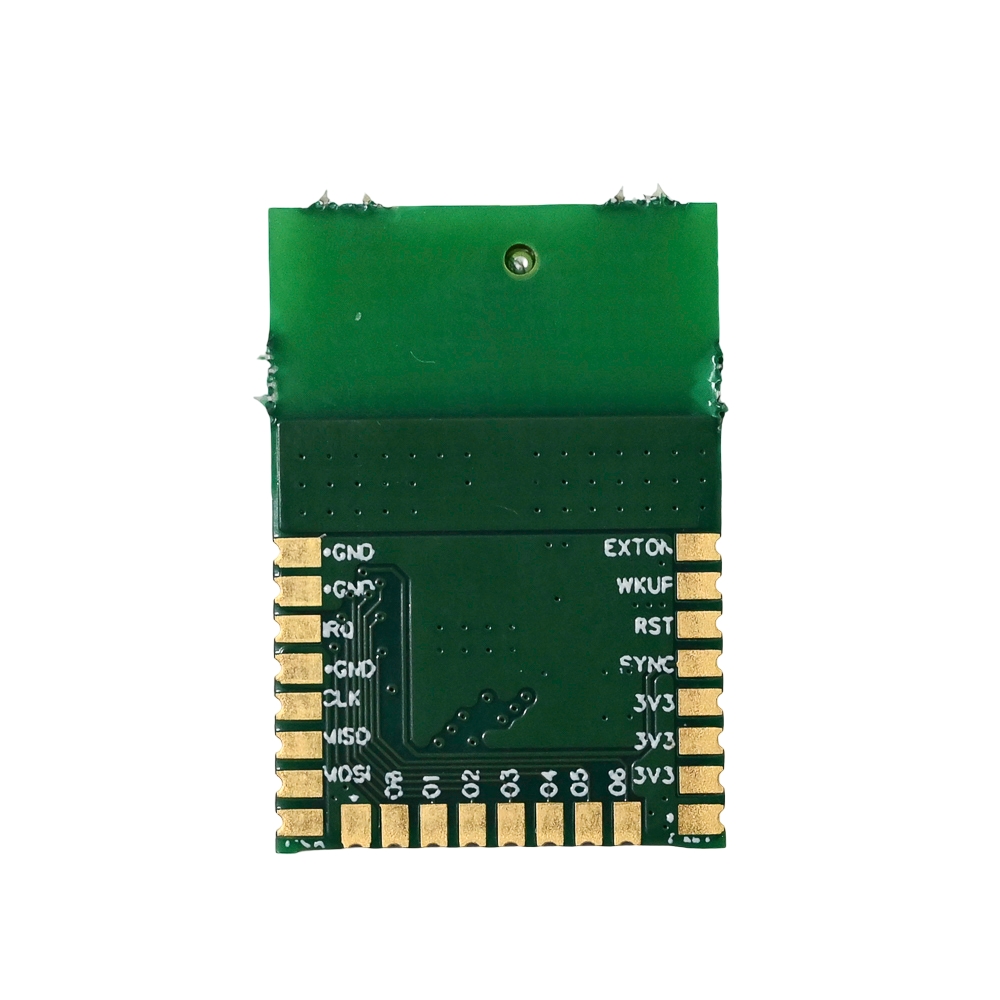

Vacus DW3210-V1 Long Range UWB Module - Image 2
SKU: DRFC-0762
📋 GST Invoice Available

Vacus DW3210-V1 Long Range UWB Module

₹3,245.00 (Inclusive of all taxes)
Out of Stock

The Vacus DW3210-V1 is a compact Ultra-Wideband (UWB) module engineered for highly precise indoor ranging and positioning in GPS-denied environments, making it essential for advanced drone navigation and industrial automation. Built around the robust DW3210 chipset, it offers high-accuracy distance measurement and strong anti-interference performance.

Features

  • Enables high-accuracy indoor ranging and positioning for drones and robotics.
  • Utilizes the reliable DW3210 UWB transceiver for robust performance.
  • Operates on 6.5 GHz (Channel 5) and is IEEE 802.15.4-2011 UWB compliant.
  • Supports two-way ranging and Time Difference of Arrival (TDOA) methodologies.
  • Integrates seamlessly via SPI interface with configurable GPIOs for host systems.

Out of stock

Description

The DW3210-V1-LR UWB Module from Vacus is a compact and highly capable Ultra-Wideband wireless solution, specifically designed for applications demanding precise indoor ranging and positioning where conventional GPS signals are unavailable or unreliable. This module is built upon the proven DW3210 chipset, ensuring exceptional accuracy in distance measurement and robust resilience against interference, critical for dynamic operational environments.

Integrating essential RF circuitry, an antenna interface, and efficient power regulation, the DW3210-V1-LR is designed for straightforward host integration through its SPI interface and configurable GPIOs. It is specifically optimized for Channel 5 (6.5 GHz) operation and fully complies with the IEEE 802.15.4-2011 standard, making it an ideal choice for scalable Real-Time Location Systems (RTLS) deployments, advanced asset tracking, and various industrial automation tasks that require stable, long-range, and high-precision communication.

Key Features

  • Based on the high-performance DW3210 UWB transceiver for reliable data.
  • Provides high-accuracy indoor positioning capabilities in complex environments.
  • Fully compliant with the IEEE 802.15.4-2011 UWB standard.
  • Supports both two-way ranging and Time Difference of Arrival (TDOA) methodologies.
  • Optimized to operate on Channel 5 (6.5 GHz) for dedicated UWB communication.
  • Demonstrates strong anti-multipath interference capability, ensuring signal integrity.
  • Designed for low power consumption, extending operational endurance.

Applications

  • FPV and autonomous drone navigation in indoor or GPS-denied zones.
  • Real-Time Location Systems (RTLS) for industrial logistics and asset tracking.
  • Precision positioning for robotics and Automated Guided Vehicles (AGVs).
  • Indoor mapping and surveying applications with high accuracy requirements.
  • Commercial drone operations in warehouses, factories, and complex structures.

Technical Specifications

Item TypeUWB Module
Operating Voltage2.8V – 3.6V
Frequency Bandwidth6.24 – 6.74 GHz
Data Rate850 Kbps / 6.8 Mbps
Sleep Current<1mA
Impedance50 Ω
Antenna Efficiency80%
Peak Gain6.5 dBi
Max Input Power10 W
Module Length23 mm
Module Width11 mm
Module Weight3 g

Frequently Asked Questions

What is the primary function of the Vacus DW3210-V1 UWB Module?

This module specializes in providing precise indoor ranging and positioning capabilities, especially in environments where GPS signals are unavailable or unreliable. Utilizing Ultra-Wideband technology, it is crucial for applications requiring high-accuracy localization, such as drone navigation in complex indoor spaces or industrial asset tracking.

What communication protocols and frequency bands does this UWB module support?

The DW3210-V1 is compliant with the IEEE 802.15.4-2011 UWB standard, operating specifically on Channel 5, which corresponds to a frequency band of 6.24 – 6.74 GHz. It supports robust two-way ranging and Time Difference of Arrival (TDOA) for accurate spatial determination, making it highly versatile for various integration scenarios.

How does the DW3210-V1 module integrate into drone or industrial systems?

Integration is facilitated via a standard SPI interface, offering configurable GPIOs for host system communication. Its compact design includes integrated RF circuitry and antenna interface, simplifying deployment. This module is ideal for applications like autonomous drone navigation, real-time location systems (RTLS), and high-precision asset management in factories or warehouses.

Package Includes

  • 1 x DW3210-V1 Long Range UWB Module

Additional Information

Dimensions 2.3 × 1.1 cm
