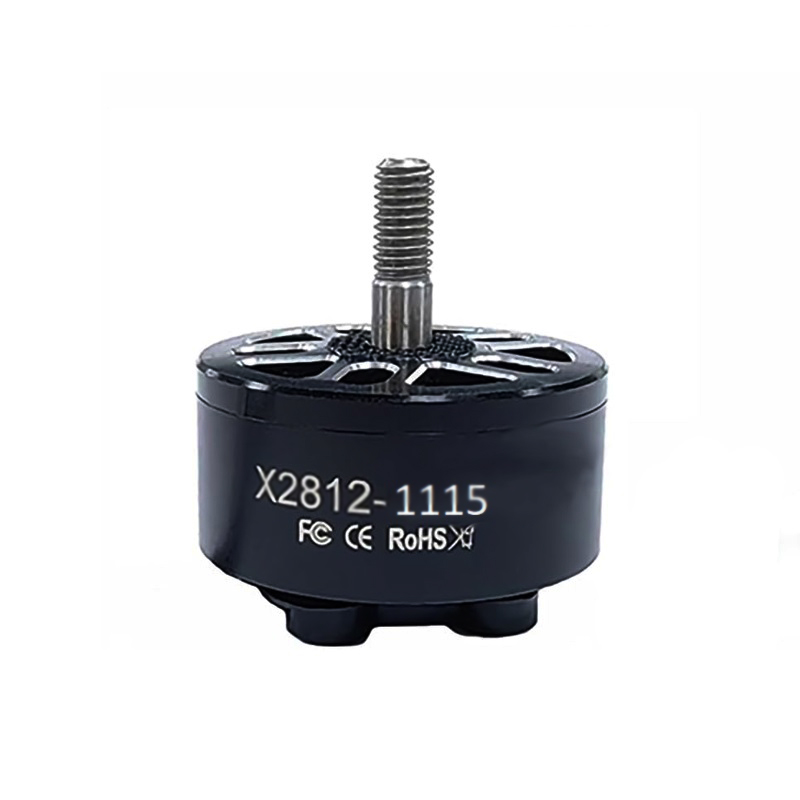

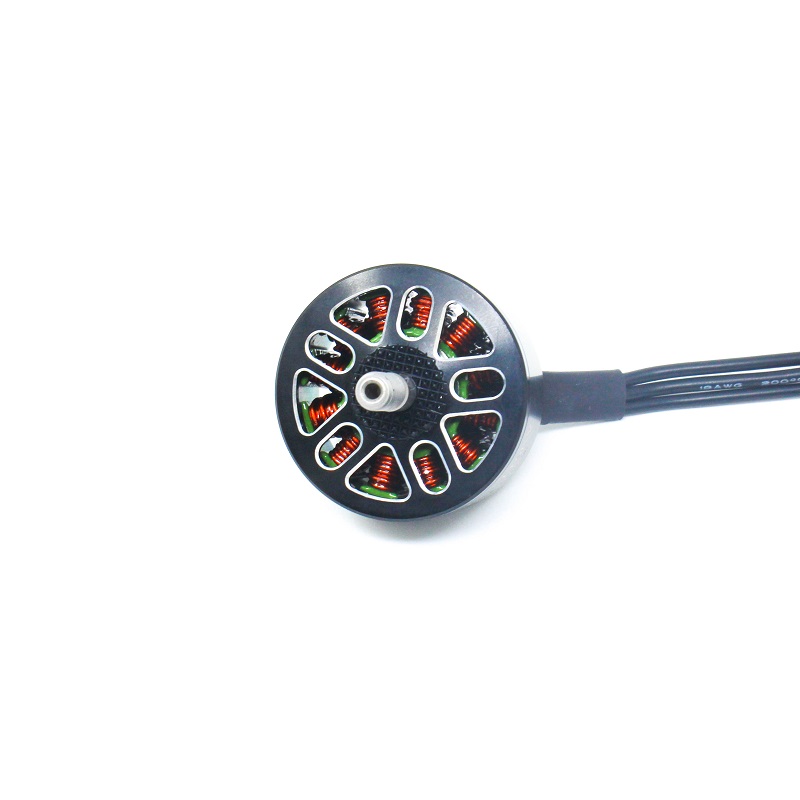

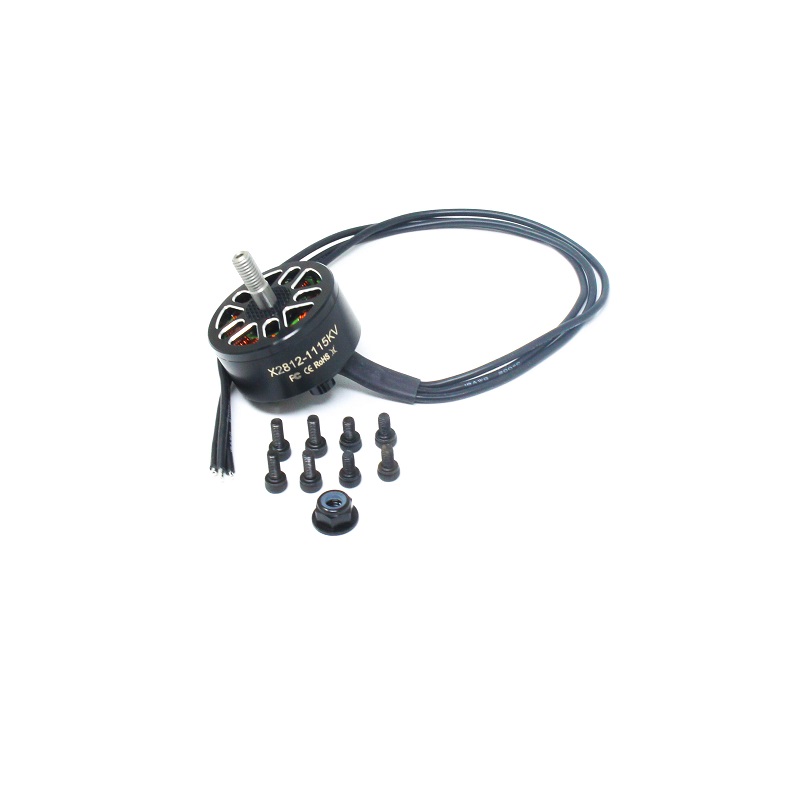

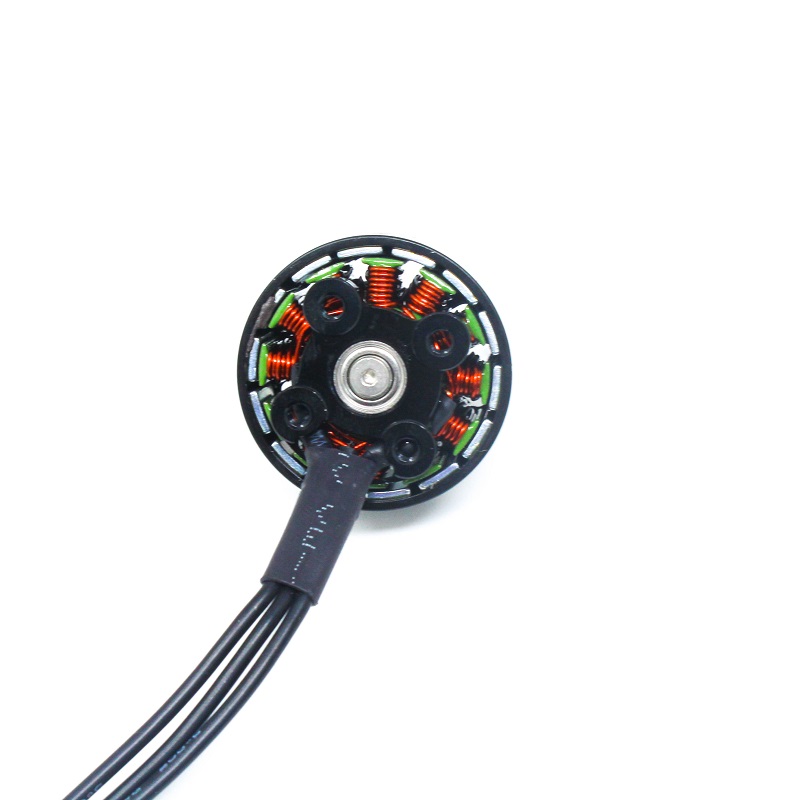

DYS X2812 1115KV 2-6S Brushless Motor
The DYS X2812 is a 1115KV brushless motor engineered for 2-6S LiPo operation, delivering up to 950W of power for long-range and heavy-lift multirotor platforms. Its 12N14P stator configuration and 4mm shaft provide robust torque and compatibility with large propellers.
Features
- 1115KV rating optimized for 2-6S LiPo battery systems.
- High-power output with a peak rating of 950W and 60A current.
- 12N14P stator configuration for smooth torque and efficient operation.
- 4mm hardened steel shaft for durability with large propellers.
- Low internal resistance of 78mΩ for efficient power delivery and cooler running.
Out of stock
The DYS X2812 1115KV brushless motor is engineered for demanding aerial applications requiring high thrust and extended flight times. Its design balances a moderate KV with a robust stator to deliver efficient power across a wide 2-6S LiPo voltage range, making it suitable for larger FPV platforms, cinematic drones, and industrial multirotors.
Constructed with precision components, the motor features a low 78mΩ internal resistance to minimize electrical losses and thermal buildup. The 4mm bearing shaft and 73g weight provide a solid foundation for mounting 9-inch carbon fiber propellers, enabling stable and responsive flight control under heavy loads.
Additional Information
| Weight | 0.085 kg |
|---|---|
| Dimensions | 6 × 5 × 5 cm |
