DJI Naza-M Lite Multi-Rotor Flight Controller without GPS
The DJI Naza-M Lite is an all-in-one, entry-level flight controller designed for multi-rotor platforms from quad to hexacopter configurations. It provides core stabilization, altitude hold, and supports manual, attitude, and GPS-assisted flight modes (with optional GPS module) for reliable, stress-free piloting.
Features

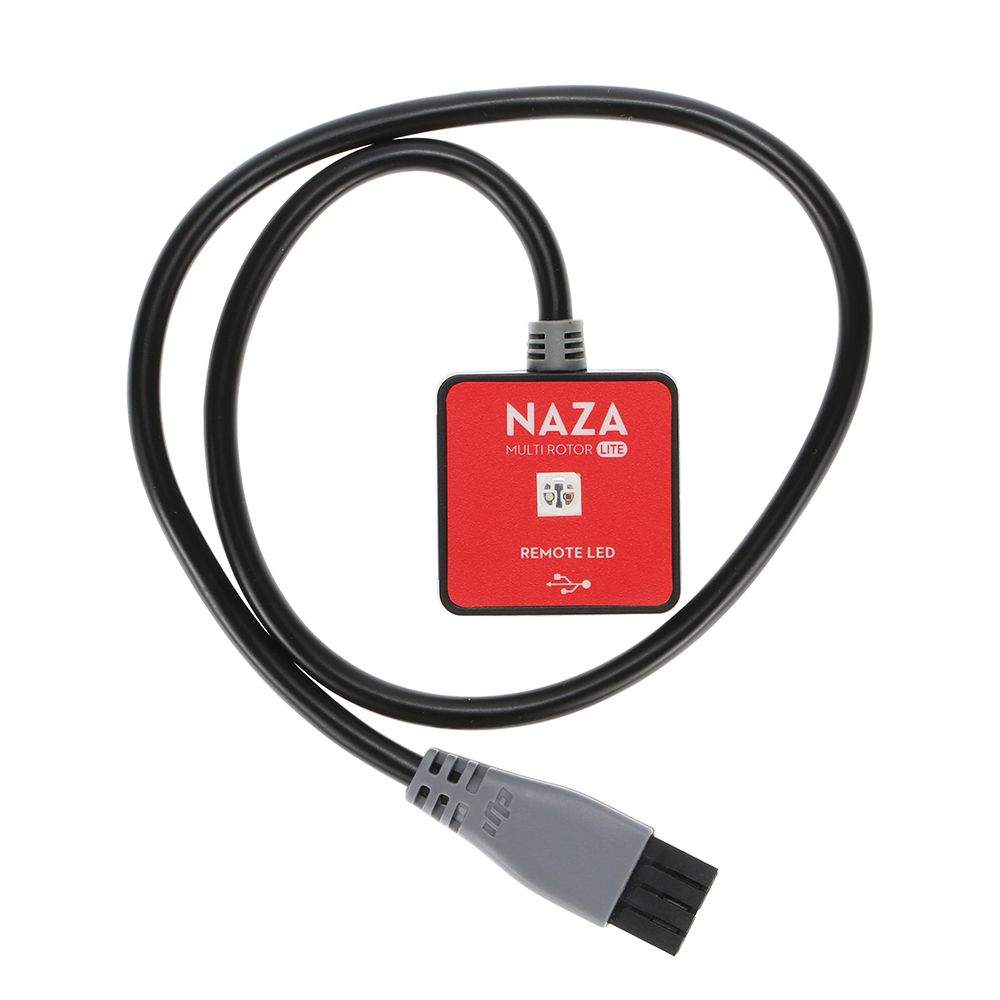

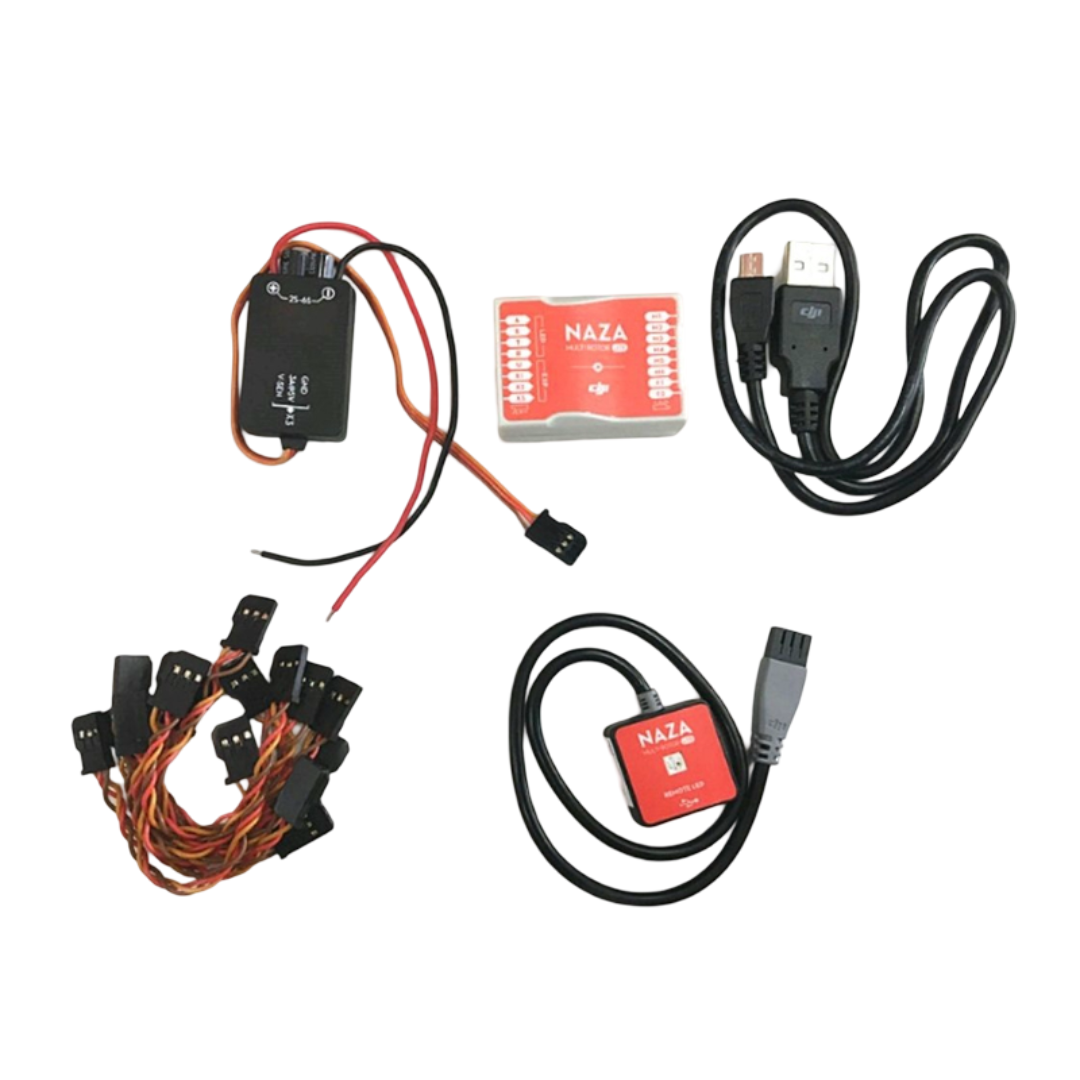

- All-in-one design integrates MC, VU, and LED module for simplified installation.
- Supports six multi-rotor types: Quad I4/X4, Hexa I6/X6/IY6/Y6.
- Advanced attitude stabilization algorithm for stable flight and excellent maneuverability.
- Features Intelligent Orientation Control (IOC), failsafe mode, and built-in gimbal stabilization.
- Compatible with 2S-6S LiPo batteries via power module and supports PPM & S.Bus receivers.
Out of stock

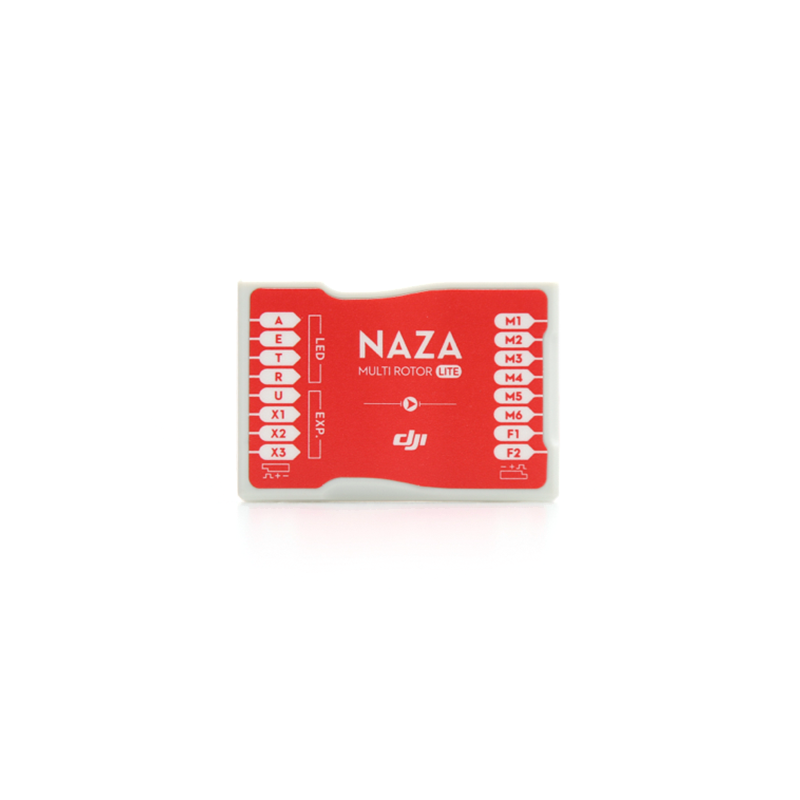

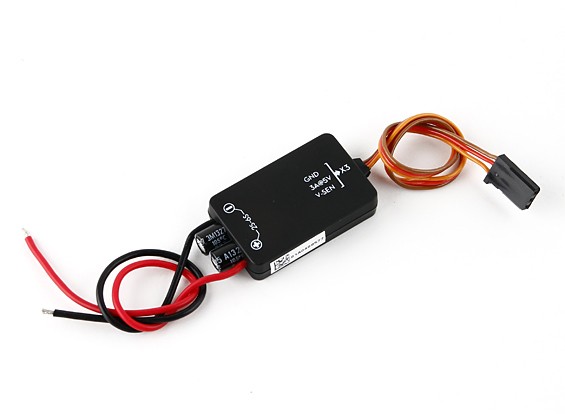

The DJI Naza-M Lite flight controller system packages high-reliability autopilot technology into a cost-effective solution for multi-rotor enthusiasts. Its compact main controller houses a 3-axis gyroscope, 3-axis accelerometer, barometer, and damping system, enabling precise measurement of altitude and attitude for automated flight control. The unit operates on a 4.8V–5.5V supply for the MC, with a voltage input range of 7.2V–26.0V via the included power module, making it suitable for 2S to 6S LiPo setups.
Engineered for flexibility, the Naza-M Lite offers three primary control modes: Manual, Attitude, and GPS Attitude (with optional GPS module). Its intelligent system can automatically switch between GPS and Atti modes based on environmental conditions to maintain flight security. The controller supports a 400Hz ESC refresh rate and provides features like motor arm/disarm, low-voltage protection, and remote adjustment through DJI’s assistant software for Windows.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 14 × 8 × 8 cm |
