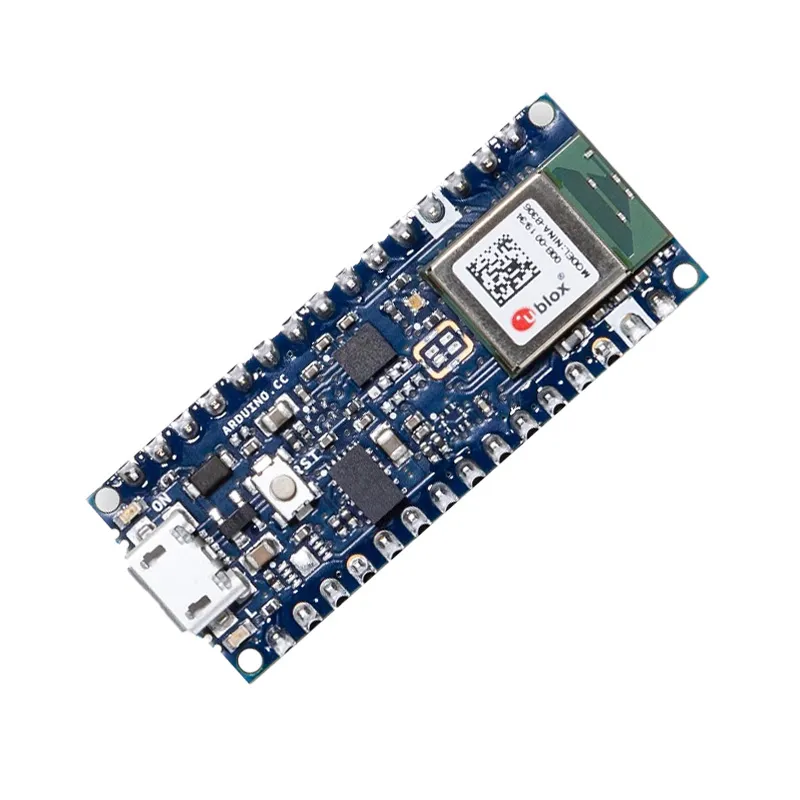

Arduino Nano 33 BLE Board (Without Headers)

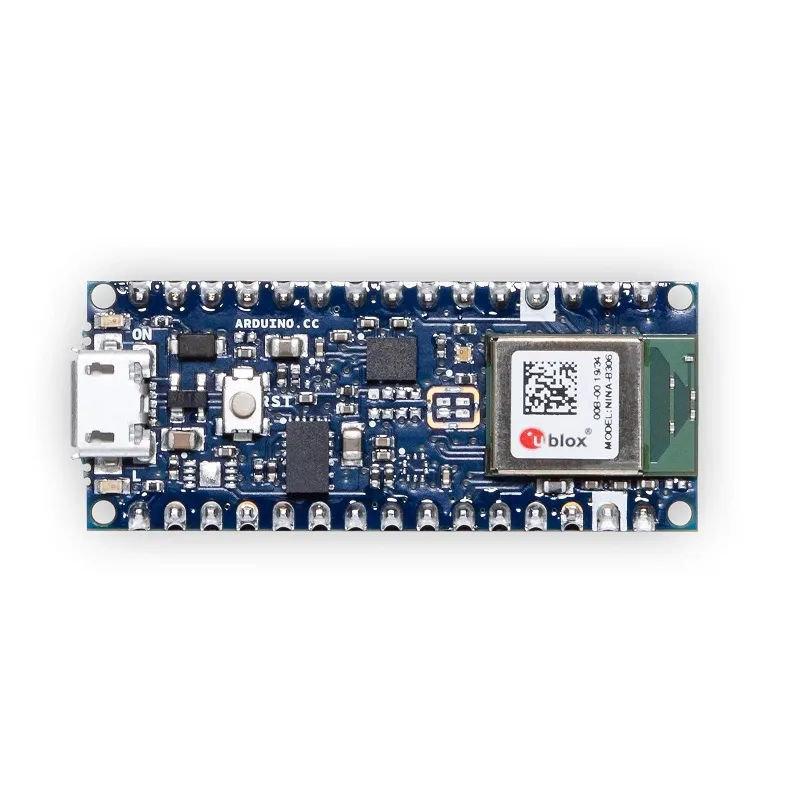

Arduino Nano 33 BLE Board (Without Headers) - Image 2

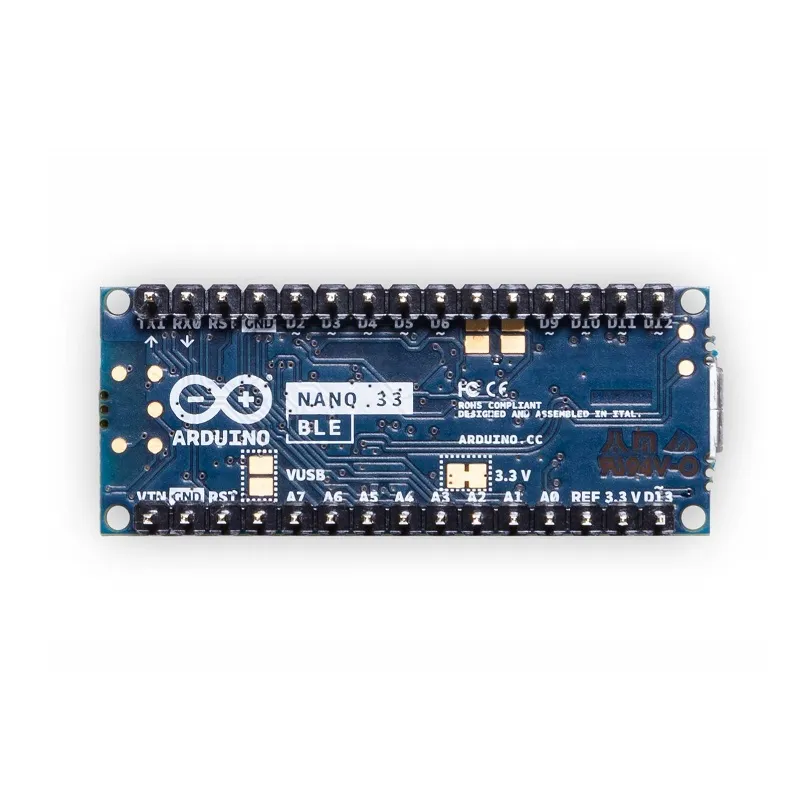

Arduino Nano 33 BLE Board (Without Headers) - Image 3

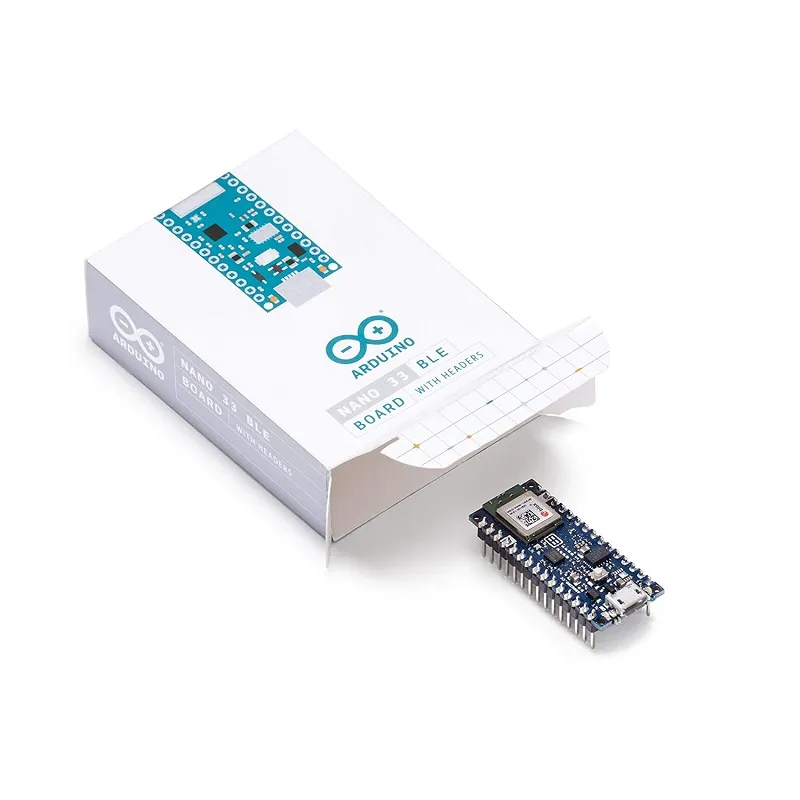

Arduino Nano 33 BLE Board (Without Headers) - Image 4
SKU: SBCD-0685
📋 GST Invoice Available

Arduino Nano 33 BLE Board (Without Headers)

₹1,962.00 (Inclusive of all taxes)
Out of Stock

The Arduino Nano 33 BLE is a compact, 3.3V-compatible development board featuring Nordic’s nRF52840 processor and an integrated 9-axis IMU. It provides robust Bluetooth Low Energy (BLE) connectivity and secure element capabilities for IoT applications in a classic Nano form factor.

Features

  • Powered by Nordic nRF52840 (ARM Cortex-M4, 64MHz) with 1MB Flash and 256KB RAM.
  • Integrated u-blox NINA-W102 module provides robust Bluetooth Low Energy (BLE) connectivity.
  • Features an onboard 9-axis Inertial Measurement Unit (IMU) for advanced motion tracking and sensing applications.
  • Includes an ATECC608A secure element, enhancing security for IoT and connected projects.
  • Compact 45x18mm form factor, maintaining the ease of use of the classic Nano board while adding powerful features.

Out of stock

Description

The Official Arduino Nano 33 BLE revolutionizes the classic Nano form factor, offering a powerful 3.3V development platform for secure IoT and Bluetooth Low Energy applications. Despite its incredibly compact 45x18mm footprint, this board integrates a high-performance Nordic nRF52840 microcontroller, making it suitable for advanced embedded projects where space and power efficiency are critical.

At its core, the Nano 33 BLE is driven by the nRF52840, a 32-bit ARM Cortex-M4 CPU clocked at 64 MHz, boasting 1MB of program memory and 256KB of RAM—significantly expanding possibilities compared to earlier Arduino boards. This powerful processor supports features like Bluetooth pairing via NFC and various ultra-low power consumption modes, ideal for battery-operated devices. Additionally, the board incorporates a 9-axis Inertial Measurement Unit (IMU), comprising an accelerometer, gyroscope, and magnetometer, making it perfect for wearables, robotics, and precise motion tracking.

Connectivity is provided by a u-blox NINA-W102 radio module, enabling robust Bluetooth and BLE client and host capabilities, a versatile feature for microcontroller platforms. The inclusion of an ATECC608A secure element further enhances the board’s suitability for sensitive IoT applications, providing hardware-based cryptographic operations and secure storage for credentials. This combination of processing power, advanced sensing, and comprehensive wireless security positions the Nano 33 BLE as a prime choice for next-generation connected projects.

Key Features

  • High-performance Nordic nRF52840 microcontroller with a 32-bit ARM Cortex-M4 CPU operating at 64 MHz.
  • Generous memory allocation with 1MB Flash and 256KB SRAM for complex applications.
  • Integrated u-blox NINA-W102 radio module supporting Bluetooth 5.0 and Bluetooth Low Energy (BLE) connectivity.
  • Features a comprehensive 9-axis Inertial Measurement Unit (IMU) including 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer.
  • Incorporates an ATECC608A cryptographic co-processor for robust hardware-based security and secure key storage.
  • Operates at a standard 3.3V, compatible with a wide range of modern sensors and modules.
  • Programmable via Micro USB, allowing for easy firmware uploads and serial communication.
  • Compact 45x18mm size, ideal for embedding in space-constrained projects and wearables.
  • Capable of acting as both a BLE client and host device, expanding communication possibilities.

Applications

  • Wearable devices and health monitoring systems.
  • IoT applications requiring secure, low-power Bluetooth Low Energy connectivity.
  • Robotics control and navigation requiring precise motion tracking.
  • Environmental sensing projects leveraging IMU data.
  • Smart home devices and industrial automation with wireless communication.
  • Prototyping secure embedded systems and access control.

Technical Specifications

MicrocontrollerNordic nRF52840 (32-bit ARM Cortex-M4)
Clock Speed64 MHz
Flash Memory1 MB
SRAM256 KB
EEPROMNone
Operating Voltage3.3V
Input Voltage (Limit)21V
Digital I/O Pins14
PWM Digital I/O Pins11
Analog Input Pins8 (ADC 8/10/12 bit)
Analog Output Pins (DAC)1 (10 bit)
DC Current per I/O Pin7 mA
Wireless Moduleu-blox NINA-W102 (Bluetooth 5.0, BLE)
Secure ElementATECC608A
IMU9-axis (Accelerometer, Gyroscope, Magnetometer)
On-board LEDsOn/Off, L (PIN 13), TX, RX
ConnectivityMicro USB
Operating Temperature-10 to 55 °C
Dimensions45 x 18 mm
Model NumberABX00030

Frequently Asked Questions

What microcontroller powers the Arduino Nano 33 BLE?

The board is equipped with the Nordic nRF52840, a powerful 32-bit ARM Cortex-M4 processor. It operates at 64 MHz and provides 1MB of Flash memory and 256KB of SRAM, making it highly capable for complex embedded applications requiring significant processing power and memory for data handling.

What wireless capabilities does the Nano 33 BLE offer?

It features a u-blox NINA-W102 module, enabling Bluetooth 5.0 and Bluetooth Low Energy (BLE) connectivity. This allows the board to function as both a BLE client and host, facilitating versatile communication with other devices for IoT, smart home, and wearable applications, all while maintaining low power consumption.

Does the board include any onboard sensors?

Yes, the Arduino Nano 33 BLE integrates a 9-axis Inertial Measurement Unit (IMU). This sensor combines a 3-axis accelerometer, gyroscope, and magnetometer, providing comprehensive motion tracking capabilities. It is ideal for applications requiring orientation detection, gesture recognition, and precise positional data.

What security features are integrated into the Nano 33 BLE?

The board includes an ATECC608A cryptographic co-processor, a dedicated secure element. This component provides hardware-based security features, including secure key storage, cryptographic acceleration for operations like ECC and SHA, and true random number generation, enhancing the security posture of connected IoT devices against threats.

What development environment is compatible with the Arduino Nano 33 BLE?

The Arduino Nano 33 BLE is fully compatible with the Arduino IDE, offering a familiar and user-friendly development experience. It also supports advanced programming with Mbed OS and Nordic's nRF Connect SDK, providing flexibility for developers to choose toolchains based on project complexity and specific requirements.

Package Includes

  • 1x Arduino Nano 33 BLE Board (Without Headers)

Additional Information

Weight 0.005 kg
Dimensions 4.5 × 1.8 × 0.5 cm
