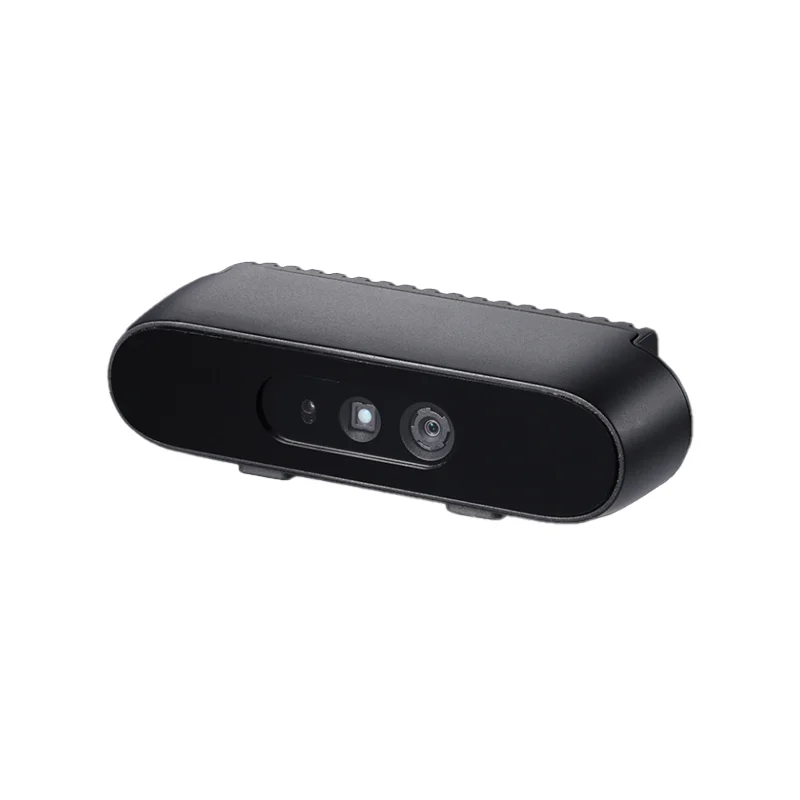

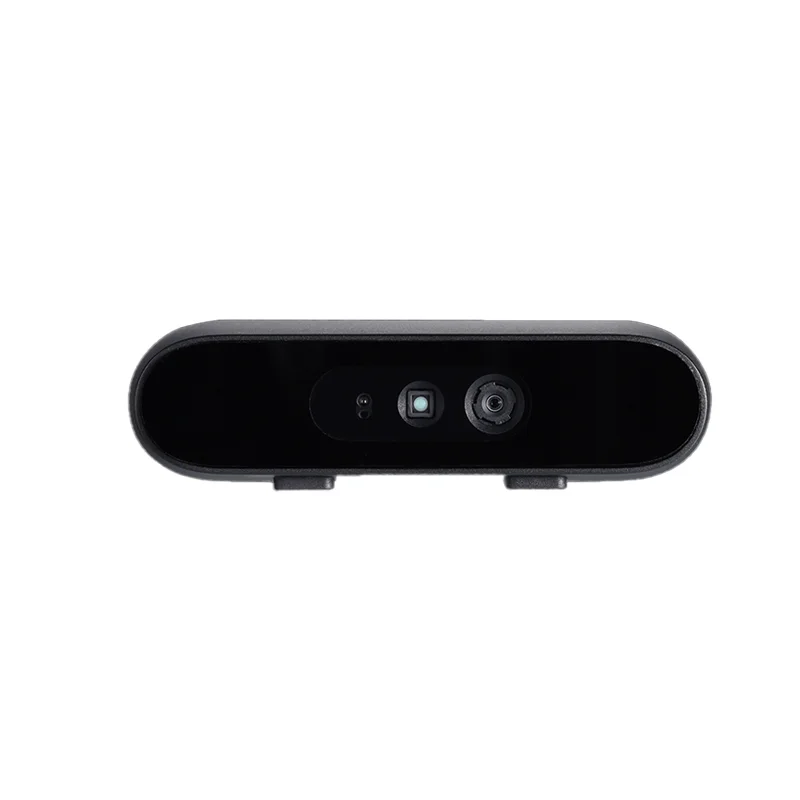

Orbbec Gemini 336 Stereo Depth Camera w/ 90°×65° FOV & IMU
The Orbbec Gemini 336 is a high-performance stereo depth and RGB camera featuring a custom ASIC for onboard depth processing, delivering accurate 3D data at 1280×800 resolution and 30 fps via USB-C for robotics, automation, and smart vision applications.
Features
- Onboard Depth Processing: Powered by a custom Orbbec ASIC for low-latency, accurate depth and color alignment without external compute.
- Robust Depth Sensing: Combines active and passive stereo IR (850nm) for reliable performance indoors/outdoors, from darkness to direct sunlight.
- High Frame Rate & Resolution: Delivers depth data at 1280 x 800 pixels and up to 30 frames per second for real-time 3D vision.
- Wide Field of View: 90° horizontal × 65° vertical FOV enables comprehensive scene coverage for robotics and automation.
- System Integration Features: Supports multi-camera synchronization and includes an IMU for advanced robotic navigation and spatial applications.
Out of stock
The Orbbec Gemini 336 Stereo Depth Camera is engineered for demanding 3D vision applications, integrating a dedicated depth-processing ASIC to handle complex computational tasks onboard. This architecture ensures low-latency output of precise depth maps and aligned RGB data, eliminating dependency on host CPU resources and simplifying system integration. Its hybrid sensing approach, utilizing both active IR projection and passive stereo matching, provides resilience across extreme lighting variances, making it suitable for deployment in uncontrolled environments.
Designed for scalability and flexibility, the camera supports programmable depth modes and hardware synchronization for multi-camera arrays, enabling precise timestamp alignment essential for advanced robotics and volumetric capture. The compact form factor, powered solely through a USB 3.0 Type-C connection, simplifies deployment while maintaining a robust operating temperature range. This combination of processing power, environmental robustness, and system-level features positions the Gemini 336 as a core sensor for next-generation autonomous systems and industrial machine vision.
Additional Information
| Weight | 0.48 kg |
|---|---|
| Dimensions | 15 × 10 × 5.5 cm |
