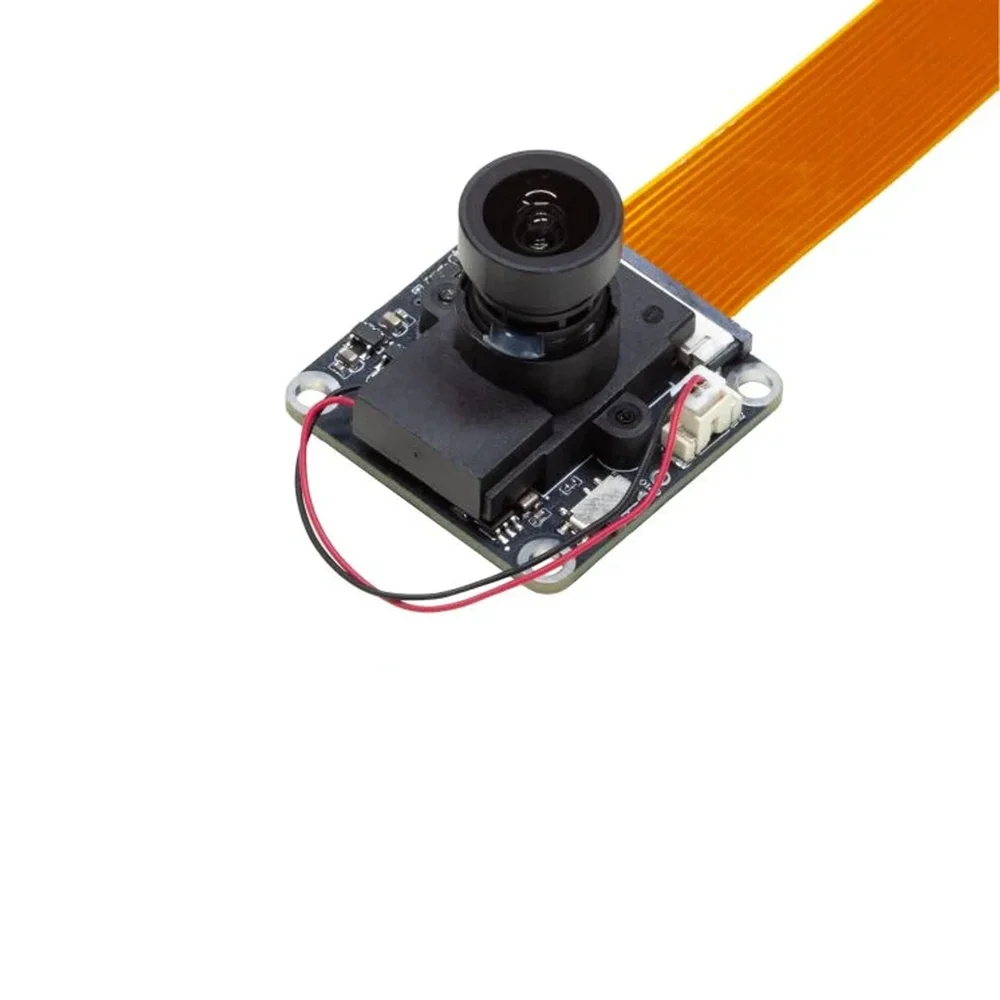

Arducam IMX290 1080P Day Night Vision MIPI Camera for Raspberry Pi
The Arducam IMX290 is a 1080P MIPI camera module for Raspberry Pi, featuring a Sony STARVIS sensor for exceptional low-light and day/night vision performance. It connects directly via the CSI-2 interface and is compatible with Raspberry Pi OS Bullseye, Bookworm, and Trixie for security, robotics, and embedded vision projects.
Features
- Sony STARVIS IMX290 Sensor: Delivers superior 2MP image quality with excellent low-light sensitivity for 24/7 day and night monitoring.
- Full HD 1080P @ 60fps: Provides smooth, high-resolution video streaming for security and computer vision applications.
- Automatic IR-Cut Switching: Features an onboard manual switch to toggle between day (IR-Cut) and night (NoIR) vision modes.

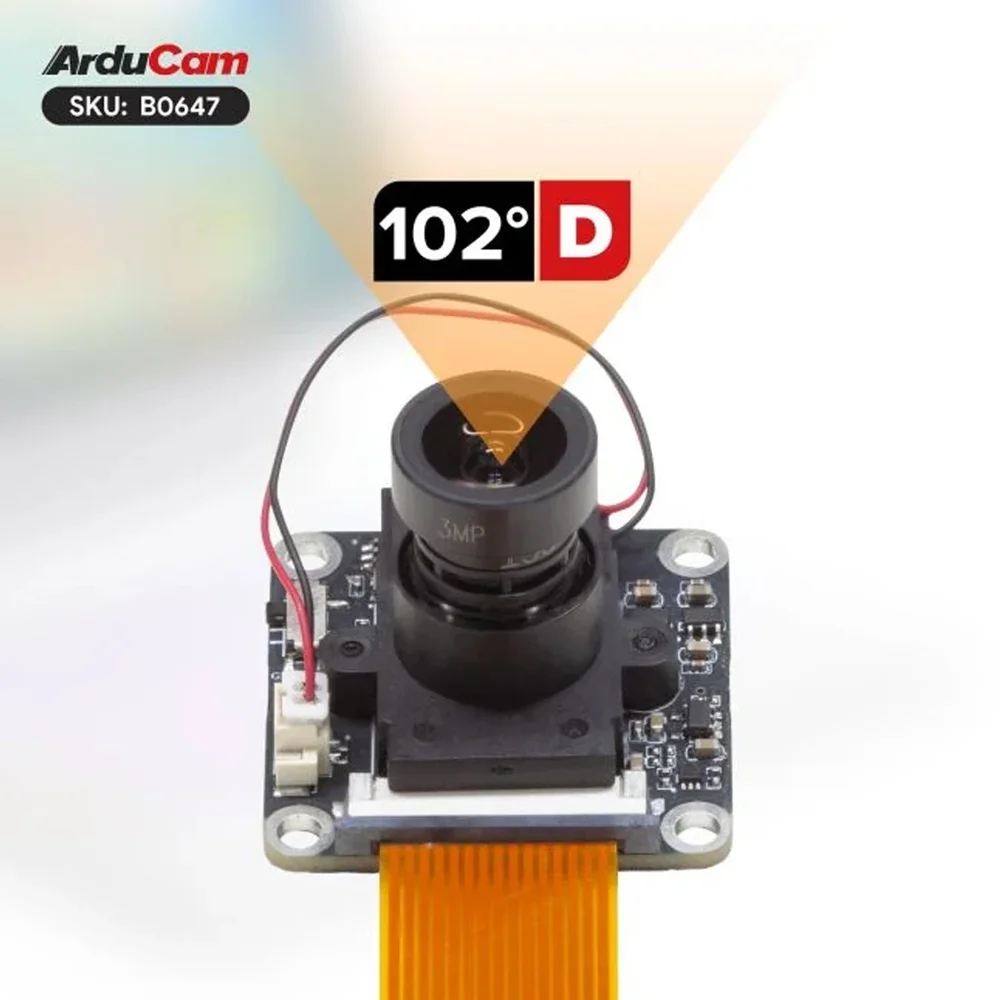

- Wide 102° Field of View: The M12 lens captures a broad scene, ideal for surveillance and robotics.

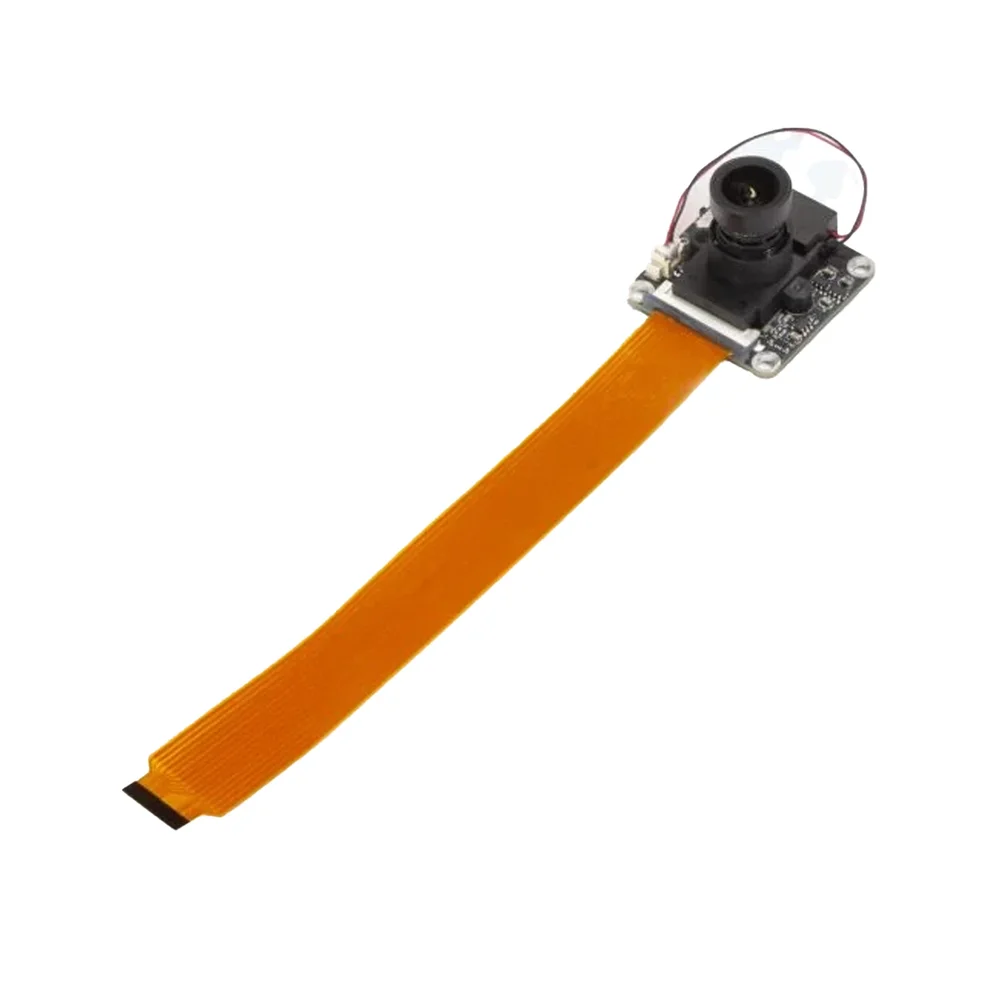

- Native Raspberry Pi CSI-2 Interface: Plug-and-play compatibility with included FPC cables for easy integration into Pi-based projects.
Out of stock
The Arducam 1080P Day & Night Vision MIPI Camera Module is engineered for demanding embedded vision applications requiring reliable performance in varying light conditions. At its core is the Sony STARVIS IMX290 CMOS sensor, a 1/2.8-inch optical format starlight sensor with 2.9µm pixels optimized for high sensitivity. This allows the module to capture clear Full HD video at 60 frames per second even in near-darkness, making it a robust solution for continuous monitoring.
Integration is streamlined via the native MIPI CSI-2 interface, which connects directly to the Raspberry Pi’s camera serial interface. The module is powered at 3.3V with a low 0.9W power consumption, suitable for portable or battery-powered setups. The fixed-focus M12 lens provides a stable 102-degree diagonal field of view, and the manual IR-Cut switch allows developers to optimize the sensor for daytime color accuracy or nighttime IR-enhanced monochrome imaging without requiring external filters.
Additional Information
| Weight | 0.017 kg |
|---|---|

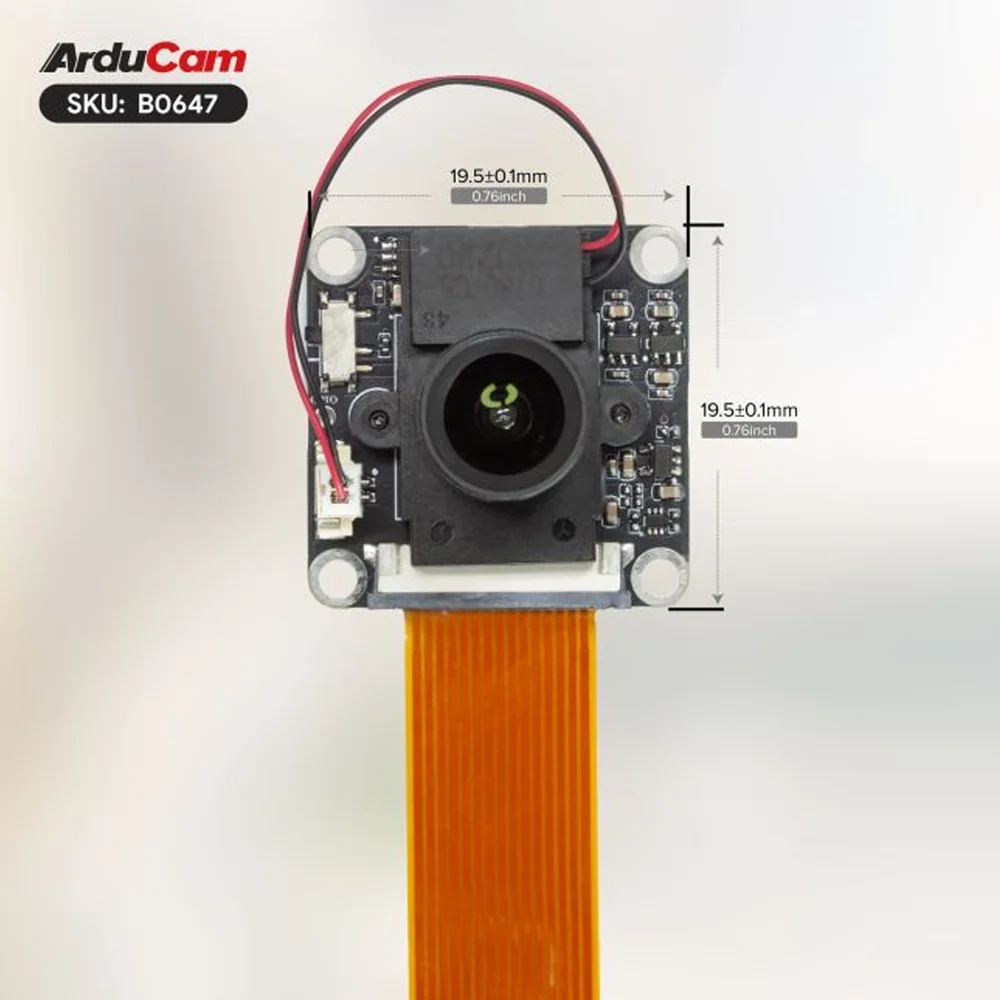

| Dimensions | 4 × 4 × 4 cm |
