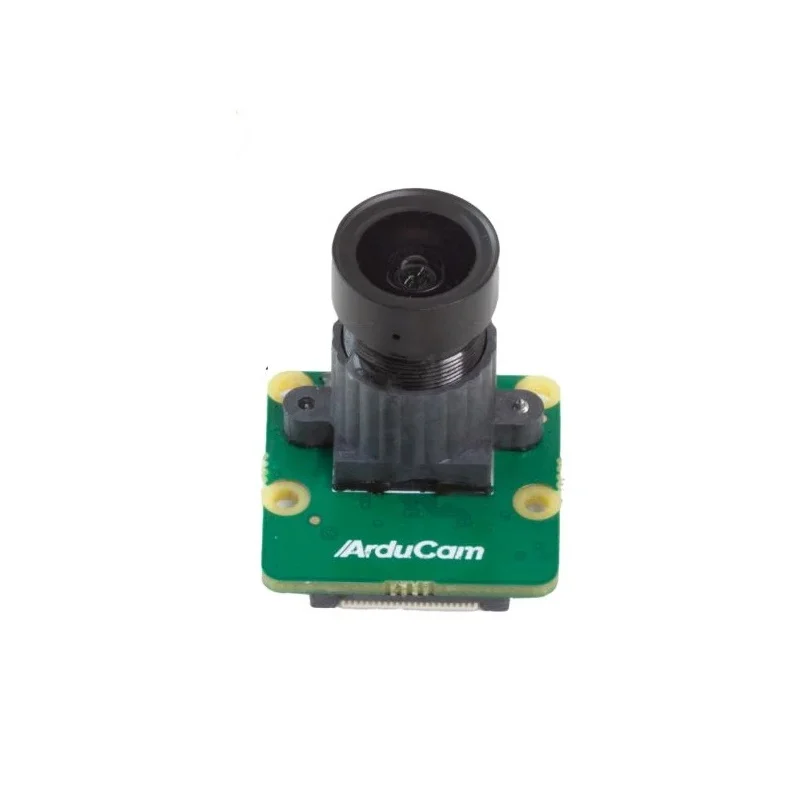

Arducam B0568 IMX335 5MP MIPI Camera Module for Raspberry Pi

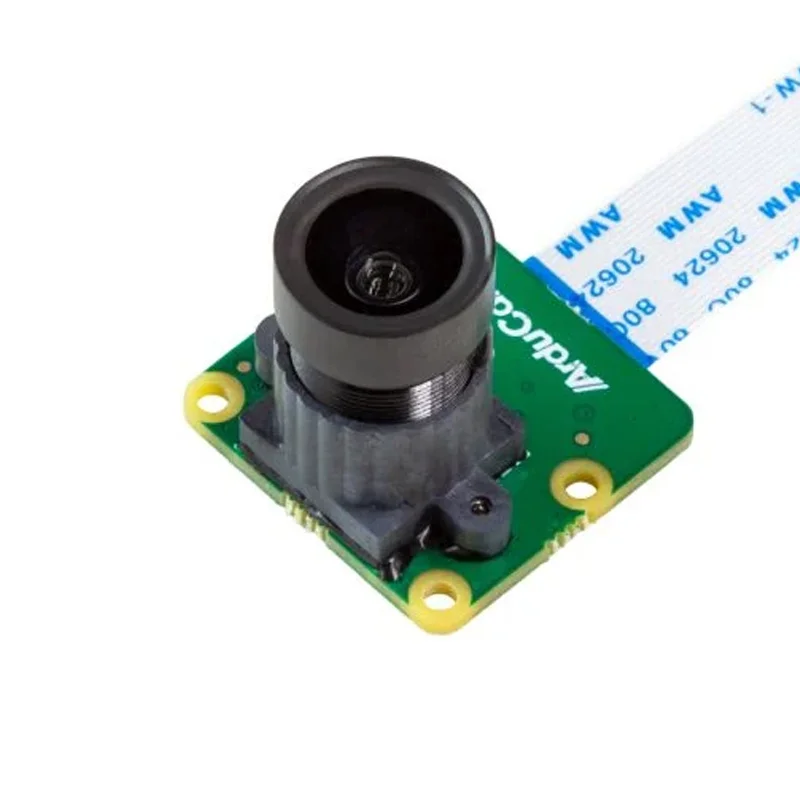

Arducam B0568 IMX335 5MP MIPI Camera Module for Raspberry Pi - Image 2
SKU: IOWC-0319
📋 GST Invoice Available

Arducam B0568 IMX335 5MP MIPI Camera Module for Raspberry Pi

₹3,239.00 (Inclusive of all taxes)
Out of Stock

The Arducam B0568 is a 5MP MIPI camera module featuring the Sony STARVIS IMX335 sensor, designed for seamless integration with Raspberry Pi boards via libcamera drivers. It delivers high-resolution, low-light imaging with a wide-angle M12 lens for embedded vision applications.

Features

  • 5MP Sony STARVIS IMX335 sensor with back-illuminated pixels for superior low-light sensitivity and detailed 2592×1944 resolution.
  • Plug-and-play compatibility with Raspberry Pi 5, 4B, 3B+, CM4, Zero, and other models via standard MIPI CSI-2 interface and upstreamed libcamera drivers.
  • Pre-installed wide-angle M12 lens (4.3mm focal length) and a 650nm IR cut filter for distortion-free, true-color imaging right out of the box.
  • Fully open-source hardware with schematics and 3D files available, enabling deep customization and tuning for advanced embedded vision projects.
  • Compact 25x25mm form factor with a 3.3V operating voltage, ideal for space-constrained smart systems, robotics, and industrial prototyping.

Out of stock

Description

The Arducam B0568 camera module integrates the Sony IMX335, a premium STARVIS sensor renowned for its back-illuminated pixel structure that dramatically enhances quantum efficiency in low-light conditions. This engineering enables crisp, high-detail 5MP imaging suitable for demanding computer vision tasks, from object recognition to environmental monitoring. The module is pre-configured with a wide-angle M12 lens offering a 104.9° diagonal field of view, minimizing distortion while capturing expansive scenes.

Designed specifically for the Raspberry Pi ecosystem and embedded Linux platforms, it leverages the standardized MIPI CSI-2 interface for high-speed data transfer. Full support for the libcamera software stack ensures straightforward integration and access to advanced imaging controls without proprietary drivers. Its open-source hardware design provides developers with complete schematics and mechanical files, facilitating custom lens swaps, enclosure design, and circuit modifications for specialized industrial or research applications.

Key Features

  • Sony STARVIS IMX335 5MP sensor delivers exceptional image clarity and detail with 2592x1944 resolution.
  • Back-illuminated pixel technology maximizes light capture for superior performance in dark or low-light environments.
  • Wide-angle M12 lens with 4.3mm focal length provides a broad 104.9° diagonal field of view for comprehensive scene coverage.
  • Integrated 650nm IR cut filter ensures accurate color reproduction by blocking infrared wavelengths.
  • Standard MIPI CSI-2 interface guarantees high-bandwidth, low-latency video data transmission to host processors.
  • Full compatibility with Raspberry Pi libcamera drivers for plug-and-play operation and advanced software control.
  • Open-source hardware design with released schematics and 3D models empowers developer customization and integration.
  • Compact and lightweight form factor (25x25mm) is ideal for embedding into drones, robotics, and portable smart devices.

Applications

  • Raspberry Pi-based computer vision projects, smart security systems, and DIY surveillance cameras.
  • Embedded vision for robotics, drones, and autonomous vehicles requiring real-time object detection and navigation.
  • Industrial machine vision applications for quality inspection, part identification, and process monitoring.
  • Smart home automation systems integrating facial recognition, gesture control, or environmental sensing.
  • Educational and research prototyping in fields like IoT, AI, and embedded systems development.

Technical Specifications

Sensor ModelSony IMX335 STARVIS
Resolution5MP (2592 x 1944)
Shutter TypeRolling Shutter
Lens MountM12
Focal Length4.3 mm ±5%
Field of View (Diagonal/Horizontal/Vertical)104.9° / 82.4° / 53°
InterfaceMIPI CSI-2
Operating Voltage3.3 VDC
Operating Temperature-10°C to +60°C
Dimensions (L x W)25 mm x 25 mm
Weight9 g

Frequently Asked Questions

Is this Arducam B0568 module compatible with Raspberry Pi 5 and Raspberry Pi 4?

Yes, the Arducam B0568 is fully compatible with Raspberry Pi 5, Raspberry Pi 4B, 3B+, 3, 2, Compute Module 3/4, and the Zero series. It connects via the standard MIPI CSI-2 interface. You need to use the modern libcamera software stack, which is upstreamed and supported on recent Raspberry Pi OS versions. Ensure you have a compatible ribbon cable (included) and enable the camera interface via `raspi-config` for immediate plug-and-play operation.

What is the advantage of the Sony STARVIS IMX335 sensor in this camera?

The Sony STARVIS IMX335 sensor employs back-illuminated pixel technology, which significantly improves photon capture efficiency compared to traditional front-illuminated designs. This results in exceptional low-light performance, higher signal-to-noise ratio, and clearer images in dim environments. The 5MP resolution provides detailed 2592x1944 images suitable for advanced computer vision tasks like object recognition, surveillance, and machine inspection where image fidelity and sensitivity are critical.

How do I connect and configure this camera module with my Raspberry Pi?

First, power off your Raspberry Pi. Connect the module's 22-pin connector to the Raspberry Pi's MIPI CSI-2 camera port using the included ribbon cable, ensuring the connector's blue tape faces the Ethernet/USB ports. Boot the Pi and enable the camera interface by running `sudo raspi-config`, navigating to 'Interface Options', and selecting 'Camera'. After a reboot, you can use libcamera commands like `libcamera-hello` or `libcamera-jpeg` to test the camera. The open-source libcamera stack provides full control over exposure, focus, and other parameters.

Package Includes

  • 1 x Arducam B0568 5MP IMX335 MIPI Camera Module
  • 1 x 15cm 15-pin to 22-pin Ribbon Cable
  • 1 x 15cm 22-pin to 22-pin Ribbon Cable

Additional Information

Weight 0.009 kg
Dimensions 2.5 × 2.5 cm

Related Products

Out of Stock

Arducam 2.3MP Global Shutter Camera Module for Jetson Orin Nano/NX

16,689.00
Learn More
Out of Stock

Arducam B0586 4K HDR MIPI Camera w/ ISP for Jetson Orin Nano/NX

14,329.00
Learn More
Out of Stock

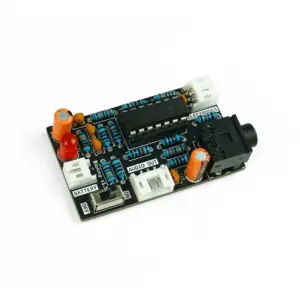

Upside Down Labs BioAmp v1.5 (2023 Edition) - EMG Biopotential Amplifier Module

1,049.00
Learn More
Out of Stock

Geekworm X1300 HDMI to CSI-2 Shield for Raspberry Pi 5

3,799.00
Learn More
Out of Stock

Arducam B0569 IMX415 8.3MP MIPI Camera Module for Raspberry Pi

2,919.00
Learn More
Out of Stock

Arducam 16MP IMX519 Camera Module for Rock 5A & 5B

2,889.00
Learn More
Out of Stock

Arducam B0191 IMX219 Fixed Focus Camera Module for Jetson Nano, Raspberry Pi CM4

1,379.00
Learn More
Out of Stock

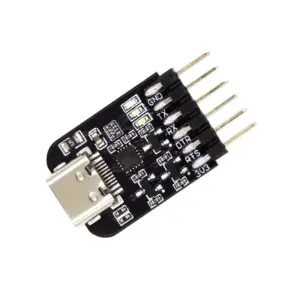

MuseLAB nanoUART USB to TTL Module - Adjustable IO, Type-C
