Arducam 16MP IMX519 Camera Module for Rock 5A & 5B

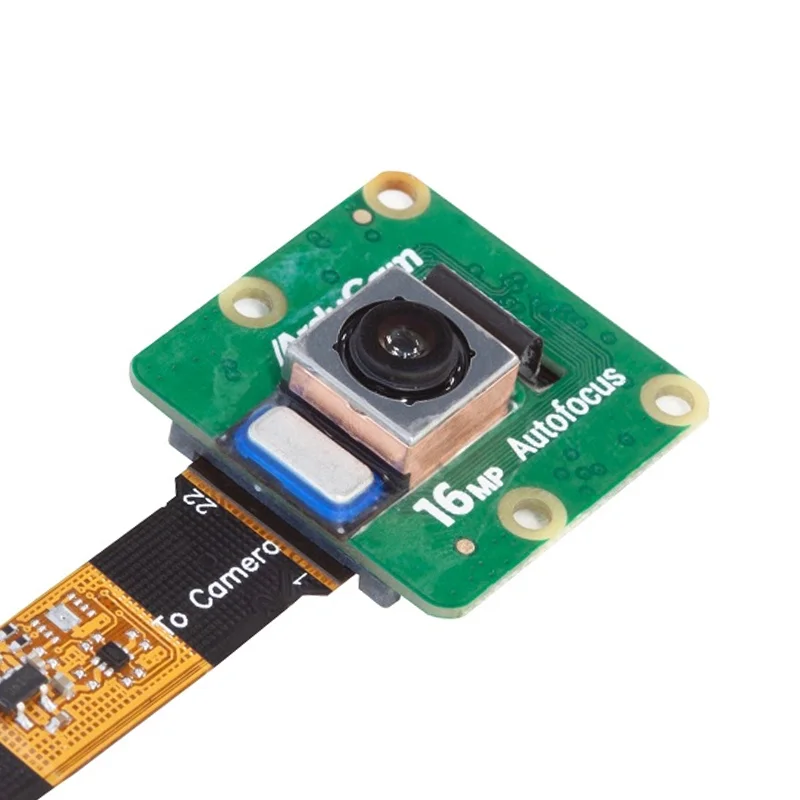

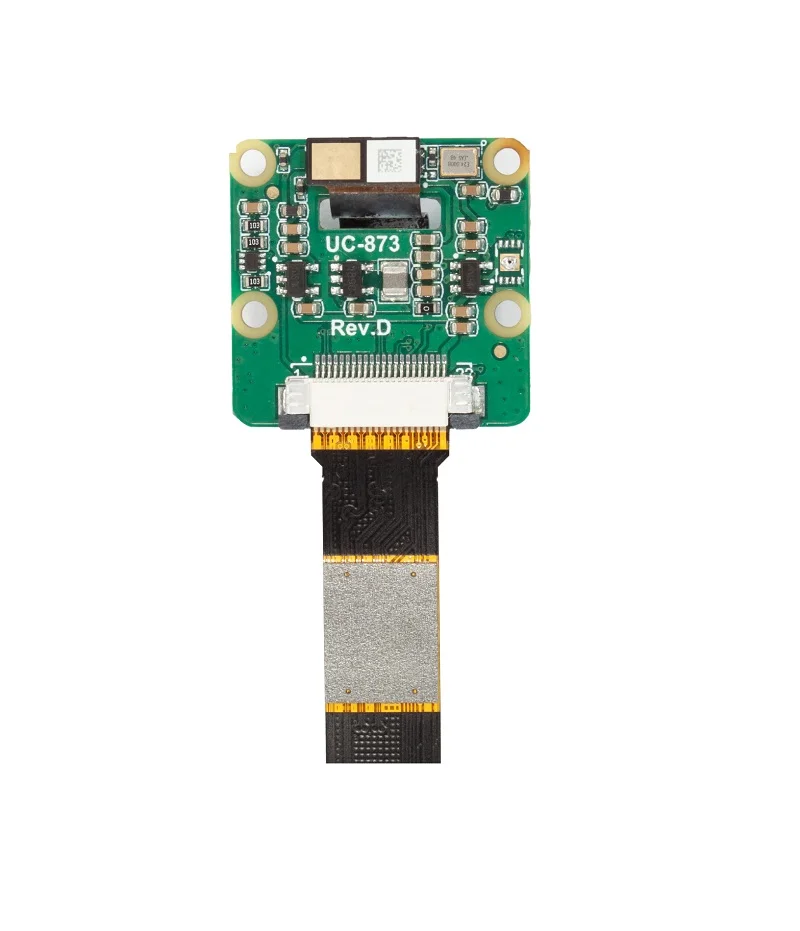

The Arducam IMX519 is a 16MP CMOS camera module designed for the Rock 5A and 5B SBCs, featuring a compact 24x25mm board, motorized focus, and an 80° field of view for high-resolution imaging and video capture in embedded vision projects.
Features
- 16MP IMX519 Sensor: Delivers high-resolution stills up to 4656×3496 pixels and supports video modes including 1080p60 and 4K at 20fps for detailed imaging.
- Rockchip Rock 5A/5B Compatible: Specifically engineered for seamless integration with Rock 5A and Rock 5B single-board computers, with included drivers for quick setup.
- Compact & Motorized Focus: Features a miniaturized 24x25mm board with a motorized focus lens (F1.75) and a default focus range from 10cm to infinity.
- Wide 80° Field of View: Provides a diagonal field of view of 80 degrees, ideal for capturing expansive scenes in robotics or surveillance applications.
- Integrated IR-Cut Filter: Includes a fixed IR-cut filter for accurate color reproduction in visible light, suitable for standard photography and computer vision.
Out of stock
The Arducam IMX519 camera module is a dedicated imaging solution for the Rockchip Rock 5 series of single-board computers. It integrates a 1/2.53-inch 16-megapixel Sony IMX519 CMOS sensor, offering high dynamic range and low-light sensitivity for demanding embedded vision tasks. The module communicates via a dedicated 2-lane MIPI CSI-2 interface, ensuring high-bandwidth data transfer for smooth video streaming.
Its compact form factor and motorized focusing mechanism allow for flexible deployment in space-constrained projects, from mobile robots to industrial inspection systems. The integrated lens provides an F1.75 aperture and an 80-degree diagonal field of view, balancing light intake with a useful perspective. With provided drivers and a straightforward installation process, developers can rapidly integrate high-resolution computer vision capabilities into their Rock 5A or 5B based applications.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 5 × 2 cm |
