Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
The Arducam IMX219 is an 8MP visible-light camera module featuring a Sony back-illuminated CMOS sensor, designed for Raspberry Pi via MIPI CSI-2 interface. It delivers high-quality video at up to 30fps in 1080p, making it ideal for computer vision, robotics, and IoT imaging applications.
Features
- Sony 8MP IMX219 back-illuminated CMOS sensor for high sensitivity and low-light performance.
- MIPI CSI-2 2-lane interface ensures high-speed data transfer directly to Raspberry Pi SBCs.
- Supports multiple frame rates: 21fps at 8MP, 30fps at 1080p, and 120fps at 720p for versatile video capture.
- Fixed focus lens with a 62.2° diagonal field of view and integrated IR filter for visible light imaging.
- Includes a 15cm 15-pin FPC cable for easy connection and integration into your embedded system.
Out of stock

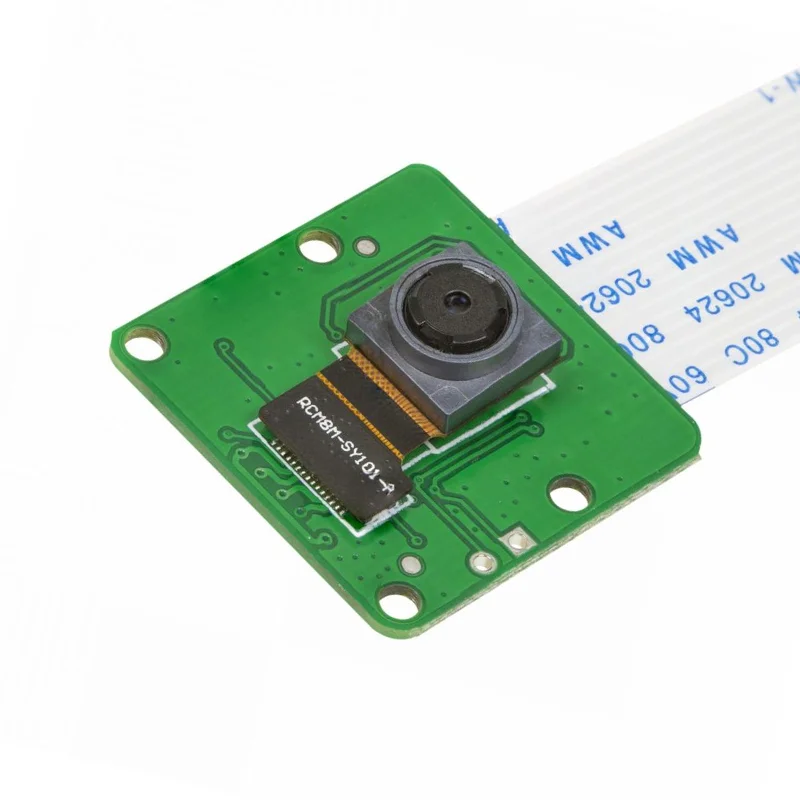

The Arducam IMX219 camera module integrates the Sony IMX219PQH5-C sensor, a 1/4.0-inch CMOS active pixel sensor delivering 8.08 million effective pixels. Engineered for high sensitivity, low dark current, and no smear, it utilizes R, G, and B primary color mosaic filters to produce accurate color reproduction. The module operates on multiple voltage supplies (analog 2.8V, digital 1.2V, IF 1.8V) for optimized power management.
Designed with a fixed-focus lens and a 62.2-degree diagonal field of view, it provides sharp imagery from 200mm to infinity. The integrated IR filter restricts sensitivity to the visible light spectrum, making it suitable for standard RGB imaging tasks in drones, robotic vision, and intelligent video analytics systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 5 × 1 cm |
