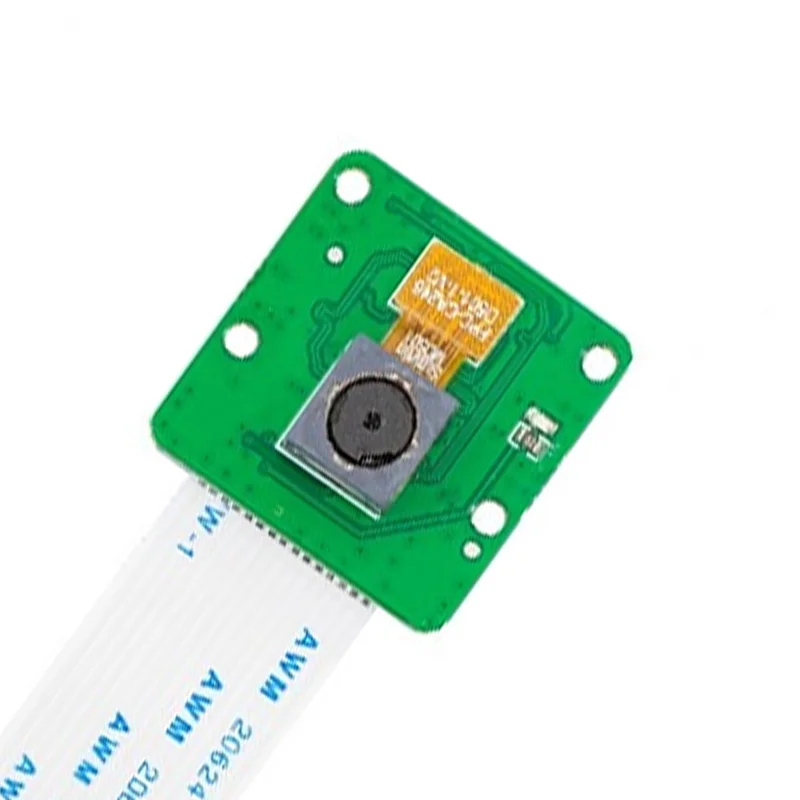

Arducam Auto Focus Camera Module, OV5647 5MP 1080P Motorized Lens for Raspberry Pi
The Arducam Auto Focus Camera Module integrates a 5MP OV5647 sensor with a motorized focus lens, offering software-controlled focus for Raspberry Pi (4/3B+/3) and other MCU/ARM platforms. It captures 1080P video and 2592×1944 stills, enabling precise, dynamic focus adjustment for embedded vision projects.
Features
- 5MP OV5647 sensor delivers sharp 1080P video and 2592×1944 still images for detailed computer vision.
- Motorized focus lens enables software-controlled, precise focus adjustment via keyboard commands or GPIO signals.
- Broad platform compatibility with Raspberry Pi 4/3B+/3, MCUs, ARM boards, DSP, and FPGA systems.
- Compact 25x24mm board size with integrated IR filter for visible-light-only imaging.
- Enables dynamic focus for applications like product inspection, microscopy, and smart surveillance.
Out of stock
The Arducam Auto Focus Camera Module is a specialized embedded vision component featuring a 5-megapixel OV5647 CMOS sensor paired with a motorized focus mechanism. Unlike fixed-focus modules, it allows developers to programmatically adjust the lens focus distance via simple UP/DOWN keyboard commands or direct GPIO control, providing dynamic focus from 80mm to infinity. This capability is essential for applications requiring variable working distances or high-magnification detail.

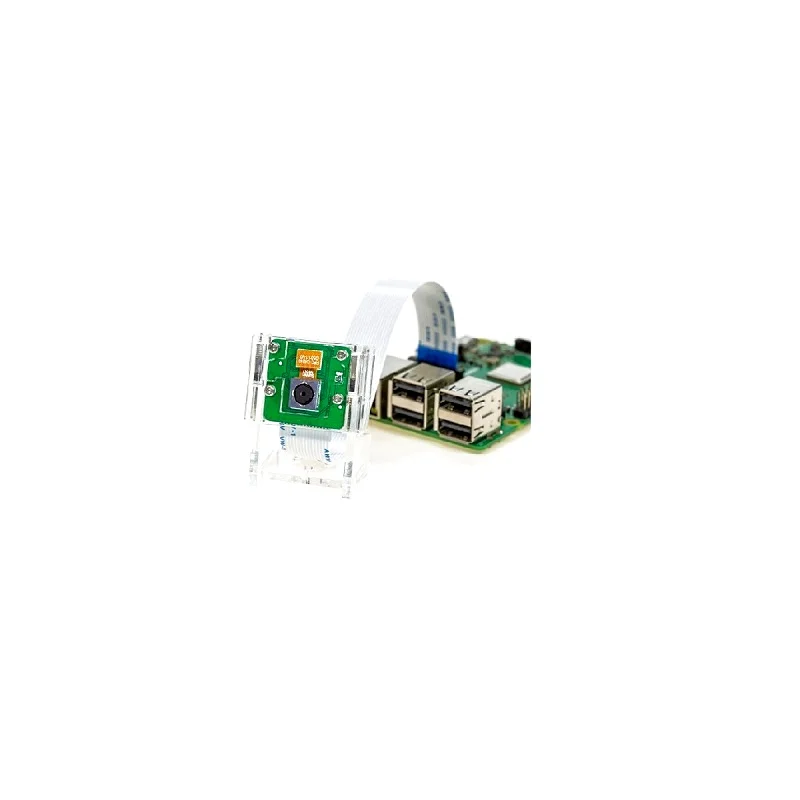

Designed for seamless integration with the Raspberry Pi camera interface (compatible with Pi 4, 3B+, and 3), it also supports a wide range of embedded platforms including ARM-based SBCs, microcontrollers, DSPs, and FPGAs. The module outputs a standard MIPI CSI-2 video stream, making it compatible with popular vision libraries like OpenCV and Picamera2. Its compact form factor and software-driven focus make it an ideal upgrade for robotics, automated inspection, and smart IoT devices where environmental conditions or target distances vary.
Additional Information
| Weight | 0.034 kg |
|---|---|
| Dimensions | 10 × 5.5 × 2 cm |
