Arducam B0091 CSI to HDMI Cable Extension Module w/ 15pin 60mm FPC Cable for Raspberry Pi Camera V3/V2/V1/HQ (2-Pack)
Arducam B0091 CSI to HDMI Cable Extension Module w/ 15pin 60mm FPC Cable for Raspberry Pi Camera V3/V2/V1/HQ (2-Pack) - Image 2
Arducam B0091 CSI to HDMI Cable Extension Module w/ 15pin 60mm FPC Cable for Raspberry Pi Camera V3/V2/V1/HQ (2-Pack) - Image 3
Arducam B0091 CSI to HDMI Cable Extension Module w/ 15pin 60mm FPC Cable for Raspberry Pi Camera V3/V2/V1/HQ (2-Pack) - Image 4
Arducam B0091 CSI to HDMI Cable Extension Module w/ 15pin 60mm FPC Cable for Raspberry Pi Camera V3/V2/V1/HQ (2-Pack) - Image 5
SKU: IOWC-0382
📋 GST Invoice Available

Arducam B0091 CSI to HDMI Cable Extension Module w/ 15pin 60mm FPC Cable for Raspberry Pi Camera V3/V2/V1/HQ (2-Pack)

₹1,739.00 (Inclusive of all taxes)
Out of Stock

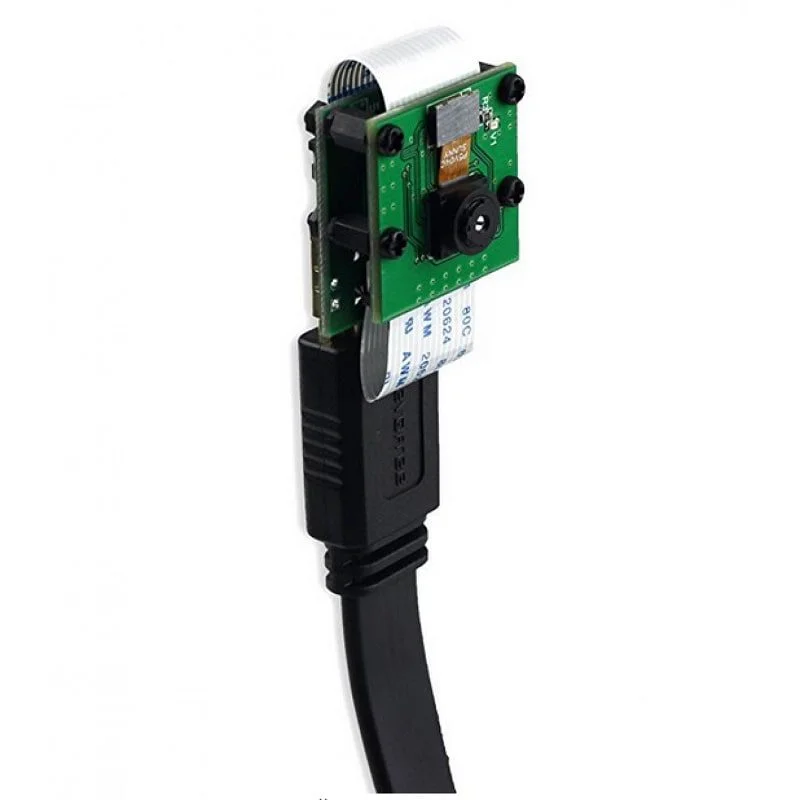

This Arducam B0091 adapter set converts the MIPI CSI-2 interface to HDMI, extending Raspberry Pi camera placement up to 3-5 meters from the host board with plug-and-play compatibility for official and Arducam camera modules.

Features

  • Extends camera placement up to 3-5 meters via HDMI cable, breaking the physical limitations of fragile FPC cables.
  • Plug-and-play compatibility with Raspberry Pi OS/libcamera and NVIDIA Jetson platforms, requiring zero software configuration.
  • Supports official Raspberry Pi Camera V3 (IMX708), V2 (IMX219), V1 (OV5647), HQ (IMX477), and Arducam’s OV5647/IMX219/IMX477/16MP/64MP series.
  • Features a reserved headphone jack and three solder pads for GPIO signal or audio extension alongside the video feed.
  • Robust adapter module design is more durable than standard FPC cables against folding, twisting, moisture, and temperature changes.

Out of stock

Description

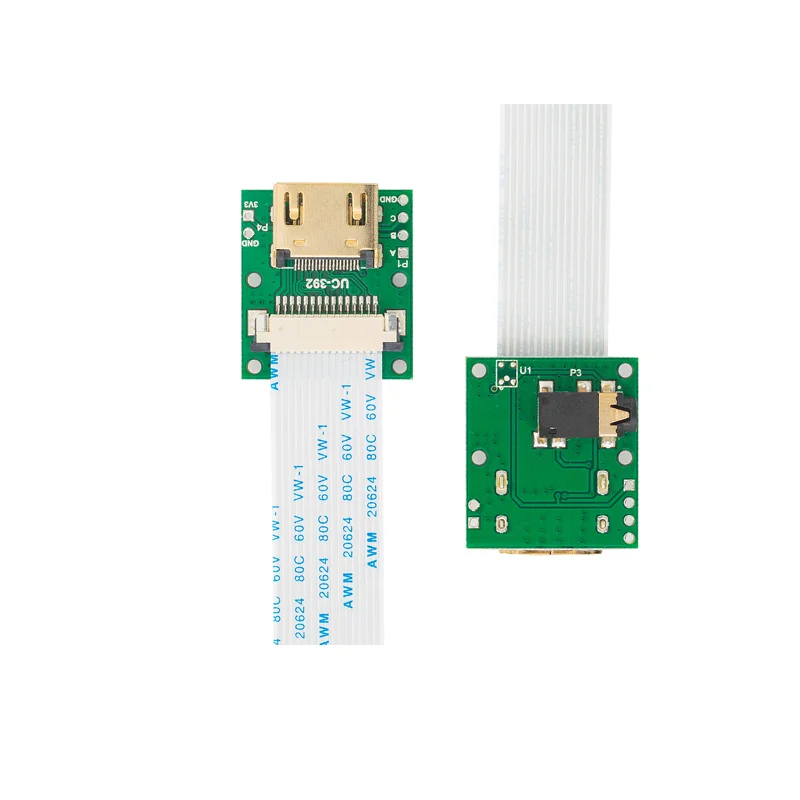

The Arducam B0091 CSI to HDMI Cable Extension Module is an interface conversion kit designed for embedded vision systems using Raspberry Pi or NVIDIA Jetson platforms. It translates the native MIPI CSI-2 camera bus to a standard HDMI signal, enabling the use of longer, more robust HDMI cables to physically separate the camera sensor from the host processor. This solves the reliability and placement constraints inherent in short, delicate 15-pin FPC ribbon cables.

Engineered for zero-configuration operation, the module works out-of-the-box with the latest Raspberry Pi OS and its libcamera software stack, as well as with NVIDIA’s JetPack SDK. Beyond video transmission, the board includes a 3.5mm headphone jack and auxiliary solder pads that break out GPIO signals, allowing for concurrent audio capture or custom digital I/O alongside the visual feed. This makes it ideal for professional, industrial, or educational projects requiring flexible camera positioning without sacrificing system integration or signal integrity.

Key Features

  • Converts MIPI CSI-2 camera interface to standard HDMI output for extended cable runs.
  • Plug-and-play operation with Raspberry Pi OS (libcamera) and NVIDIA Jetson systems.
  • Extends camera placement distance from host board to 3-5 meters using HDMI cables.
  • Includes a 3.5mm headphone jack and auxiliary solder pads for GPIO/audio signal extension.
  • Enhanced durability over standard FPC cables when subjected to bending, twisting, or harsh environments.
  • Broad compatibility with official Raspberry Pi and Arducam camera modules (V1, V2, V3, HQ, OV5647, IMX219, IMX477).
  • Compact form factor (27.63mm x 25.00mm) for easy integration into enclosures.

Applications

  • Raspberry Pi and NVIDIA Jetson-based computer vision and machine learning projects requiring flexible camera placement.
  • Industrial inspection systems where cameras need to be positioned away from the main control unit in harsh environments.
  • Educational and robotics platforms needing reliable, longer camera connections than standard FPC cables allow.
  • Smart security and surveillance setups using Raspberry Pi HQ or high-megapixel Arducam modules.
  • Prototyping and development where concurrent audio capture or GPIO control is needed alongside video feed.

Technical Specifications

Item TypeCable Extension Module
CompatibilityRaspberry Pi 4B/3B+/3B/2B/A/B/B+/Zero, NVIDIA Jetson
Supported SoftwareRaspberry Pi OS (libcamera), NVIDIA JetPack SDK
Interface ConversionMIPI CSI-2 to HDMI
Maximum Extension Distance3-5 meters (via HDMI cable)
Additional I/O3.5mm Headphone Jack, GPIO Solder Pads
Module Dimensions27.63 x 25.00 mm
Included FPC Cable60mm, 15-pin

Frequently Asked Questions

What Raspberry Pi camera modules are compatible with this Arducam B0091 adapter?

The adapter is plug-and-play compatible with the official Raspberry Pi Camera Module 3 (12MP IMX708), HQ Camera (12MP IMX477), V2 (8MP IMX219), and V1 (5MP OV5647). It also supports Arducam's OV5647, IMX219, IMX477, 16MP, and 64MP series cameras. No extra drivers or configuration are needed when using the latest Raspberry Pi OS with libcamera.

How do I connect and use this extension module with my Raspberry Pi 4?

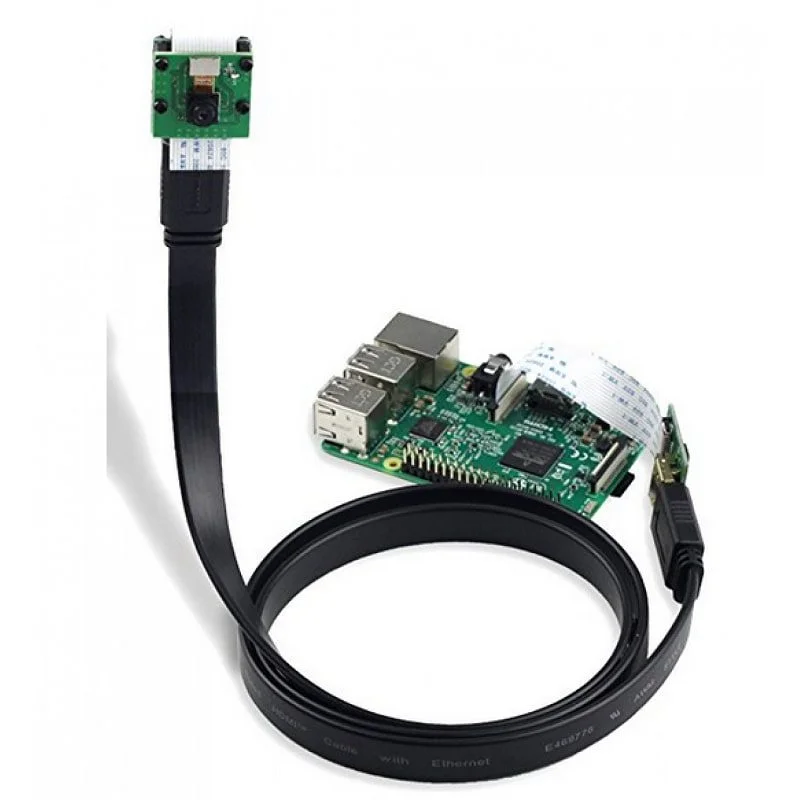

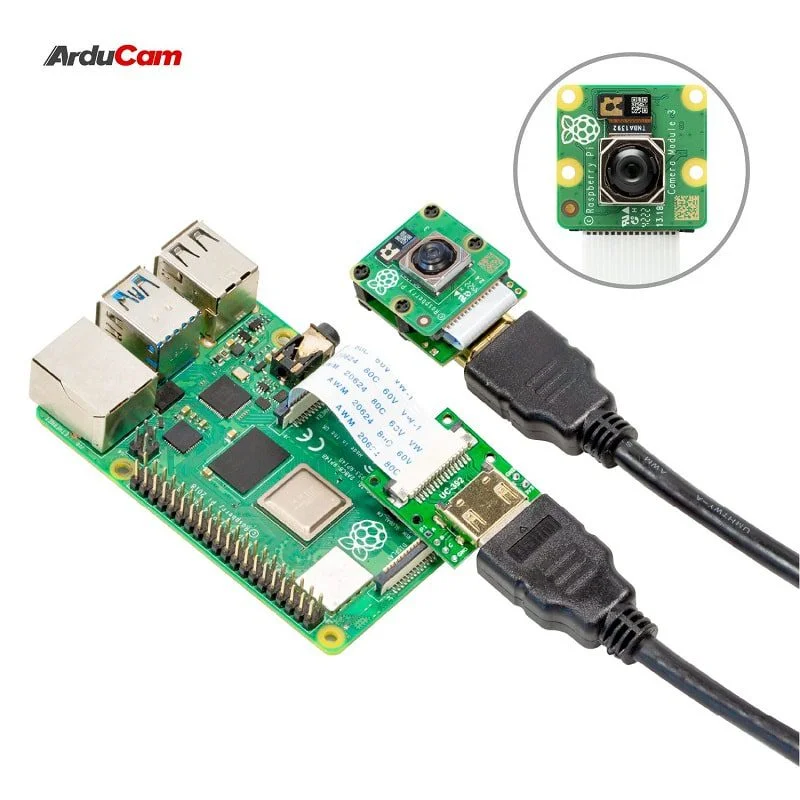

First, connect the included 60mm 15-pin FPC cable between your camera module and the adapter's CSI input. Then, connect a standard HDMI cable (up to 5 meters) from the adapter's HDMI output to a free HDMI port on your monitor or capture card. Finally, connect the adapter board to your Raspberry Pi's GPIO header for power. The system should recognize the camera immediately in Raspberry Pi OS with libcamera enabled.

Can I use the headphone jack on the adapter for audio input with my camera?

Yes, the 3.5mm headphone jack is reserved for audio signal extension. It provides a conduit for audio data alongside the video feed over the HDMI cable. This is useful if you are using a camera module with a microphone or need to route audio signals from a separate source concurrently with your video stream for applications like video conferencing or surveillance.

What is the maximum reliable cable length I can use for the HDMI extension?

You can reliably use HDMI cables up to 3 to 5 meters in length with this adapter. This distance is significantly greater than what is possible with standard FPC ribbons. For best signal integrity, use high-quality HDMI cables. The adapter itself handles the signal conversion, so no active repeaters are typically needed within this specified range for standard resolution camera feeds.

Is this adapter compatible with NVIDIA Jetson developer kits like the Jetson Nano or Orin?

Yes, the Arducam B0091 adapter is fully compatible with NVIDIA Jetson platforms, including Jetson Nano, Xavier NX, AGX Xavier, and Orin series. It works with the native camera interface in NVIDIA's JetPack SDK. The same plug-and-play principle applies: connect your MIPI CSI camera via the FPC cable to the adapter, then run an HDMI cable to your display. Ensure your camera sensor is supported by the JetPack camera software stack.

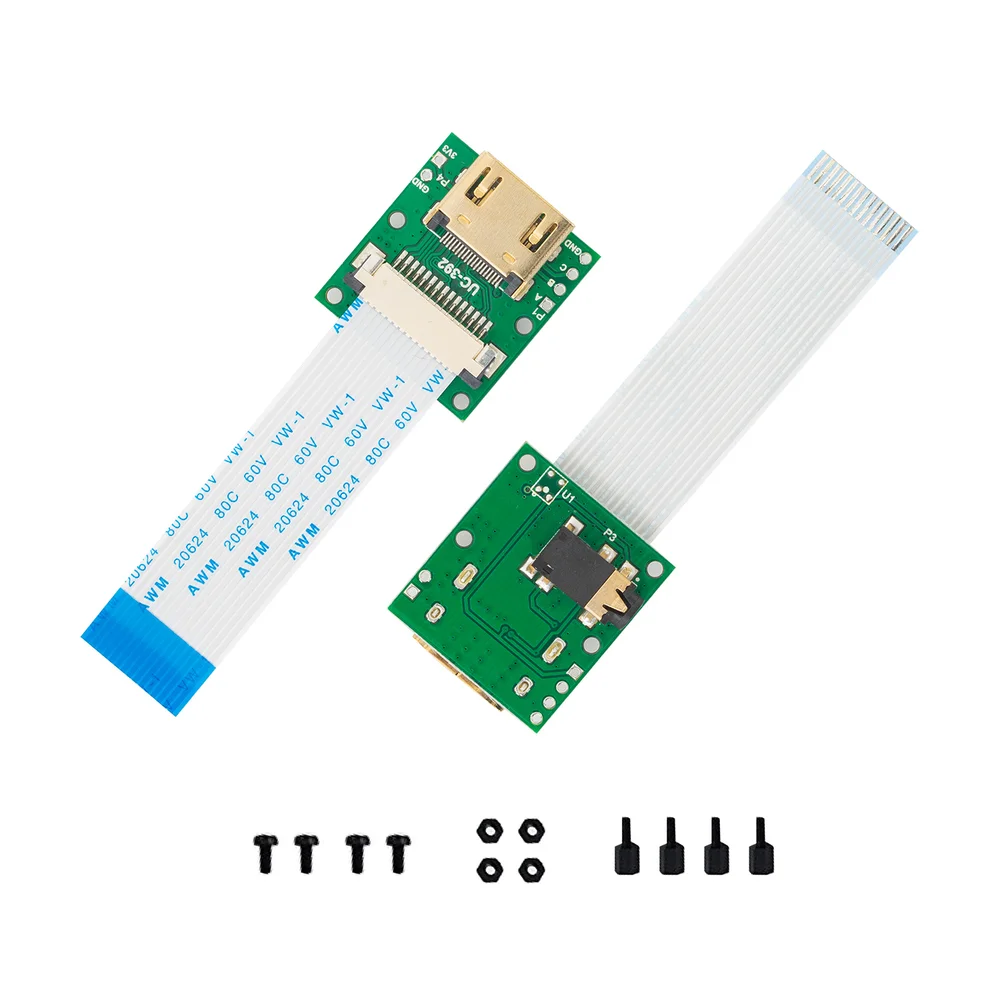

Package Includes

  • 2 x Arducam CSI to HDMI Cable Extension Module
  • 2 x 60mm 15-pin FPC Cable
  • 4 x Sets of M2 Screws

Additional Information

Weight 0.014 kg
Dimensions 7 × 11 × 2 cm
