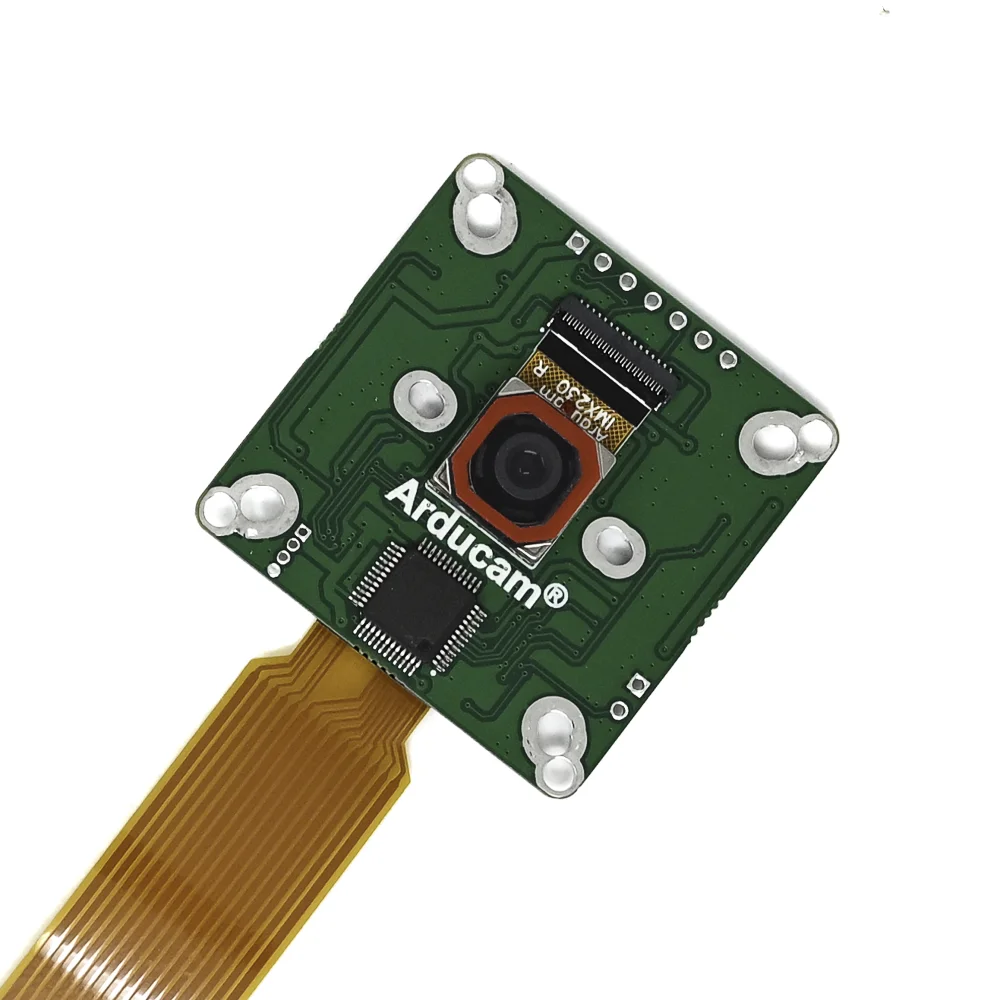

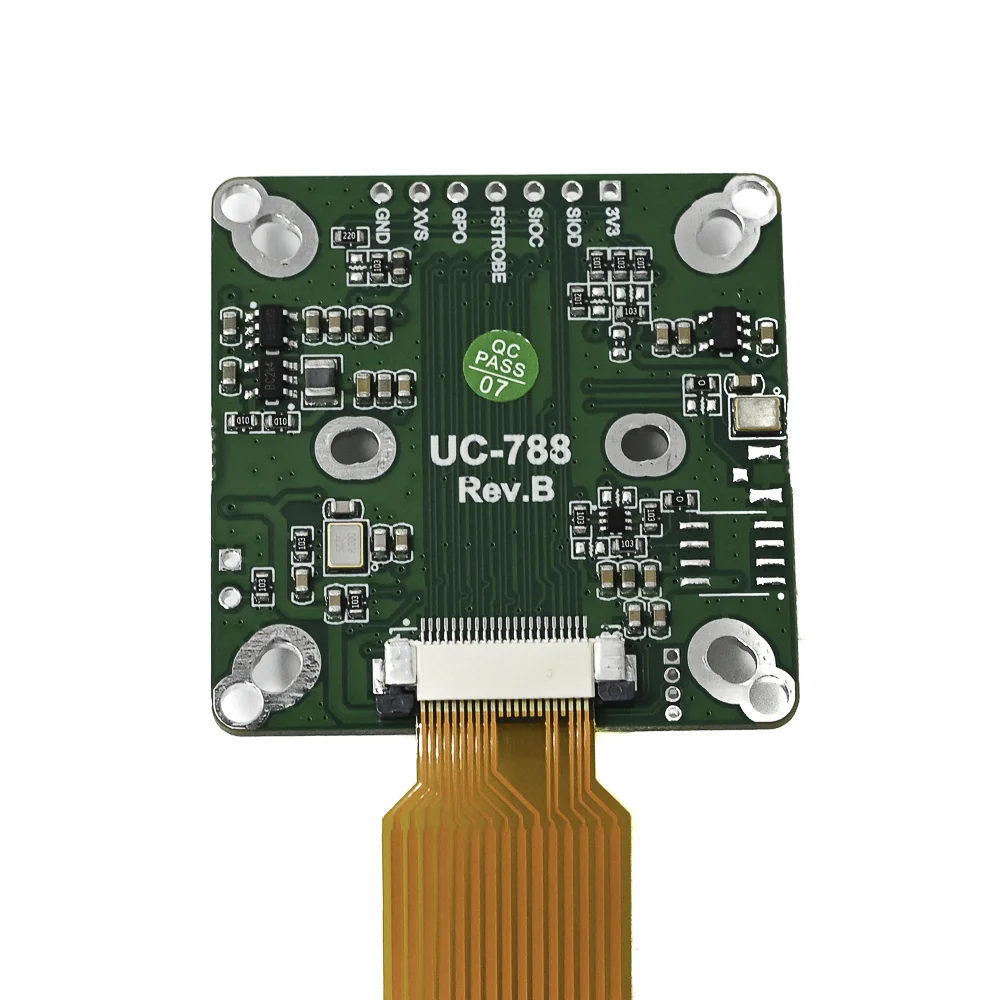

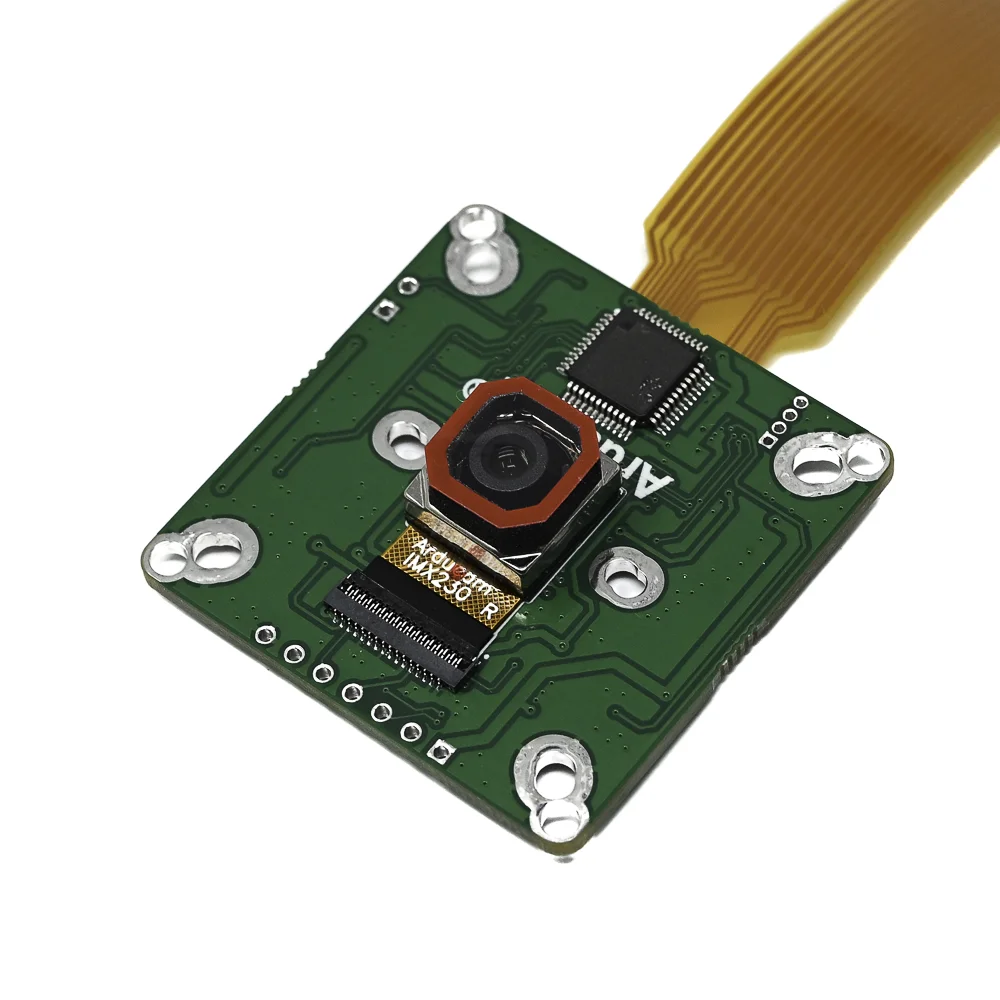

Arducam B0324 Pivariety 21MP IMX230 Camera Module for Raspberry Pi & Jetson
The Arducam B0324 Pivariety camera module integrates a high-resolution 21MP Sony IMX230 sensor, offering professional-grade imaging for Raspberry Pi 4B/3B+/CM4 and NVIDIA Jetson Orin Nano/NX platforms. It leverages libcamera and hardware ISP for auto-exposure, white balance, and programmable focus control.
Features
- 21MP Sony IMX230 Exmor RSâ„¢ sensor delivers high-resolution stills and video up to 9 fps.
- Motorized programmable focus control for precise image adjustment via software.
- Full compatibility with libcamera-based applications and Raspberry Pi hardware ISP.
- Integral IR filter ensures accurate color reproduction for visible light imaging.
- Broad platform support for Raspberry Pi 4B/3B+/CM4 and NVIDIA Jetson Orin Nano/NX.
Out of stock
The Arducam B0324 Pivariety camera module is engineered to unlock advanced imaging capabilities for single-board computers. It utilizes a 1/2.4-inch Sony IMX230 CMOS sensor with a 2-lane MIPI CSI-2 interface, providing a high-fidelity 21-megapixel output. The module is designed to work seamlessly with the Raspberry Pi’s hardware Image Signal Processor (ISP), enabling features like Auto Exposure (AE), Auto White Balance (AWB), and Lens Shading Correction (LSC) for superior image quality out of the box.
Its motorized focus mechanism allows for programmable control, making it suitable for applications requiring dynamic focal adjustment. The module is supported by the libcamera software stack, ensuring compatibility with a wide range of applications maintained by the Raspberry Pi and enabling future V4L2 support. This makes it a versatile upgrade path from the closed-source official Pi camera ecosystem.
Additional Information
| Weight | 0.066 kg |
|---|---|
| Dimensions | 7.5 × 9 × 3.5 cm |
