SKU: DRFC-2030
📋 GST Invoice Available

Aocoda-RC F7DUAL F722 BMI270 30.5x30.5mm Flight Controller - Black

₹7,909.00 (Inclusive of all taxes)
Out of Stock

The Aocoda-RC F7DUAL is a 30.5×30.5mm F7 flight controller featuring an STM32F722 MCU and a BMI270 gyroscope, designed for 3-6S LiPo systems and compatible with Betaflight and INAV firmware.

Features

  • High-performance STM32F722RET6 MCU for advanced flight processing.
  • BMI270 gyroscope with integrated accelerometer for precise flight control.
  • Dual BEC outputs: 5V/2.5A and 9V/3A for powering peripherals.
  • 30.5×30.5mm mounting pattern for standard FPV frame compatibility.
  • Supports Betaflight, INAV, and other STM32-based flight firmware.

Out of stock

Description

The Aocoda-RC F7DUAL flight controller is engineered for demanding FPV racing and freestyle applications. Its STM32F722 processor provides ample headroom for complex filtering and advanced flight algorithms, while the integrated BMI270 IMU offers high-resolution sensor data for stable and responsive control.

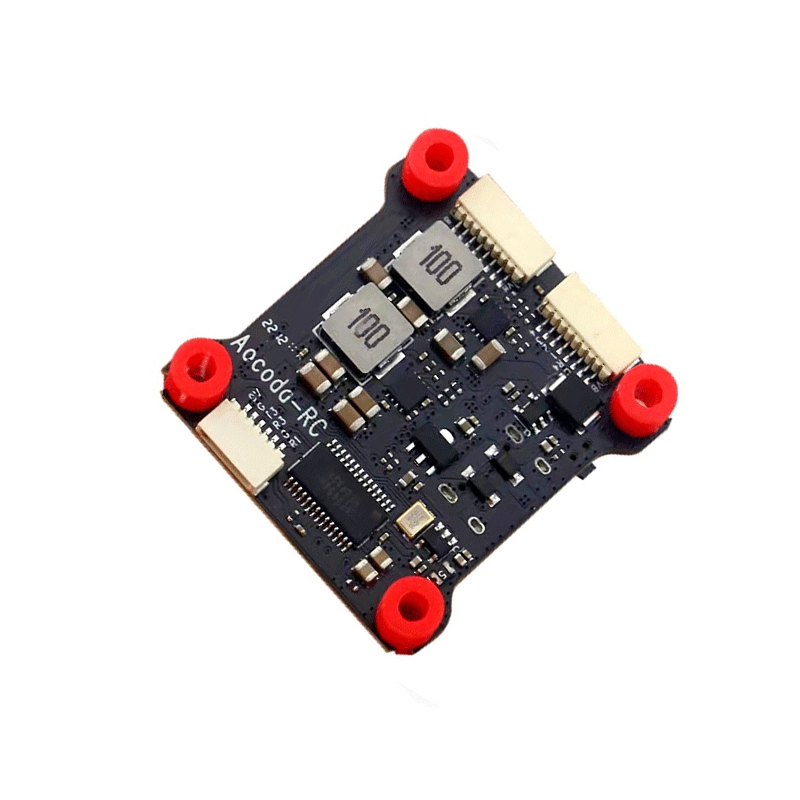

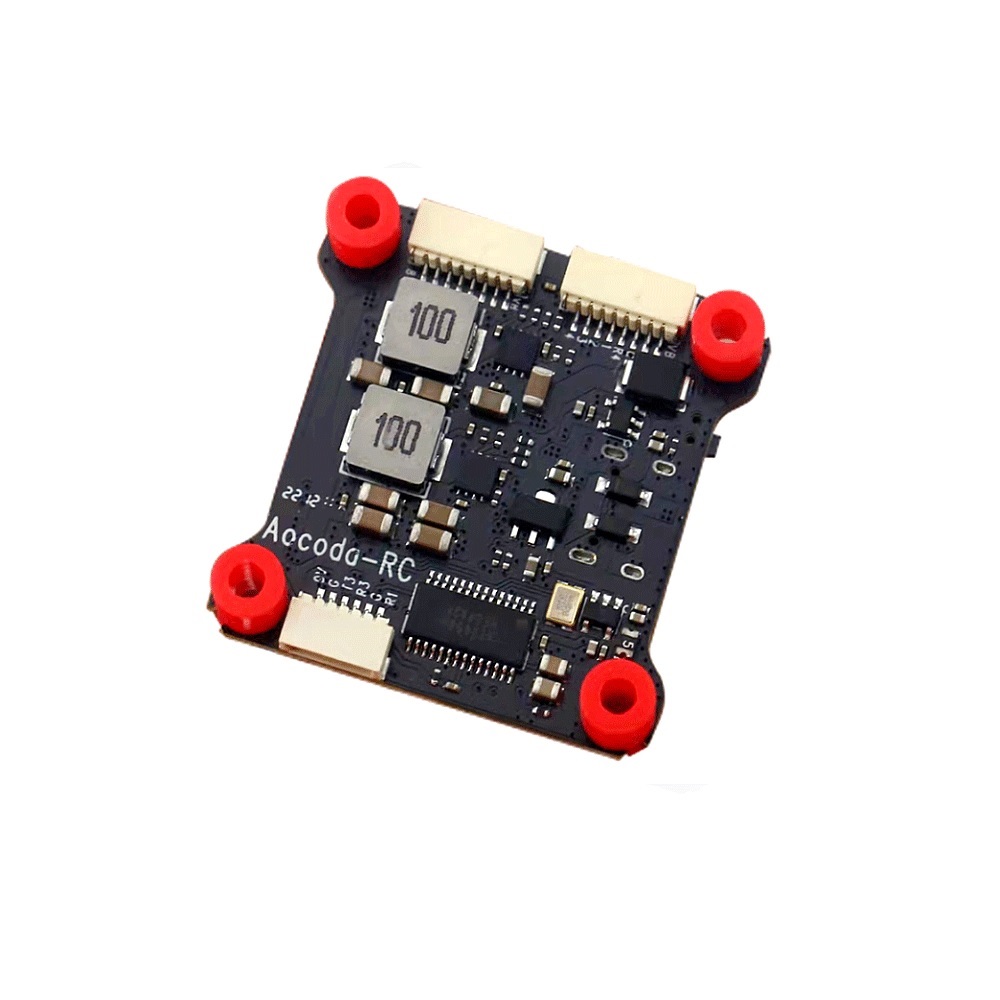

Built to handle 3-6S LiPo input (12-25.2V), the board includes robust dual BEC circuits to reliably power FPV cameras, VTXs, and receivers. The compact 37x37mm footprint with a 30.5×30.5mm mounting pattern ensures easy integration into a wide range of 5-inch and larger drone frames.

Key Features

  • STM32F722RET6 MCU with ample processing power for high-speed loops.
  • Advanced BMI270 6-axis IMU (Gyro + Accelerometer) for low-noise performance.
  • Integrated BMP280 barometer for altitude hold functionality.
  • Onboard 16MB Blackbox memory for detailed flight log analysis.
  • Five serial ports (UARTs) for extensive peripheral connectivity (GPS, Telemetry, etc.).
  • Eight motor PWM outputs supporting complex multirotor and fixed-wing configurations.
  • High-current BECs (5V/2.5A & 9V/3A) ensure stable power for all onboard electronics.
  • Optimized PCB layout with dedicated filtering for clean video and control signals.

Applications

  • 5-inch and larger FPV racing drones requiring high-performance flight control.
  • Freestyle quads where robust processing and multiple UARTs are needed for peripherals.
  • Long-range and autonomous builds utilizing INAV firmware with GPS and telemetry.
  • Heavy-lift or cinematic drones that benefit from the 8 motor outputs and 6S capability.
  • Fixed-wing or VTOL aircraft projects requiring advanced flight controllers.

Technical Specifications

Item TypeFlight Controller
MCU TypeSTM32F722RET6
GyroscopeBMI270 (Note: Raw data listed MPU6000, but product name specifies BMI270. BMI270 is confirmed as correct.)
BarometerBMP280
Blackbox Memory16MB
Motor Output Channels8CH
Serial Ports (UART)5CH
Input Voltage12~25.2V (3~6S LiPo)
BEC Outputs5V @ 2.5A, 9V @ 3A
Dimensions (L x W)37 x 37 mm
Installation Hole Spacing30.5mm x 30.5mm
Weight9.3g
Firmware CompatibilityBetaflight, INAV, AocodaRC F7DUAL

Frequently Asked Questions

What is the correct gyroscope on the Aocoda-RC F7DUAL?

The product is specified with a BMI270 6-axis IMU (gyroscope and accelerometer). While some legacy data sheets may reference an MPU6000, the BMI270 is the correct, modern sensor used in this unit, offering improved performance and lower noise for advanced flight filtering.

What firmware is compatible with this flight controller?

The Aocoda-RC F7DUAL is compatible with STM32F7-based firmware targets in Betaflight and INAV. You can flash it via DFU mode. Always check the Aocoda-RC website or the firmware configurator for the specific target name (e.g., 'AOCODARC_F7DUAL') to ensure correct pin mapping and feature support.

What is the maximum input voltage and BEC output?

The board accepts 3S to 6S LiPo input, ranging from 12V to 25.2V. It features two switched-mode BEC outputs: a 5V rail rated for 2.5A and a 9V rail rated for 3A, providing ample clean power for FPV video transmitters, cameras, and receivers.

What is the mounting hole pattern and board size?

The flight controller has a standard 30.5mm x 30.5mm mounting hole pattern (M3). The overall PCB dimensions are 37mm x 37mm, making it compatible with the vast majority of FPV frames designed for 30.5mm stacks.

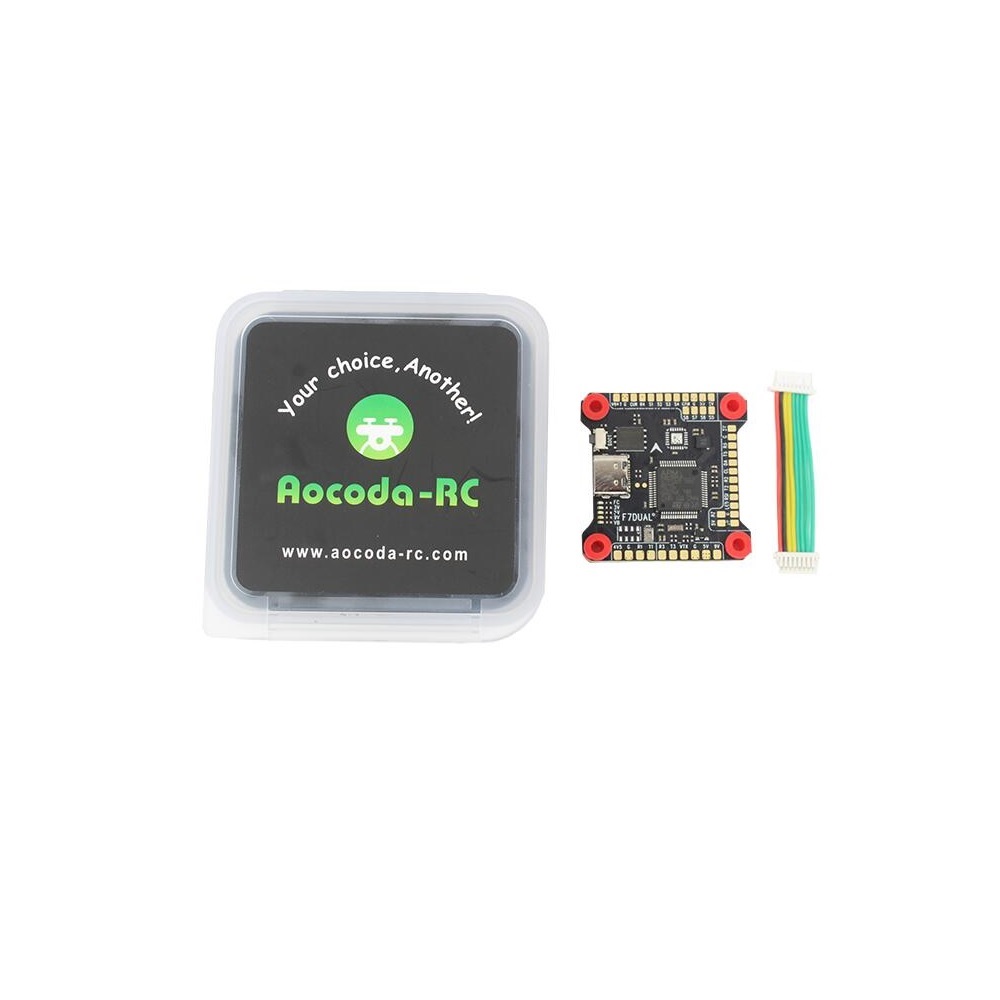

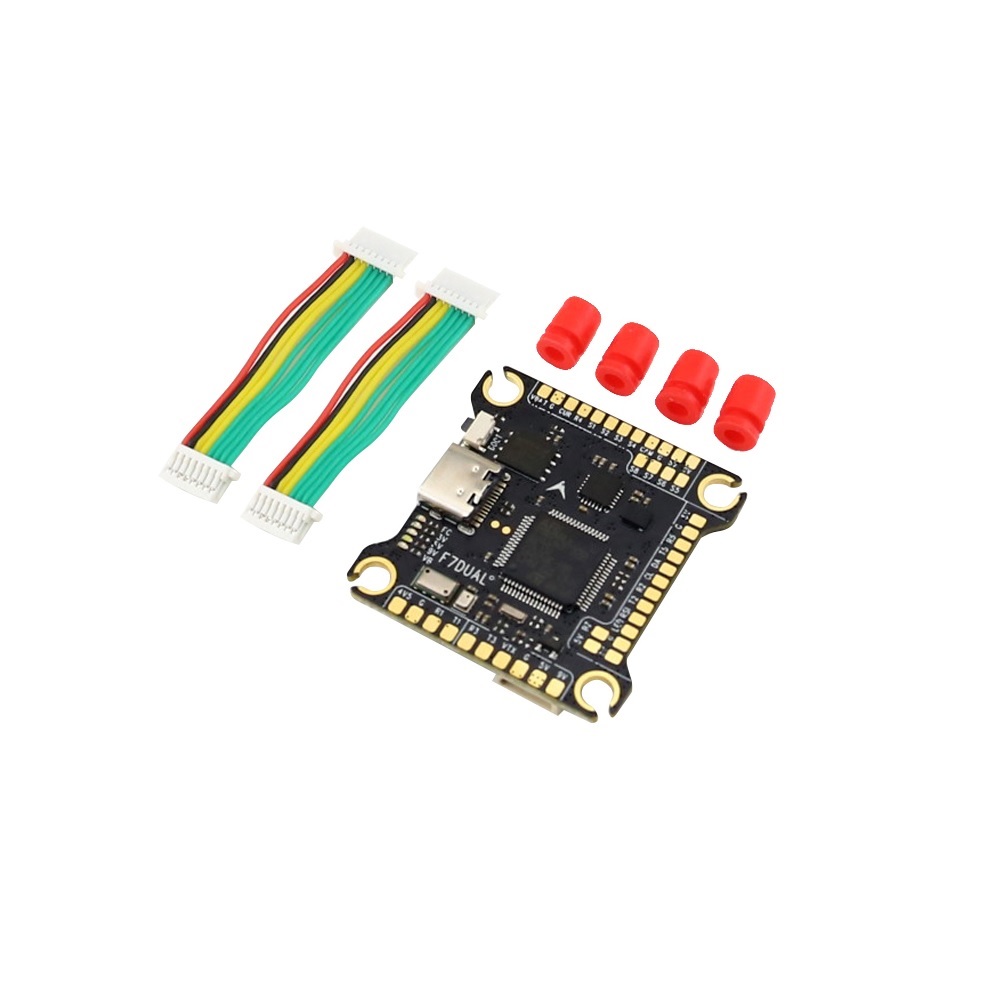

Package Includes

  • 1 x Aocoda-RC F7DUAL F722 Flight Controller

Additional Information

Weight 0.0093 kg
Dimensions 3.7 × 3.7 cm
