Alinx AXU15EGB Dev Board Kit w/ AMD Zynq US+ MPSoC ZU15EG
The Alinx AXU15EGB is a high-performance development board kit featuring the AMD/Xilinx Zynq UltraScale+ MPSoC (XCZU15EG), designed for advanced embedded vision, AI, and high-speed data processing applications. It includes a System-on-Module, base board, and accessories for immediate deployment.
Features
- Powered by AMD/Xilinx Zynq UltraScale+ MPSoC XCZU15EG-2FFVB1156I with ARM Cortex-A53, Cortex-R5, and Mali-400MP2 GPU for intensive compute tasks.
- Features 4 GB DDR4 SDRAM on the Processing System (PS) and 2 GB DDR4 on the Programmable Logic (PL) for high-bandwidth data handling.
- Equipped with dual SFP+ slots (12.5Gbps), Gigabit Ethernet, DisplayPort, MIPI, and an FMC HPC connector for versatile high-speed I/O expansion.
- Includes 8 GB eMMC Flash and 64 MB QSPI Flash for robust onboard storage, alongside M.2 and Micro SD interfaces.

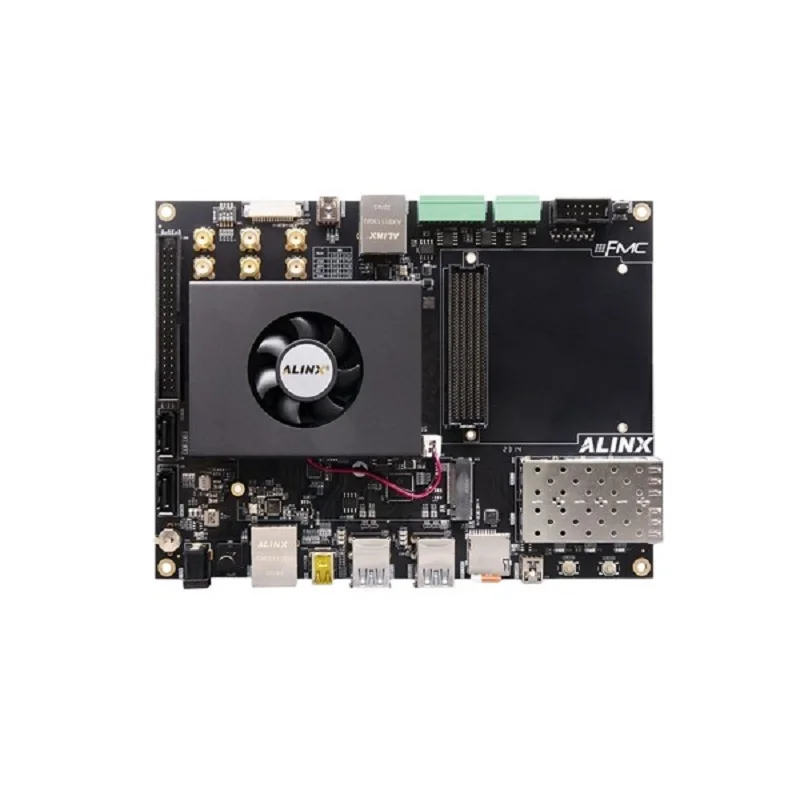

- Complete kit with base board, heatsink, 12V power adapter, USB downloader, and acrylic mounting for rapid prototyping and system integration.
Out of stock

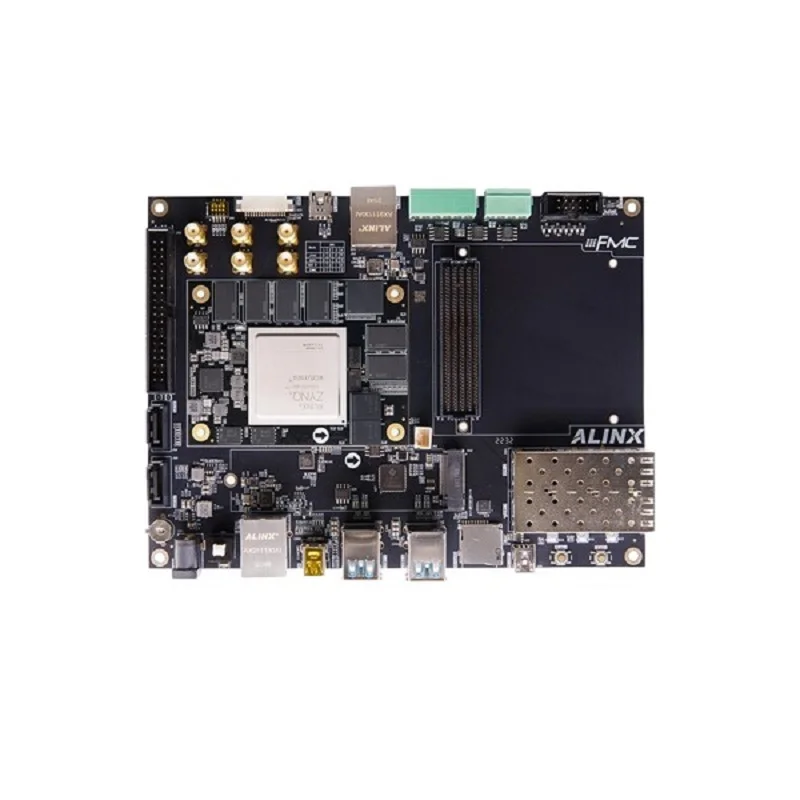

The Alinx AXU15EGB Development Board Kit provides a comprehensive platform for developing and prototyping sophisticated embedded systems based on the 16nm FinFET+ AMD/Xilinx Zynq UltraScale+ MPSoC architecture. The board integrates a high-performance processing subsystem with a flexible FPGA fabric, enabling real-time signal processing, machine vision pipelines, and high-throughput network functions.
Its extensive connectivity suite, including dual SFP+ cages for optical networking, DisplayPort for 4K video output, dual-lane MIPI for camera interfaces, and a high-pin-count FMC connector, makes it ideal for data acquisition, motor control, and software-defined radio applications. The modular design separates the core MPSoC module from the carrier board, simplifying thermal management and system customization.
Additional Information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 8 × 12 × 3 cm |
