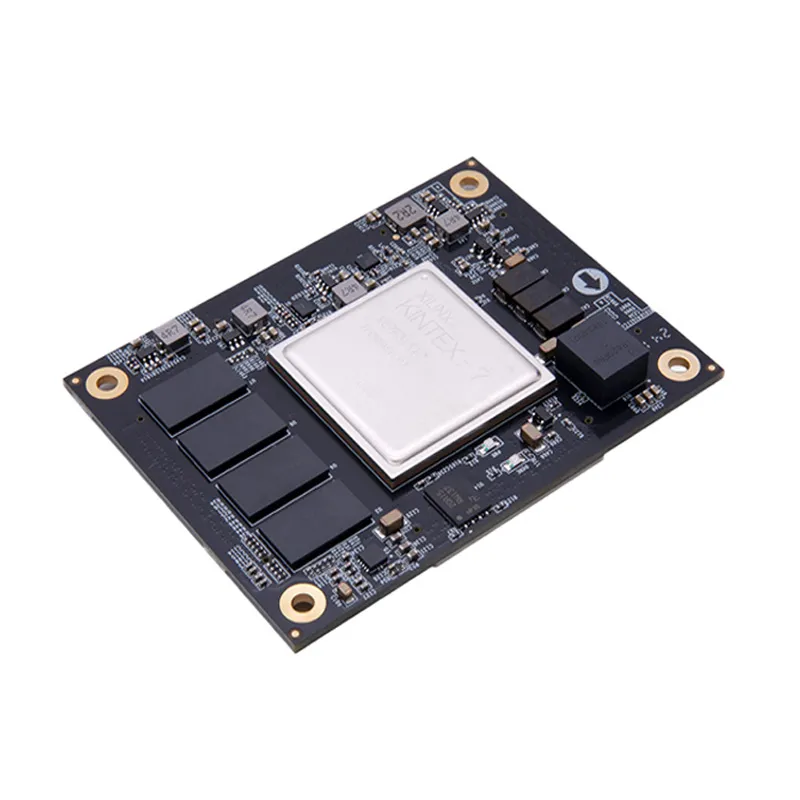

Alinx AC7K325B FPGA SoM AMD Kintex-7 XC7K325T

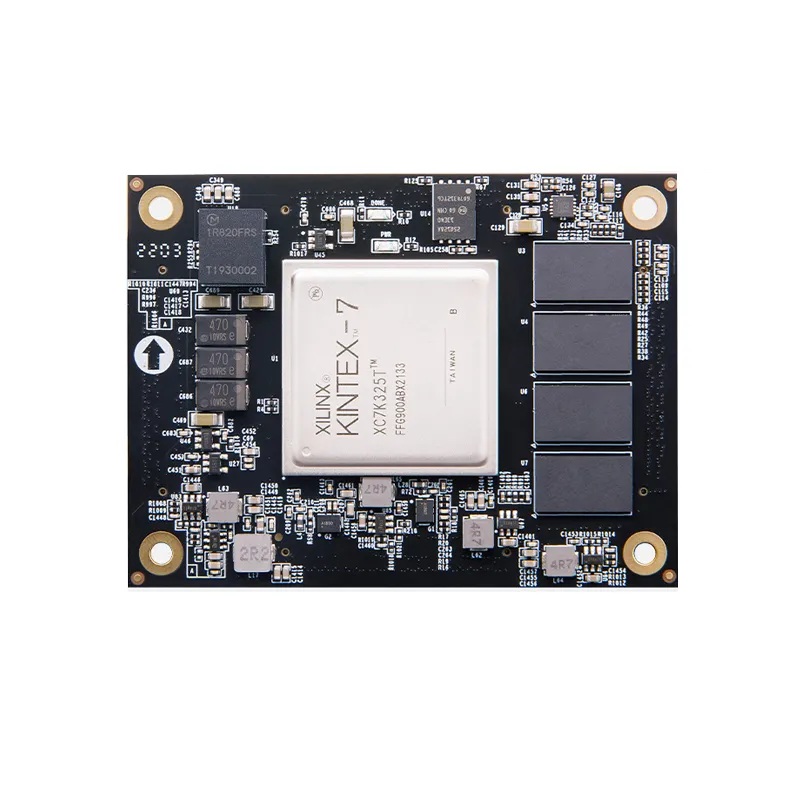

Alinx AC7K325B FPGA SoM AMD Kintex-7 XC7K325T - Image 2

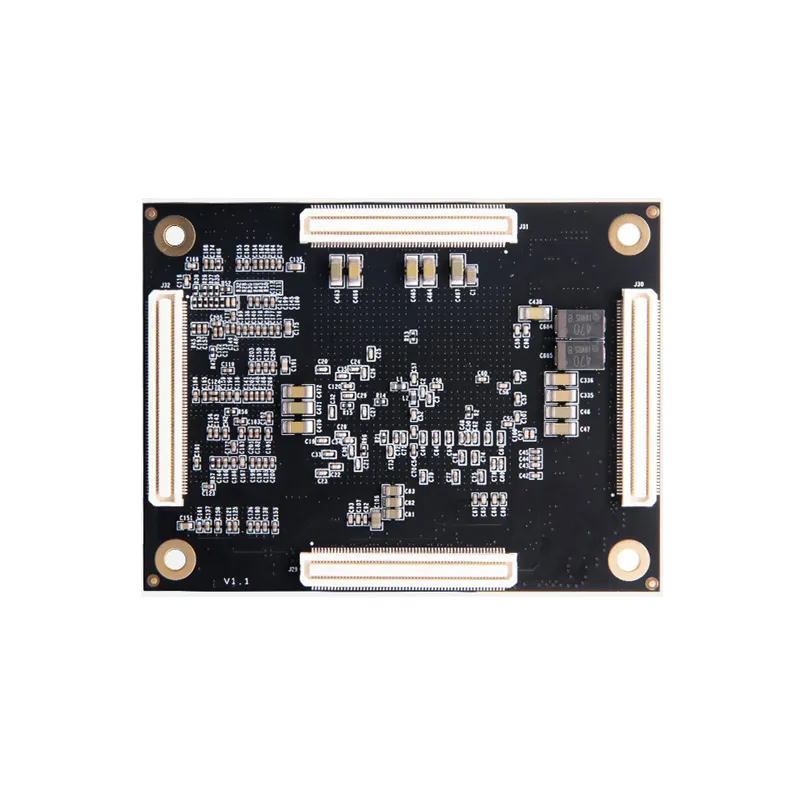

Alinx AC7K325B FPGA SoM AMD Kintex-7 XC7K325T - Image 3
SKU: SBCD-0564
📋 GST Invoice Available

Alinx AC7K325B FPGA SoM AMD Kintex-7 XC7K325T

₹94,499.00 (Inclusive of all taxes)
Out of Stock

The Alinx AC7K325B is a high-performance FPGA System-on-Module featuring an AMD Kintex-7 XC7K325T. It offers 2GB DDR3 RAM, 16MB QSPI Flash, and 16 high-speed GTX transceivers, making it ideal for demanding embedded applications requiring robust data processing and high-speed I/O.

Features

  • High-performance AMD Kintex-7 XC7K325T FPGA SoM.
  • Integrates 2GB DDR3 RAM and 16MB QSPI Flash for data storage.
  • Features 16 high-speed GTX transceivers supporting up to 12.5 Gbps.
  • Provides 276 user I/Os and a PCIe Gen2 interface.
  • Operates reliably across a wide -40°C to +85°C industrial temperature range.

Out of stock

Description

The Alinx AC7K325B is a high-performance FPGA System-on-Module (SoM) engineered around the AMD Kintex-7 XC7K325T, specifically tailored for demanding embedded applications. This compact module, measuring 80 x 60 mm, integrates 2 GB of 64-bit DDR3 SDRAM, 16 MB of QSPI Flash, and 16 high-speed GTX transceivers capable of up to 12.5 Gbps, ensuring exceptional data throughput and versatility.

Leveraging a robust 28nm architecture, the AC7K325B provides 276 FPGA user I/Os and a PCIe Gen2 interface, making it an optimal solution for advanced industrial control, high-bandwidth communication systems, complex image and video processing, medical equipment, and network security appliances. Designed for mission-critical projects, it operates reliably across a wide industrial temperature range of -40°C to +85°C, powered by a single 5V supply.

Key Features

  • Utilizes AMD/Xilinx Kintex-7 XC7K325T FPGA with optimized 28nm architecture.
  • Onboard 2 GB (64-bit) DDR3 SDRAM for high-speed data buffering.
  • Integrated 16 MB QSPI Flash for configuration and user data storage.
  • Equipped with 16 GTX transceivers, each supporting data rates up to 12.5 Gbps.
  • Offers 276 programmable FPGA user I/Os for extensive peripheral connectivity.
  • Includes 1 x PCIe Gen2 interface for high-bandwidth host communication.
  • Designed as a pluggable module via 4 Panasonic board-to-board connectors.
  • Ensures reliable operation within a wide industrial temperature range of -40°C to +85°C.
  • Requires a single 5V power supply and features a compact 80 x 60 mm form factor.

Applications

  • High-bandwidth communication systems and network infrastructure.
  • Advanced image and video processing, including real-time analytics.
  • Complex data analysis and signal processing.
  • Medical imaging and diagnostic equipment.
  • Industrial control systems and automation.
  • Network information security and data encryption.

Technical Specifications

Item TypeFPGA Development Board
Model No. / NameAC7K325B
FPGAAMD/Xilinx Kintex-7 XC7K325T
Memory Capacity2 GB DDR3 SDRAM (64-bit)
Flash16 MB QSPI Flash
GTX Transceivers16 (up to 12.5 Gbps)
No. of I/O pins276 (user I/Os)
PCIe Interface1 x Gen2
Operating Temperature-40°C to +85°C
Supply Voltage5V single supply
Connector Type4 x Panasonic board-to-board
Form Factor80 x 60 mm

Frequently Asked Questions

What is the primary FPGA used on the Alinx AC7K325B SoM?

The Alinx AC7K325B SoM is built around the AMD Kintex-7 XC7K325T FPGA, utilizing a 28nm optimized architecture. This high-performance device offers 326,080 logic cells and 840 DSP slices, making it suitable for high-demand signal processing and embedded acceleration tasks.

What memory and high-speed interfaces does the AC7K325B provide?

It integrates 2 GB of 64-bit DDR3 SDRAM for fast data access and 16 MB of QSPI Flash for configuration and user data. For high-speed data transfer, the module features 16 GTX transceivers, supporting speeds up to 12.5 Gbps, alongside a PCIe Gen2 interface.

What is the power supply requirement and operating temperature range?

The Alinx AC7K325B requires a single 5V power supply for operation. It is designed to function reliably across a wide industrial temperature range, from -40°C to +85°C, making it suitable for harsh environmental conditions.

How does the AC7K325B facilitate expansion and connectivity?

Connectivity is provided through 4 Panasonic board-to-board connectors, exposing 276 FPGA user I/Os. This extensive I/O count, coupled with high-speed transceivers and PCIe, enables flexible integration with custom carrier boards for diverse embedded applications and peripheral interfaces.

What are the typical applications for this Kintex-7 FPGA SoM?

The AC7K325B is ideal for applications demanding high-performance processing and high-speed I/O. Common use cases include advanced communication systems, real-time image and video processing, industrial automation and control, complex data analytics, and network security appliances requiring custom hardware acceleration.

Package Includes

  • 1 x Alinx AC7K325B FPGA SoM with AMD Kintex-7 XC7K325T

Additional Information

Weight 0.15 kg
Dimensions 10 × 5 × 3 cm
