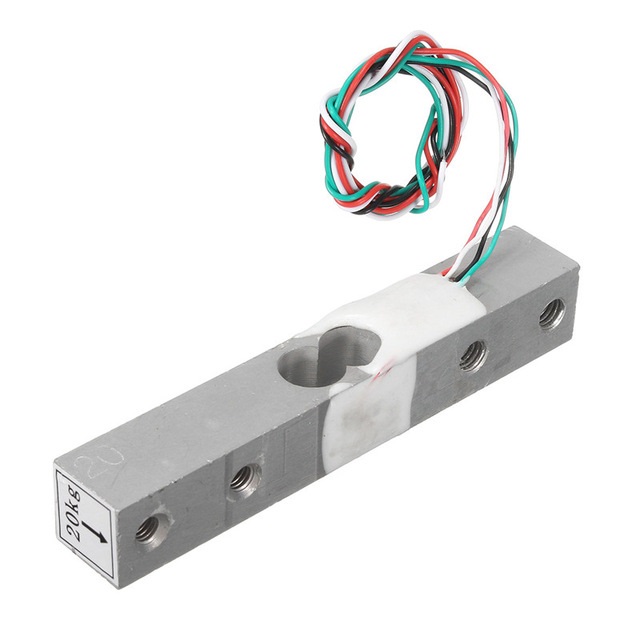

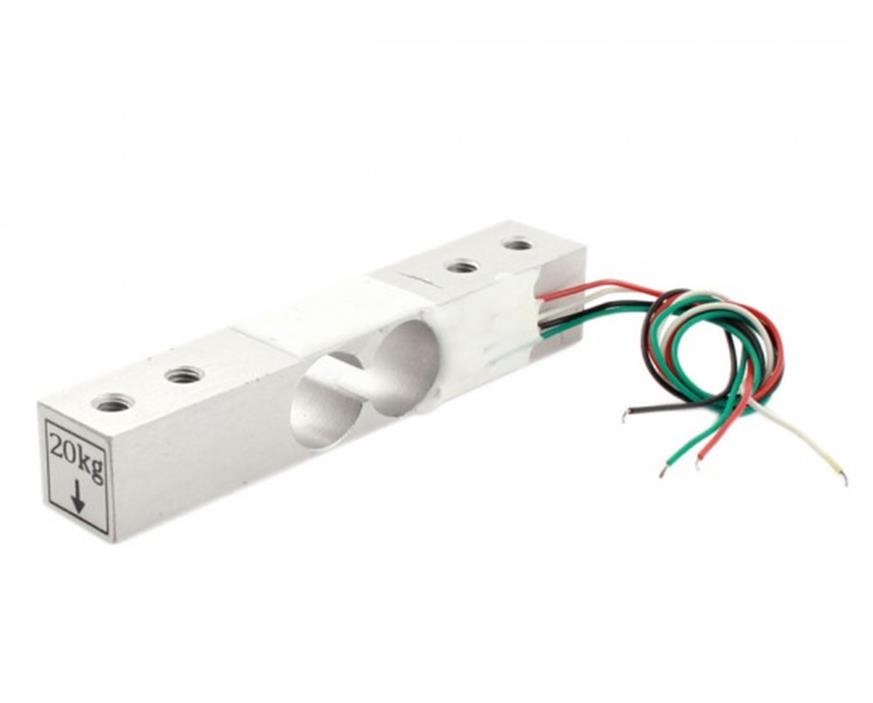

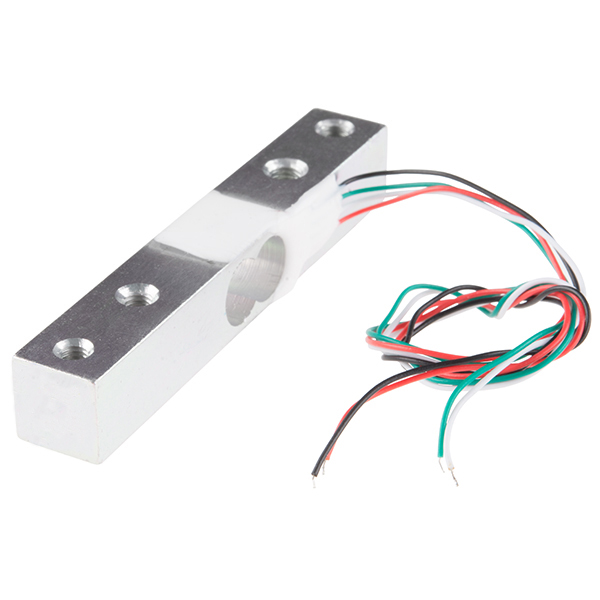

YZC-133 20kg Load Cell Sensor with Wires
The YZC-133 is a 20kg capacity aluminum alloy load cell sensor utilizing a strain gauge Wheatstone bridge configuration. It provides a millivolt-per-volt output signal compatible with instrumentation amplifiers and 24-bit ADCs like the HX711 for precise weight measurement in Arduino, Raspberry Pi, and industrial control systems.
Features
- 20kg Rated Capacity: Measures tensile and compressive loads up to 20 kilograms with high linearity.
- Strain Gauge Bridge Output: Provides a 1.0 ±0.15mV/V differential signal for precise measurement.
- Robust Aluminum Construction: Features an IP65-rated sealed housing for durability in industrial environments.
- Wide Operating Range: Functions from -20°C to +65°C with stable performance.
- Direct HX711 ADC Compatibility: Color-coded wires (Red+, Black-, Green+, White-) simplify connection to 24-bit converter modules.
Out of stock
The YZC-133 is a straight-bar, resistive strain gauge load cell designed for precision weighing and force measurement applications. It operates on the principle of a Wheatstone bridge, where applied force alters the resistance of bonded strain gauges, producing a proportional millivolt-level differential output signal. This analog signal requires conditioning via an instrumentation amplifier or a dedicated 24-bit analog-to-digital converter (ADC) like the HX711 for microcontroller integration.
Constructed from aluminum alloy and sealed to IP65 standards, the sensor is protected against dust ingress and water jets, making it suitable for use in industrial scales, process control, and testing equipment. Its low creep (0.03% F.S./30min) and hysteresis specifications ensure stable, repeatable measurements under sustained or cyclic loading conditions. The sensor is mounted via four threaded holes (two M3.3 and two M4) with one end fixed and the other floating to properly transfer the applied load to the sensing element.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 8 × 3 × 1 cm |
