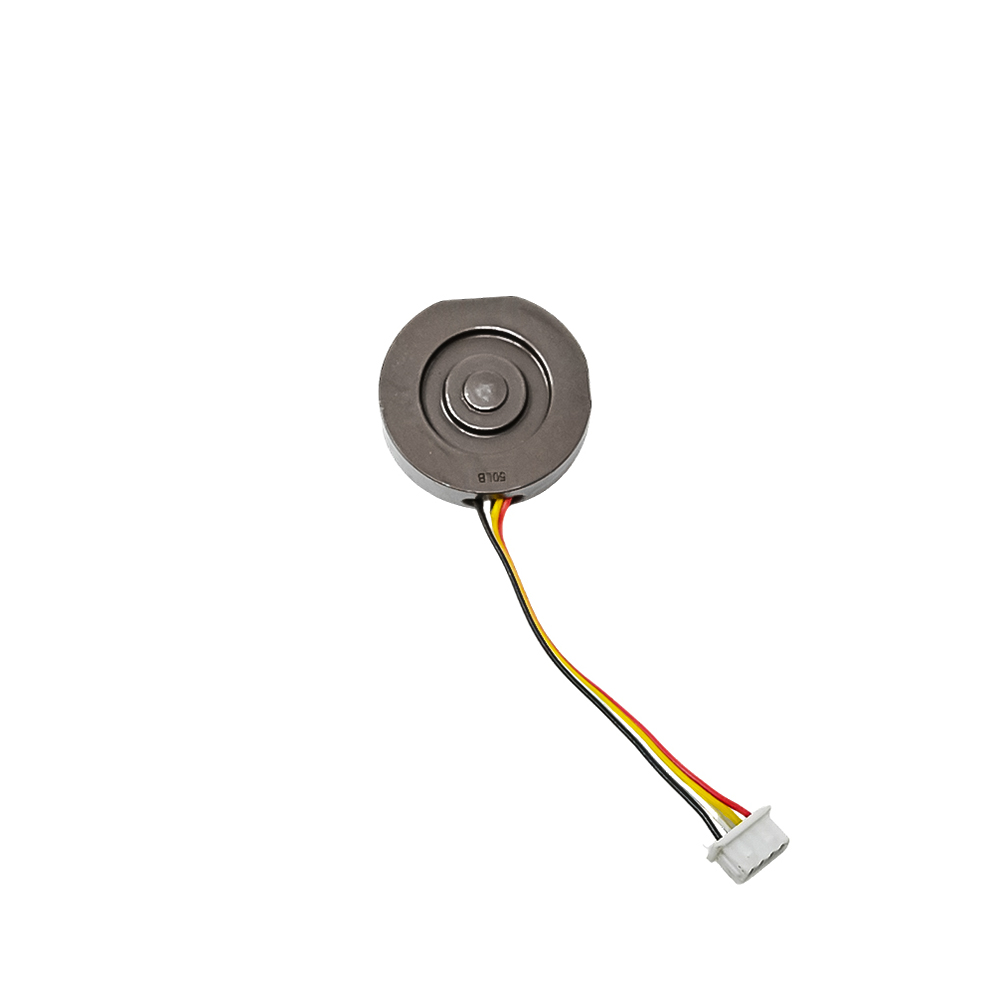

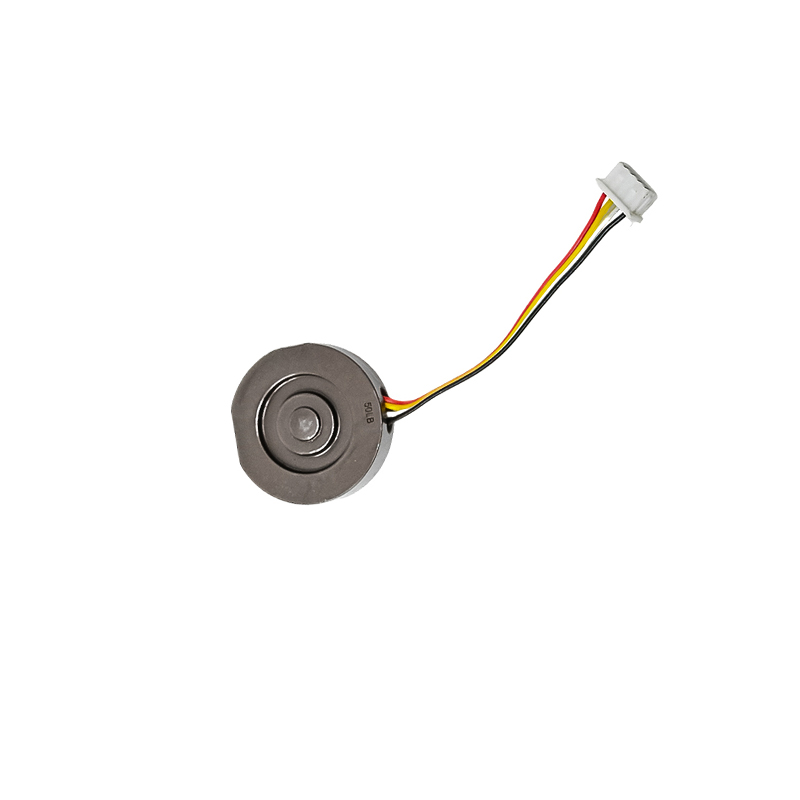

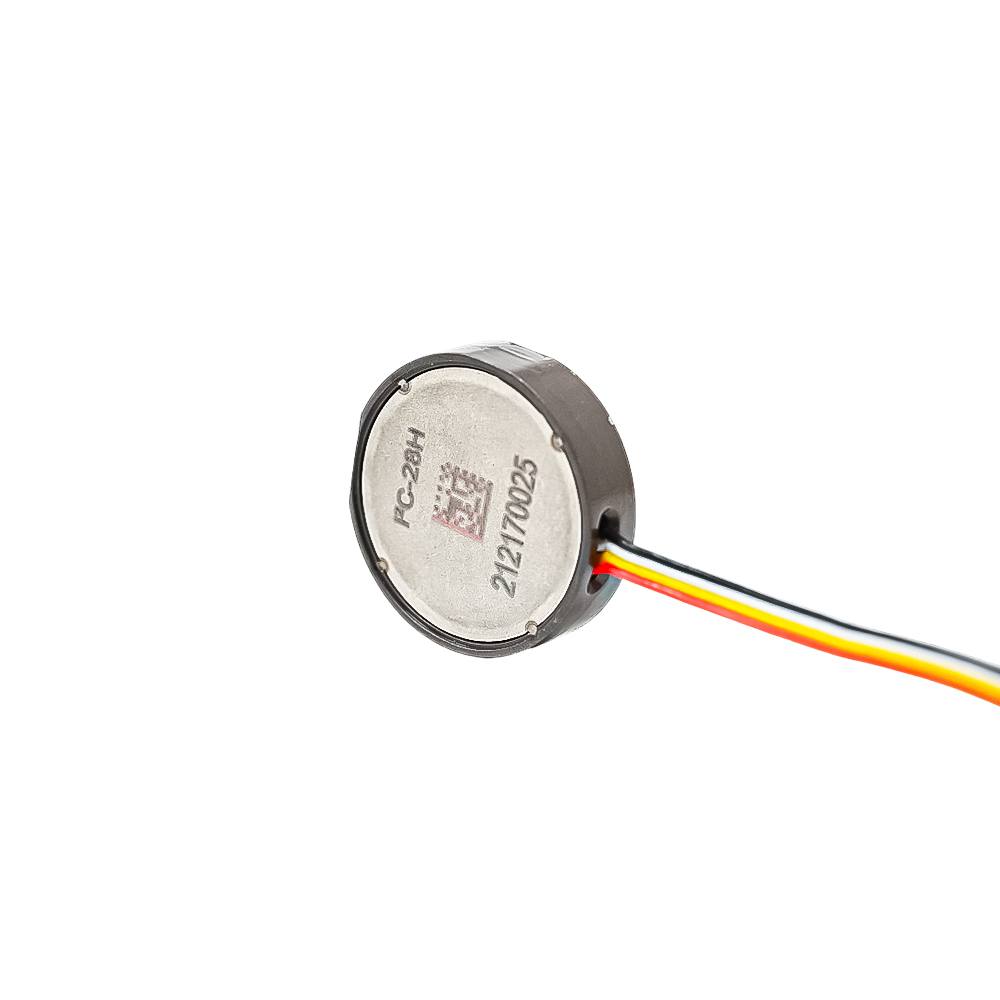

TE Connectivity FX29K0-040B-0025-L Load Cell Sensor, 25lb Capacity, 5.5V Excitation, 4-Wire Ribbon Cable

The TE Connectivity FX29K0-040B-0025-L load cell is rated for a maximum excitation voltage of 5.5V DC. It is crucial not to exceed this voltage to prevent damage to the internal strain gauge circuitry and ensure accurate, long-term measurement performance.

This load cell uses a standard 4-wire (or 4-conductor) connection scheme typically comprising excitation positive (E+), excitation negative (E-), signal positive (S+), and signal negative (S-) wires. The included ribbon cable terminates in a connector that mates with compatible instrumentation amplifiers or signal conditioners designed for strain gauge bridges.

The sensor is designed to operate reliably within an ambient temperature range of 0°C to 50°C. For storage and non-operational conditions, it can withstand temperatures from -40°C to +85°C without degradation of its sensing characteristics.

No, the FX29K0-040B-0025-L is specifically designed as a compression-type load cell. It is engineered to measure forces applied in a single direction that compresses the sensing element. Applying tensile (pulling) forces may provide incorrect readings or potentially damage the sensor.
