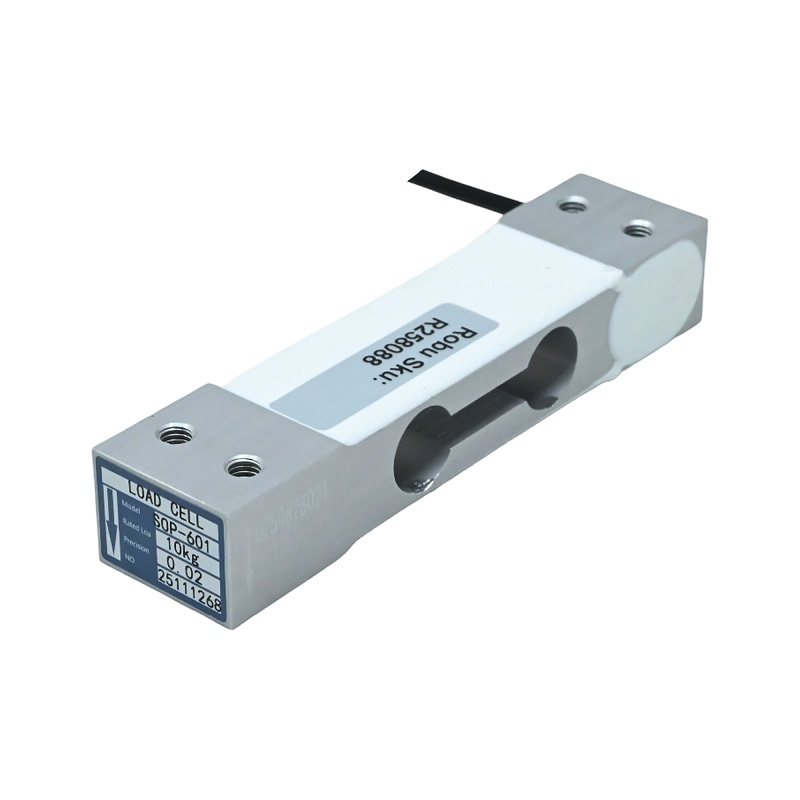

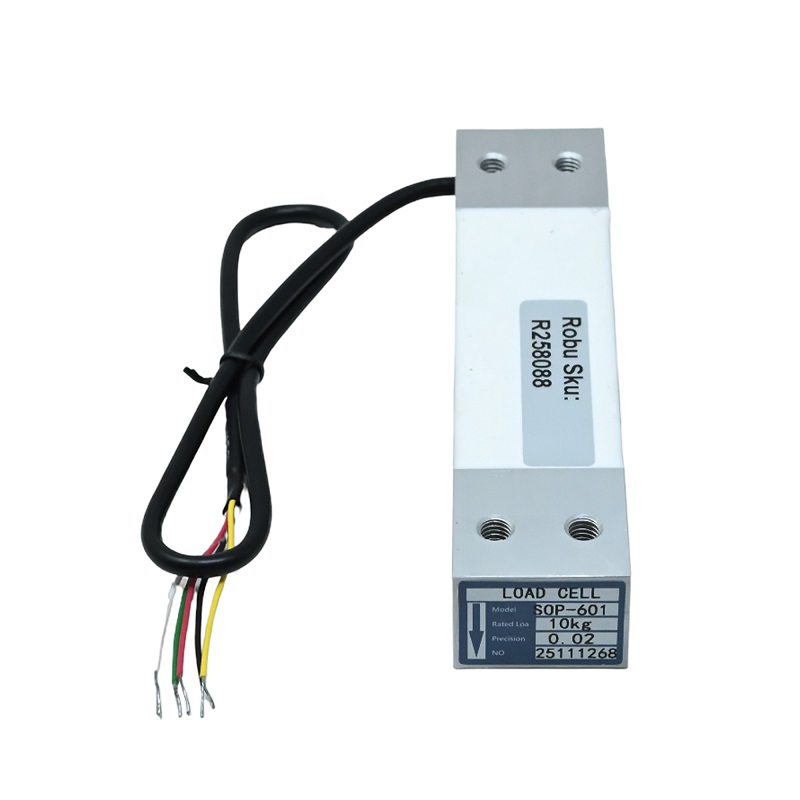

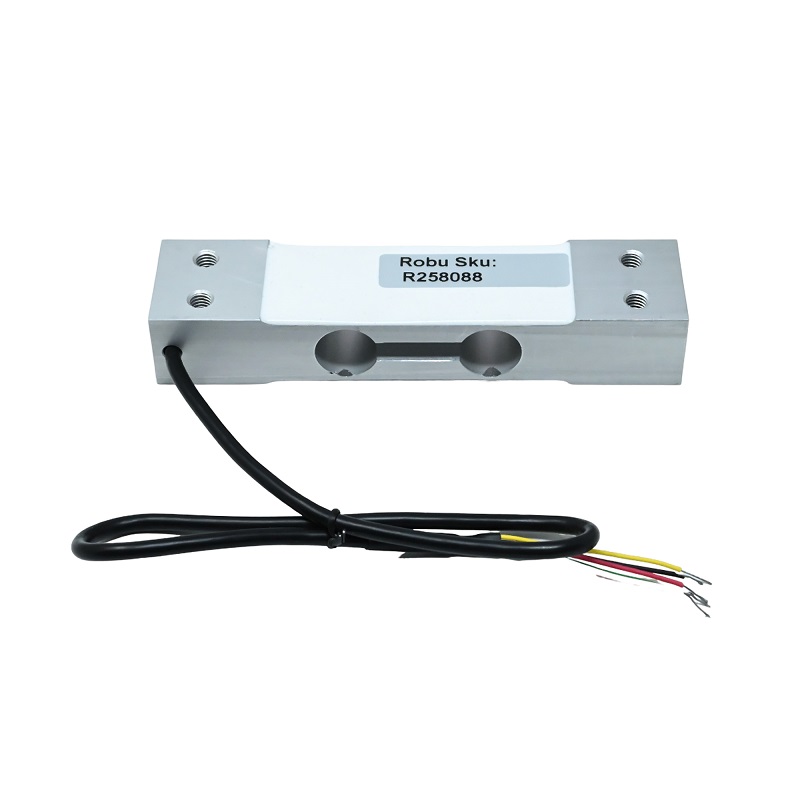

SOP SOP601-10kg Single Point Load Cell Sensor, 2.0mV/V, 0.02% Precision
The SOP SOP601-10kg Single Point Load Cell Sensor is a precision strain gauge transducer designed for accurate weight measurement in compact industrial and commercial systems. It features a 2.0mV/V output sensitivity and ±0.02% precision, making it compatible with standard instrumentation amplifiers and microcontrollers like Arduino and industrial PLCs for force and weight sensing applications.
Features
- 10kg capacity single-point load cell with ±0.02% precision.
- 2.0mV/V output sensitivity for high-resolution signal conditioning.
- Corrosion-resistant construction for reliable performance in harsh industrial environments.
- Compact 130mm x 22mm footprint for flexible mounting in space-constrained designs.
- Includes 2-meter cable for convenient integration into vending machines, platform scales, and process control systems.
Out of stock
The SOP SOP601 utilizes a high-precision strain gauge Wheatstone bridge configuration to convert applied force into a proportional millivolt-level electrical signal. Its single-point bending beam design is optimized for platform scales and applications where the load is applied to a central point, ensuring accurate and repeatable measurements.
Engineered for stability, the sensor features a robust, corrosion-resistant housing that protects the internal gauges from environmental factors, contributing to its low temperature drift specification. The 2.0mV/V sensitivity provides a strong signal for amplification, facilitating integration with data acquisition systems, industrial PLCs, and microcontroller-based projects requiring precise weight or force monitoring.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 13 × 2.2 cm |
