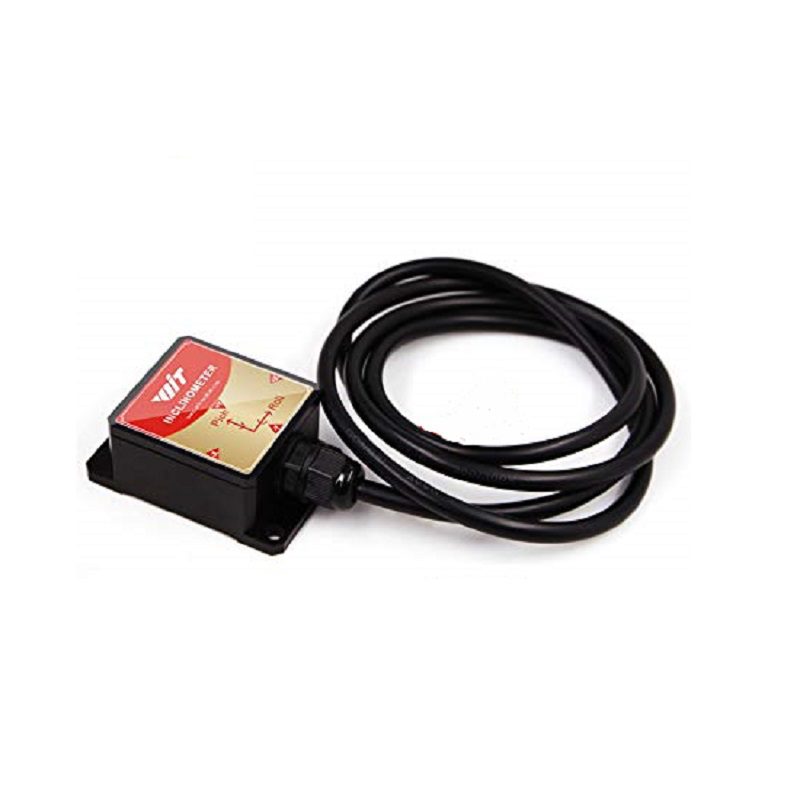

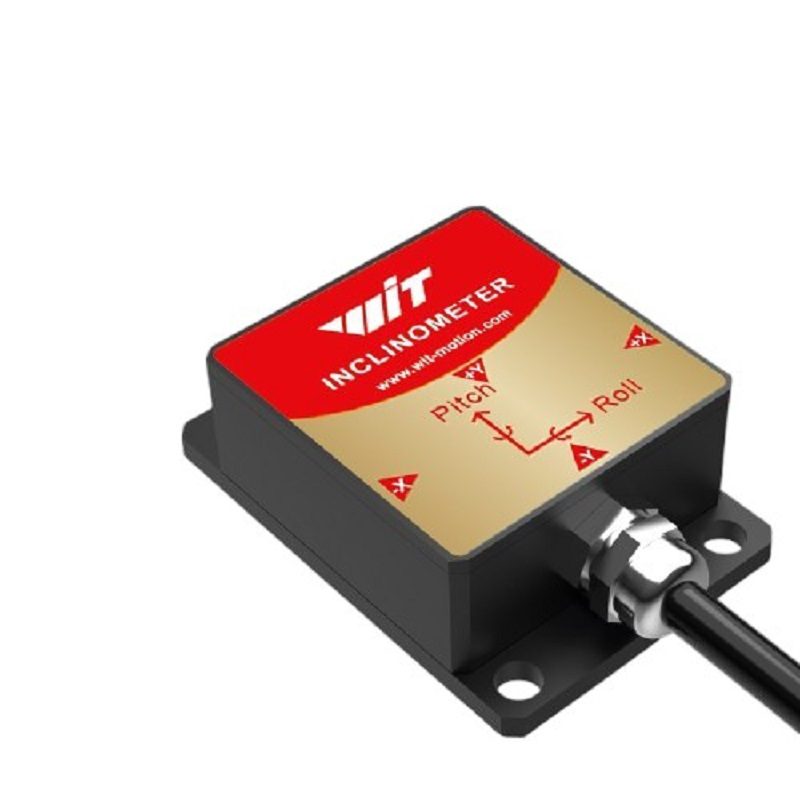

WTMotion HWT905-485 9DOF AHRS High-Precision Motion IMU Sensor - RS485, CAN, TTL, RS232, IP67 Aluminum Shell
The WTMotion HWT905-485 is a high-performance 9DOF AHRS (Attitude and Heading Reference System) IMU sensor integrating MEMS gyroscope, accelerometer, and magnetometer. It provides real-time, Kalman-filtered 3D orientation data via TTL, RS232, RS485, or CAN interfaces, making it compatible with industrial PLCs, robotics, and data acquisition systems.
Features
- High-Precision 9-Axis AHRS: Integrates 3-axis gyroscope, accelerometer, and magnetometer with Kalman filtering for 0.05° static accuracy.
- Robust Industrial Connectivity: Supports TTL, RS232, RS485, and CAN communication interfaces with configurable baud rates from 4800 to 230400 bps.
- Wide Operating Voltage: Accepts 5V to 36V DC input with built-in voltage regulation for flexible system integration.
- Harsh Environment Rated: Features an IP67-sealed aluminum housing with EMI resistance for stable operation in demanding conditions.
- Military-Grade Stability: Utilizes a high-performance magnetic chip with auto-recovery from interference, ensuring consistent performance across a wide temperature range.
Out of stock
The WTMotion HWT905-485 employs advanced MEMS sensor fusion and a proprietary Kalman filter algorithm to deliver high-dynamic, real-time compensated three-axis attitude angles (roll, pitch, yaw). Its design prioritizes signal integrity, offering excellent noise immunity and stable performance characterized by minimal hysteresis and consistent temperature characteristics.
Engineered for reliability, the sensor’s IP67 aluminum shell provides robust protection against dust, water ingress, and electromagnetic interference. The wide 5V to 36V input range, coupled with multiple industrial-standard communication protocols, makes it a versatile core component for precise motion tracking and control systems.
Additional Information
| Weight | 0.188 kg |
|---|---|
| Dimensions | 5.5 × 3.68 cm |
