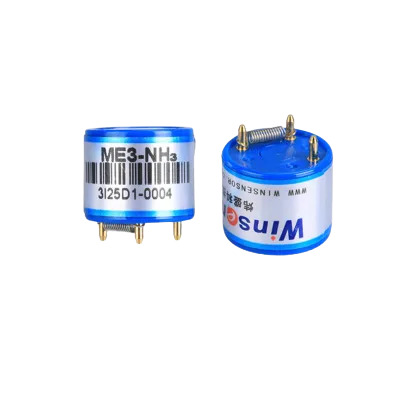

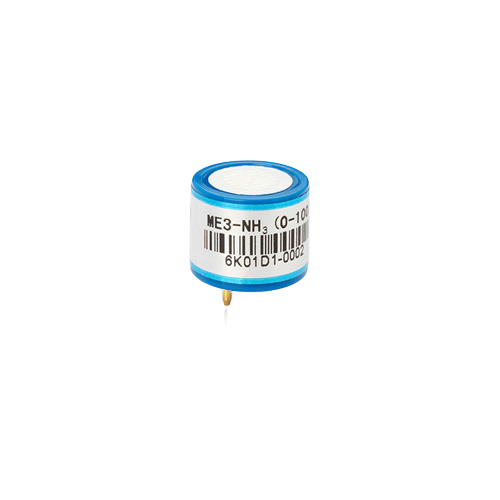

Winsen ME3-NH3 Electrochemical Ammonia Sensor - 0-50 ppm Range
The Winsen ME3-NH3 is an electrochemical ammonia (NH3) gas sensor module designed for industrial and environmental monitoring systems. It provides a linear current output proportional to gas concentration from 0 to 50 ppm, featuring low power consumption and stable performance for integration with data loggers, PLCs, and air quality control units.
Features
- Electrochemical sensing principle for precise NH3 detection from 0 to 50 ppm
- High sensitivity of (0.10 ± 0.05) µA/ppm with a resolution of 0.5 ppm
- Fast response time (T90) of ≤90 seconds and excellent long-term stability
- Low power consumption and wide linear output range for easy signal conditioning
- Robust construction suitable for industrial and environmental protection applications
Out of stock
The ME3-NH3 sensor operates on a proven electrochemical principle. Target gas molecules diffuse into the sensor’s electrolytic cell and undergo an oxidation reaction at the working electrode. The resulting current is directly proportional to the gas concentration, following Faraday’s law, enabling accurate ppm-level measurement.
Engineered for reliability, the sensor features a 10Ω load resistance and maintains output linearity across its specified range. It is designed to operate within standard atmospheric pressures (90-110 kPa) and offers good anti-interference capability against common cross-sensitive gases, ensuring dependable performance in mixed-gas environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 4 × 3 cm |
