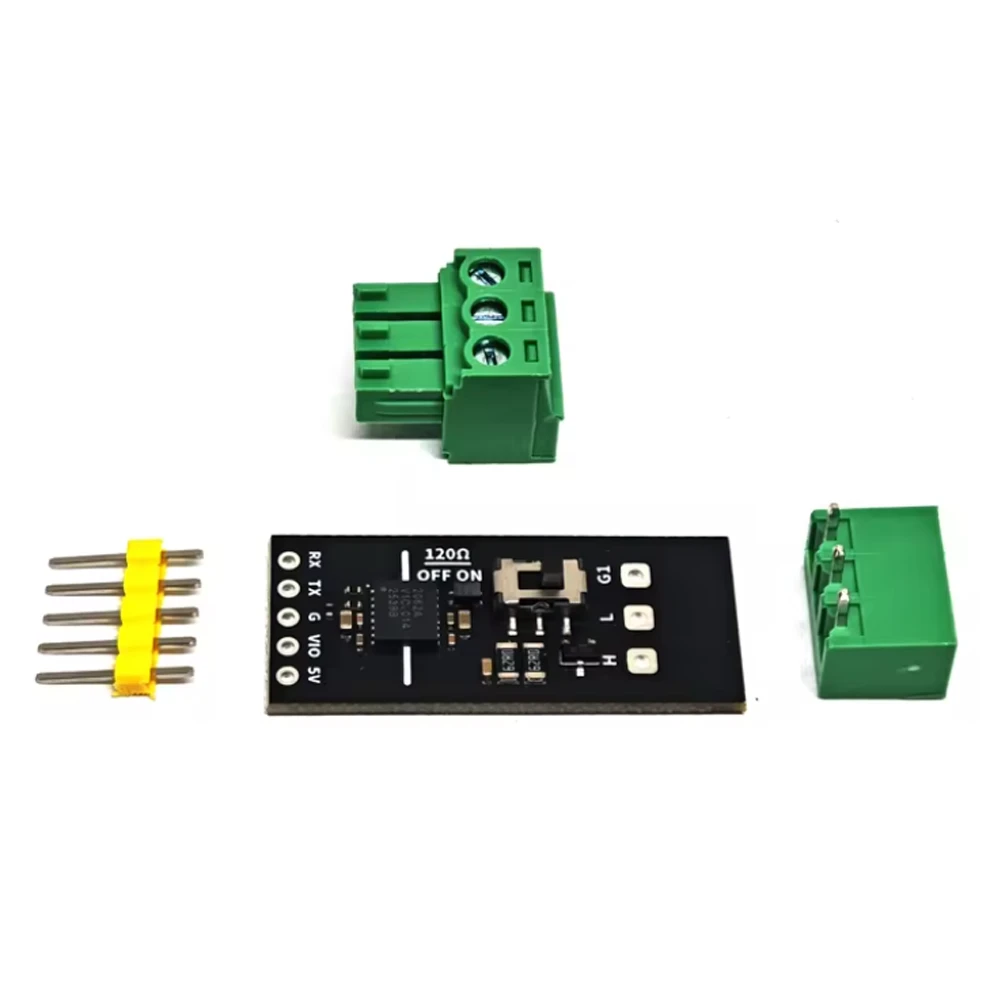

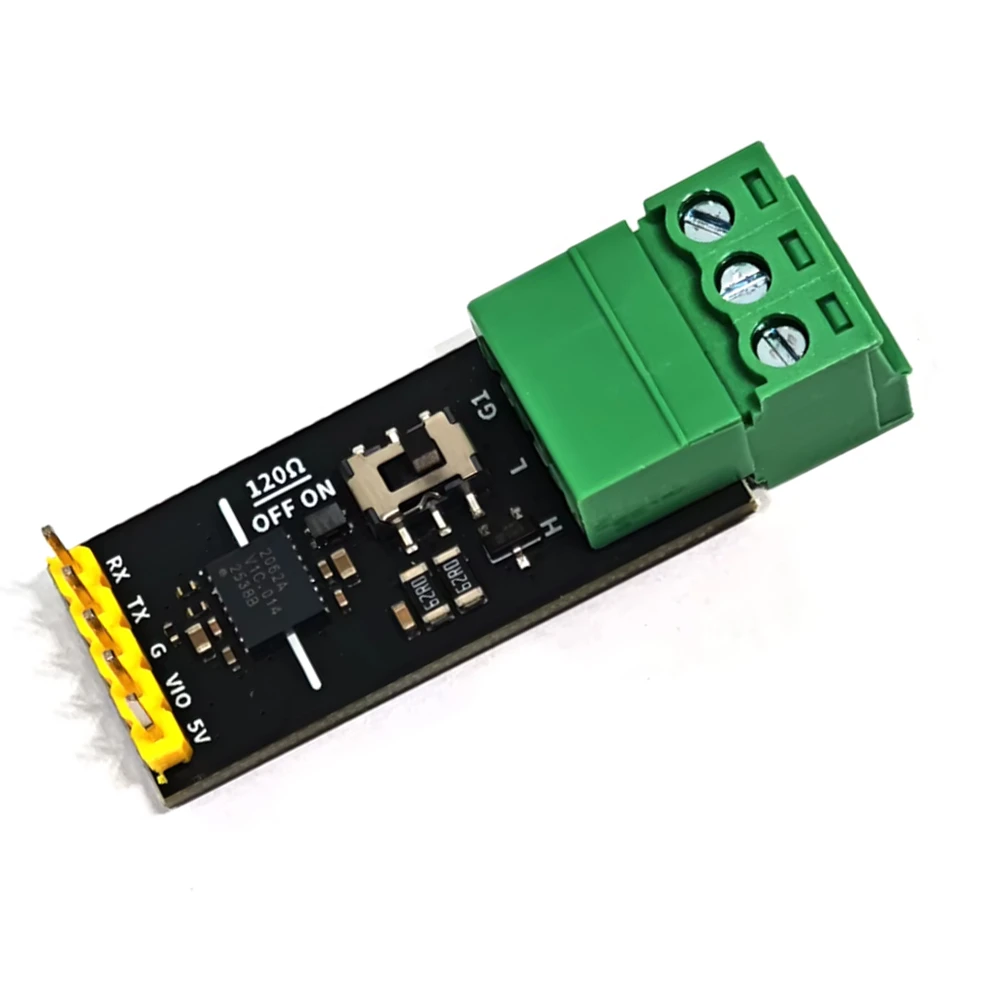

WeAct Studio ISOCANFD Module V1 CA-IS2062A 5Mbps CAN FD Transceiver
The WeAct Studio ISOCANFD Module V1 is a galvanically isolated CAN FD transceiver board based on the CA-IS2062A chipset, supporting data rates up to 5Mbps for robust communication in noisy industrial and automotive environments. It features a wide 2.5V to 5.5V I/O voltage range for seamless integration with MCUs like STM32, ESP32, and Arduino platforms.
Features
- High-speed CAN FD transceiver supports communication up to 5Mbps for fast, reliable data exchange in demanding networks.
- Integrated 2.5kV galvanic isolation protects sensitive microcontroller logic from high-voltage transients and ground loop noise.
- Flexible 2.5V to 5.5V I/O voltage compatibility ensures easy interfacing with 3.3V and 5V microcontroller families.

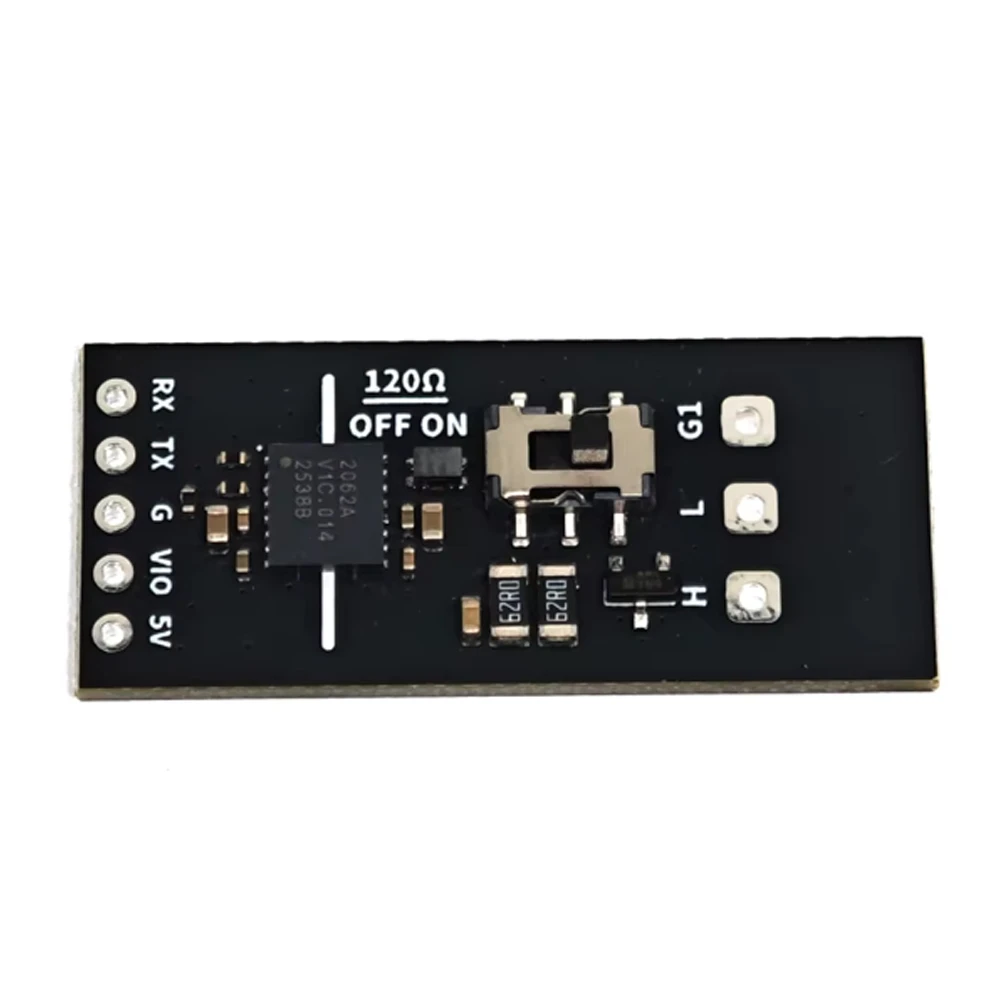

- Onboard 120Ω termination resistor with a switch enables quick network configuration without external components.
- Compact, breadboard-friendly form factor simplifies prototyping and integration into embedded control systems.
Out of stock
The WeAct Studio ISOCANFD Module V1 implements a complete, isolated CAN FD physical layer using the CA-IS2062A transceiver IC. This module provides robust differential bus communication with enhanced electromagnetic compatibility (EMC) performance, making it suitable for electrically harsh environments common in automotive diagnostics, industrial machinery, and building automation. The 2.5kV isolation barrier ensures signal integrity and protects the host microcontroller from voltage spikes and ground potential differences on the CAN bus.
Designed for developer convenience, the board includes a switchable 120Ω termination resistor, eliminating the need for external SMD components when configuring network endpoints. Its wide logic-level voltage range allows direct connection to 3.3V ARM Cortex-M, ESP32, or 5V Arduino boards without level shifters. The module operates from a standard 5V supply, drawing minimal quiescent current, and is ideal for implementing reliable, high-speed control and sensor networks in IoT edge systems.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 5 × 6 × 2 cm |
