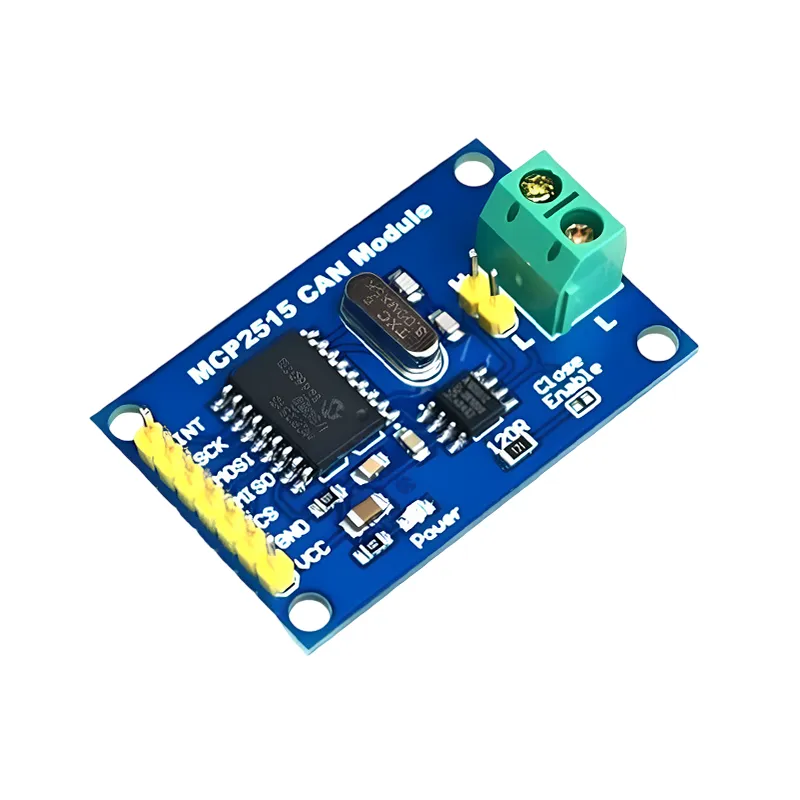

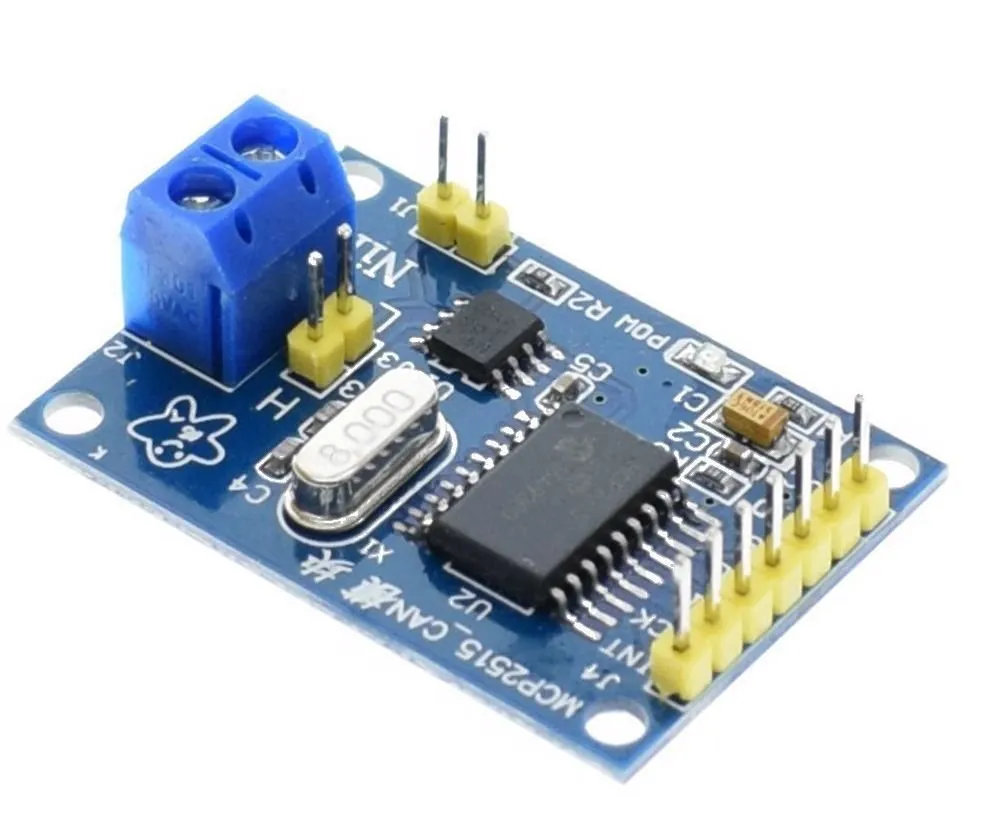

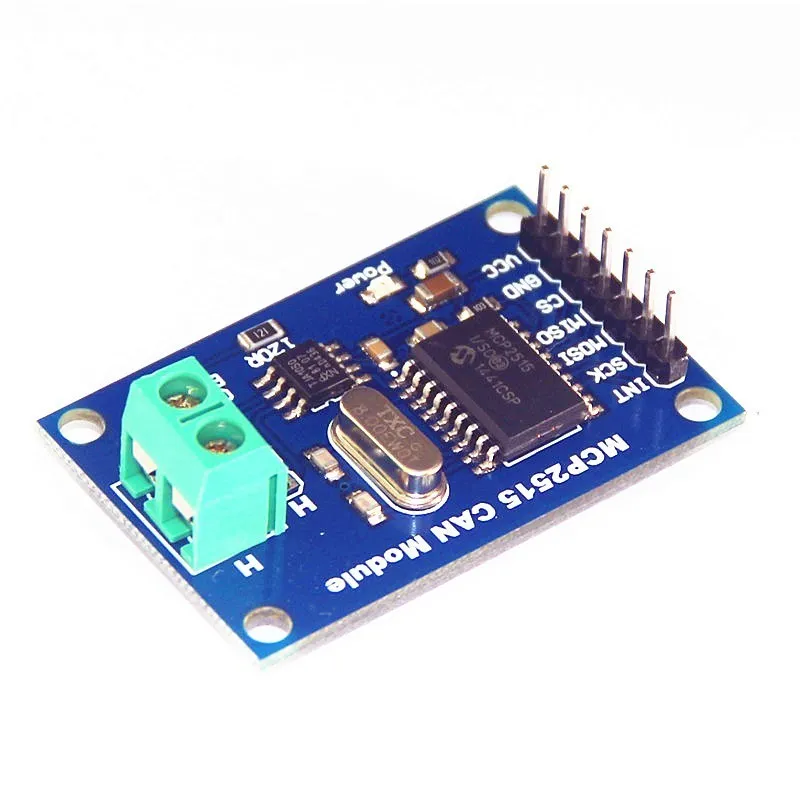

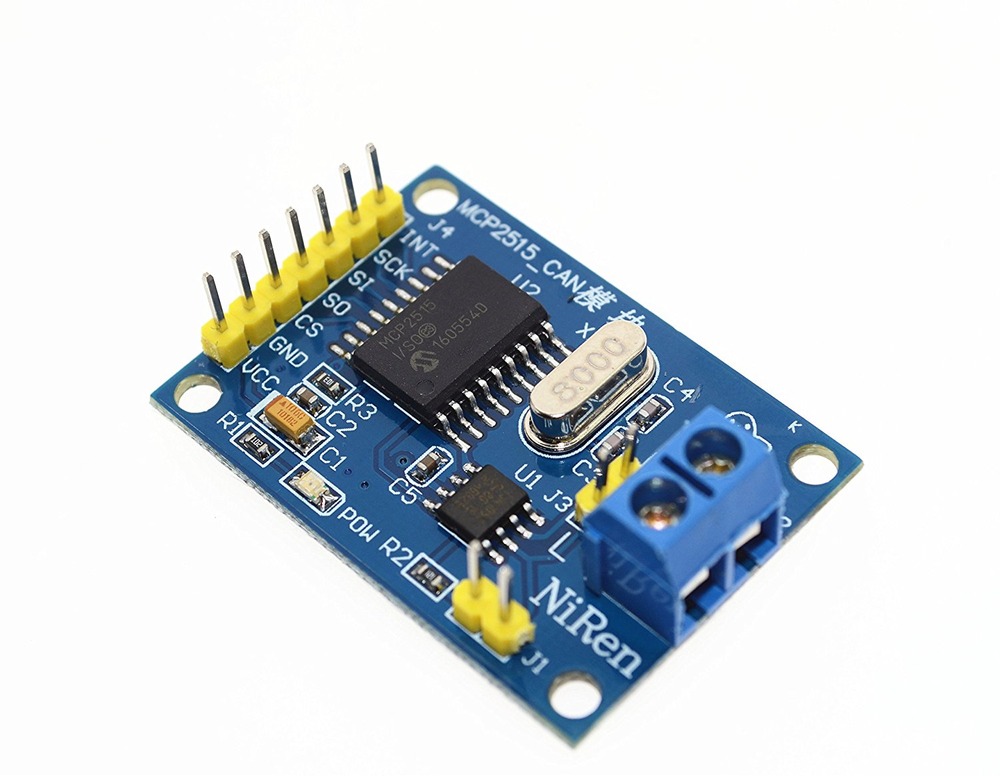

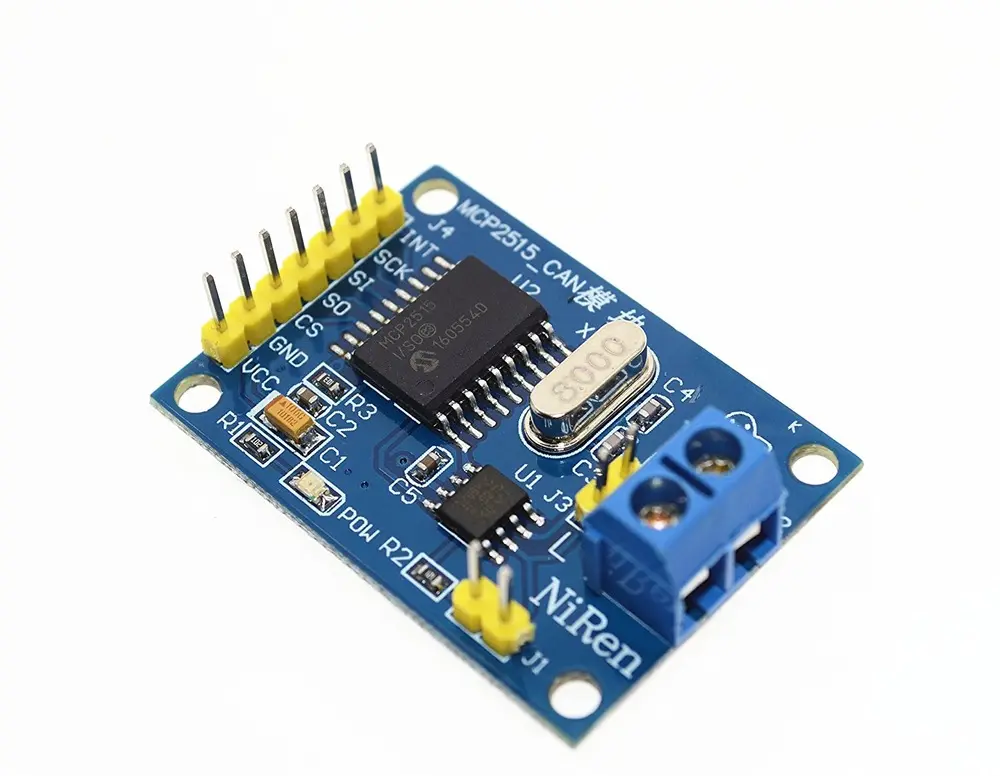

MCP2515 CAN Bus Module TJA1050 Transceiver SPI Arduino
The MCP2515 CAN Bus Module with TJA1050 transceiver provides robust Control Area Network communication for your microcontroller projects. Featuring an SPI interface, it supports the CAN V2.0B standard with communication rates up to 1Mb/s, making it ideal for Arduino and other MCU systems.
Features
- Integrates MCP2515 CAN controller and TJA1050 high-speed transceiver.
- Supports CAN V2.0B technical standard with up to 1Mb/s communication rate.
- SPI interface for easy integration with Arduino, ESP32, STM32, and other microcontrollers.
- Configurable 120Ω terminal resistance for impedance matching and signal integrity.
- Compact 5V module, perfect for embedded automotive and industrial applications.
Out of stock
This MCP2515 CAN bus module offers a reliable and efficient solution for enabling CAN communication in your embedded systems. At its core, it features the Microchip Technology MCP2515 standalone CAN controller, which handles all CAN protocol layers, offloading the host microcontroller. Paired with the NXP Semiconductors TJA1050 high-speed CAN transceiver, the module ensures robust physical layer communication, capable of driving long-distance data transmissions and preventing signal radiation.
The module communicates with your host microcontroller via a standard SPI interface, requiring minimal I/O pins for operation. Key pin definitions include VCC (5V power), GND, CS (SPI Slave Select), SO (SPI Master Output), SCLK (SPI Clock), and INT (MCP2515 Interrupt). For flexible connectivity, it provides both KF301-2P block and pin header outputs for CANH/CANL. A selectable 120Ω terminal resistance aids in proper bus termination, crucial for stable CAN network performance.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 4.1 × 2.8 cm |
