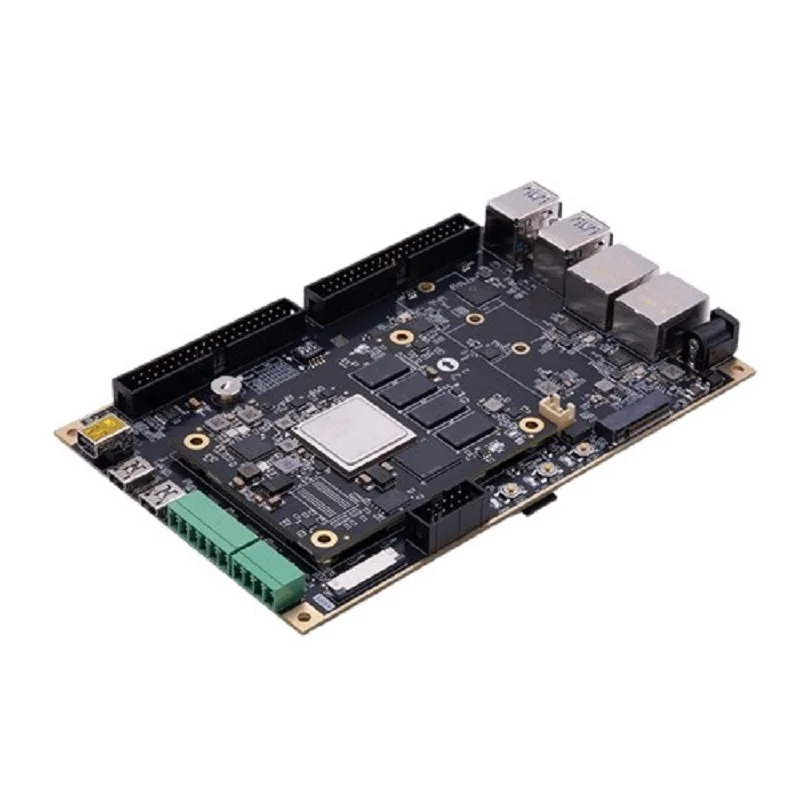

Alinx AXU2CGB-E Dev Board Kit with AMD Zynq US+ ZU2CG MPSoC

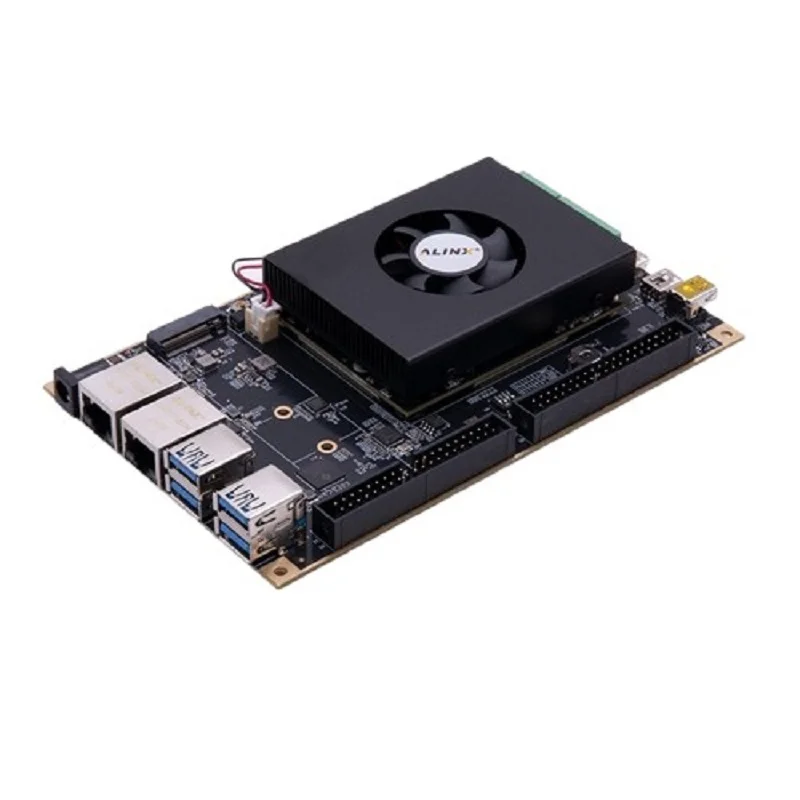

Alinx AXU2CGB-E Dev Board Kit with AMD Zynq US+ ZU2CG MPSoC - Image 2

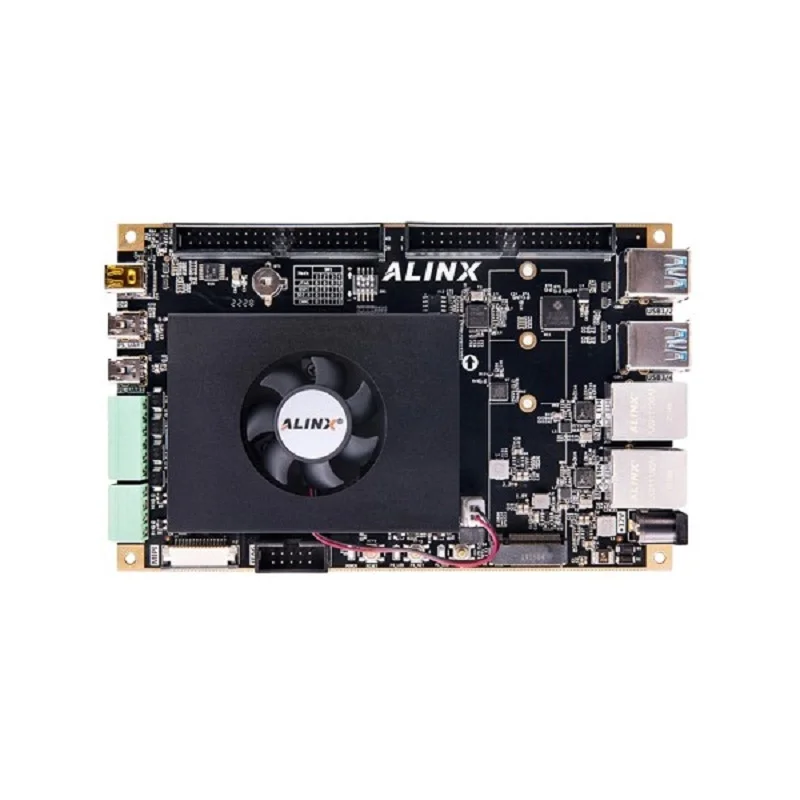

Alinx AXU2CGB-E Dev Board Kit with AMD Zynq US+ ZU2CG MPSoC - Image 3
SKU: IOWC-1120
📋 GST Invoice Available

Alinx AXU2CGB-E Dev Board Kit with AMD Zynq US+ ZU2CG MPSoC

₹79,669.00 (Inclusive of all taxes)
Out of Stock

The Alinx AXU2CGB-E is a comprehensive development kit built around the AMD/Xilinx Zynq UltraScale+ ZU2CG MPSoC, integrating a quad-core ARM Cortex-A53 CPU, dual-core Cortex-R5, and 16nm FPGA fabric for high-performance embedded computing, vision processing, and industrial IoT gateway applications.

Features

  • Features the AMD/Xilinx Zynq UltraScale+ MPSoC (XCZU2CG) with quad-core Cortex-A53 (1.3 GHz), dual-core Cortex-R5 (533 MHz), and 16nm FinFET+ programmable logic.
  • Equipped with 4 GB DDR4 memory (PS), 1 GB DDR4 (PL), 8 GB eMMC, and 32 MB QSPI Flash for robust storage and high-speed data processing.
  • Rich I/O includes DisplayPort, dual-lane MIPI, dual USB 3.0, dual Gigabit Ethernet (PS & PL), dual CAN, dual RS485, and dual UART interfaces.
  • Includes M.2 slot for NVMe storage expansion and supports H.264/H.265 video codec for advanced multimedia and computer vision applications.
  • Powered by a single 12V supply and comes as a complete kit with base board, heatsink, USB downloader, power adapter, and acrylic carrier.

Out of stock

Description

The Alinx AXU2CGB-E Development Board Kit provides a full-featured platform for prototyping and deploying systems based on the AMD/Xilinx Zynq UltraScale+ MPSoC architecture. Its heterogeneous processing combines application-class ARM cores with real-time controllers and a substantial FPGA fabric, enabling hardware-accelerated algorithms, signal processing, and custom peripheral interfacing.

Designed for industrial-grade applications, the board offers extensive connectivity through dual Gigabit Ethernet ports (separated between Processing System and Programmable Logic), high-speed USB 3.0, CAN, RS485 serial buses, and video interfaces like DisplayPort and MIPI. The pluggable System-on-Module (SoM) design with board-to-board connectors ensures mechanical robustness and simplifies integration into final products, significantly reducing time-to-market for complex embedded projects.

Key Features

  • Heterogeneous MPSoC with ARM Cortex-A53 (quad-core), Cortex-R5 (dual-core), and 16nm FPGA logic for flexible compute partitioning.
  • High-bandwidth memory subsystem with 4 GB DDR4 on PS and 1 GB DDR4 on PL for demanding data pipelines.
  • Comprehensive industrial I/O suite including dual CAN 2.0B, dual RS485, and dual Gigabit Ethernet for factory automation and telemetry.
  • Advanced multimedia support via DisplayPort output, dual-lane MIPI CSI/DSI, and integrated H.264/H.265 video codec hardware.
  • Expandable high-speed storage through M.2 (PCIe) slot and onboard 8 GB eMMC flash with 32 MB QSPI boot memory.
  • Modular design using a pluggable SoM with four Panasonic board-to-board connectors for reliable system integration.
  • Complete development kit includes base board, preinstalled heatsink, USB download cable, 12V power adapter, and acrylic mounting board.

Applications

  • Industrial IoT Gateways & Edge Controllers for data aggregation and protocol conversion (Modbus, CAN, Ethernet).
  • Advanced Driver-Assistance Systems (ADAS) and Automotive Sensor Fusion platforms.
  • High-performance Embedded Vision Systems for machine inspection, broadcasting, and surveillance.
  • 5G Infrastructure and Wireless Communication baseband processing units.
  • Data Center Accelerator Cards and Network Appliance prototyping.
  • Deep Learning Inference and AI at the Edge for pattern recognition and predictive analytics.
  • Real-time Signal Processing and Software-Defined Radio (SDR) applications.

Technical Specifications

Processor / SoCAMD/Xilinx Zynq UltraScale+ MPSoC XCZU2CG-1SFVC784E (Quad-core ARM Cortex-A53 up to 1.3 GHz, Dual-core Cortex-R5 up to 533 MHz, 16nm FPGA)
Memory4 GB DDR4 SDRAM (PS), 1 GB DDR4 SDRAM (PL)
Storage32 MB QSPI Flash, 8 GB eMMC Flash, Micro SD slot, M.2 PCIe slot
Video InterfacesDisplayPort, 2-lane MIPI CSI/DSI
USB Ports2 x USB 3.0, 2 x USB 2.0
Network Interfaces2 x Gigabit Ethernet (1 PS, 1 PL)
Industrial Serial2 x CAN, 2 x RS485, 2 x UART
Expansion40-pin headers, I2C EEPROM (4 Kbit)
Power Supply12V DC Input
Form Factor / Dimensions160 x 100 mm (Board), Module with 4 board-to-board connectors
Additional FeaturesLM75 temperature sensor, RTC, LED indicators, power/reset keys

Frequently Asked Questions

What software tools and development environments are supported for the AXU2CGB-E board?

Development is primarily done using the AMD/Xilinx Vitis Unified Software Platform and Vivado Design Suite for hardware logic creation and SDK integration. You can also use PetaLinux for building custom Linux distributions. The board supports booting from QSPI Flash, eMMC, or SD card, with programming typically done via the included USB download cable and JTAG interface for initial FPGA bitstream and application deployment.

How are the dual Gigabit Ethernet ports configured and differentiated on this board?

One Gigabit Ethernet port is connected directly to the Processing System (PS) of the Zynq MPSoC via its internal GEM controller, ideal for running Linux network stacks. The second port is routed through the Programmable Logic (PL), allowing for custom MAC/IP cores, hardware-accelerated packet processing, or real-time industrial protocol handling. This separation provides flexibility for implementing software-defined networking or deterministic communication channels.

What is the purpose of the pluggable System-on-Module (SoM) design?

The SoM design consolidates the core MPSoC, DDR4 memory, eMMC, and QSPI flash onto a single module connected via four high-density Panasonic board-to-board connectors. This decouples complex high-speed circuit design from the carrier board, allowing you to develop custom baseboards for specific I/O or form factors while maintaining reliable signal integrity and simplifying certification by reusing a pre-validated core compute module across multiple product variants.

Package Includes

  • 1 x AXU2CGB-E System-on-Module (SoM)
  • 1 x Base Board (Carrier)
  • 1 x Heatsink Kit (preinstalled)
  • 1 x USB Downloader Cable
  • 1 x 12V Power Adapter
  • 1 x Acrylic Mounting Board
  • 1 x Mini USB Cable
  • 1 x Card Reader
  • 1 x TF Card

Additional Information

Weight 0.6 kg
Dimensions 6 × 10 × 3 cm

Related Products

Out of Stock

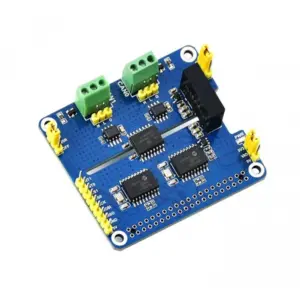

Waveshare 2-Ch Isolated CAN HAT for Raspberry Pi

1,939.00
Learn More
Out of Stock

Arduino Portenta Mid Carrier Board - IoT Expansion ASX00055

6,809.00
Learn More
Out of Stock

Holybro H-RTK ZED-F9P Rover - CAN Protocol RTK GNSS Module

51,959.00
Learn More
Out of Stock

SparkFun AST-CAN485 Dev Board

3,779.00
Learn More
Out of Stock

BIGTREETECH EBB36 CAN V1.2 Extruder Toolhead Board

2,199.00
Learn More
Out of Stock

Arduino Nano R4 ABX00142 w/ Headers

1,229.00
Learn More
Out of Stock

TJA1050 CAN Bus Transceiver Module

128.00
Learn More
Out of Stock

Arduino UNO R4 Minima Development Board

899.00
Learn More
Out of Stock

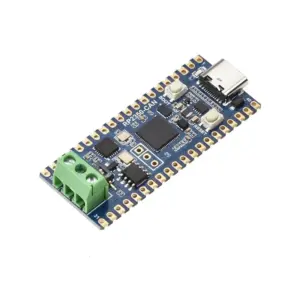

Waveshare RP2350 CAN Development Board w/ XL2515 CAN Controller
