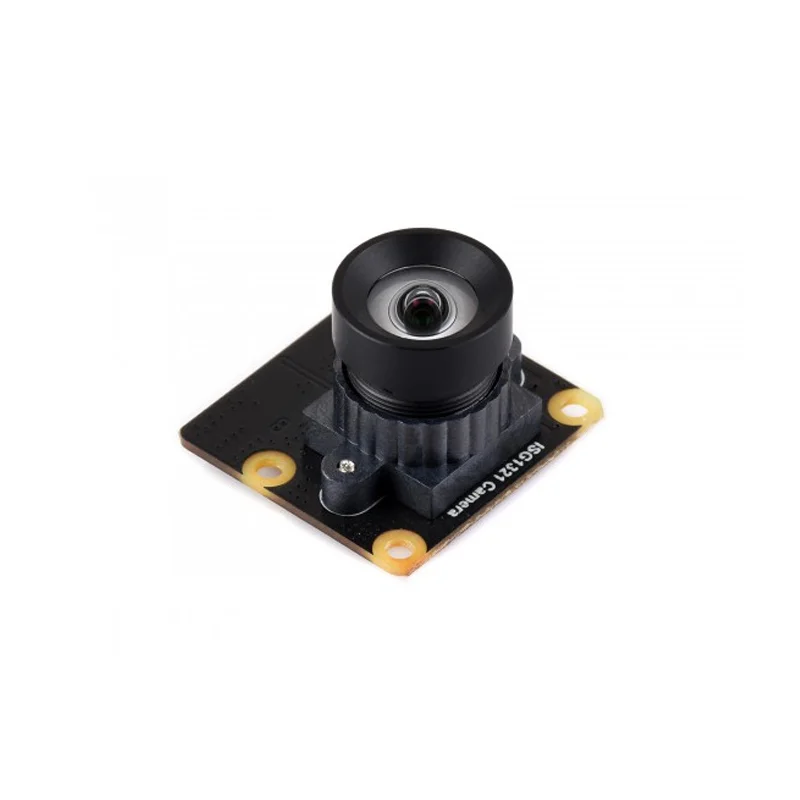

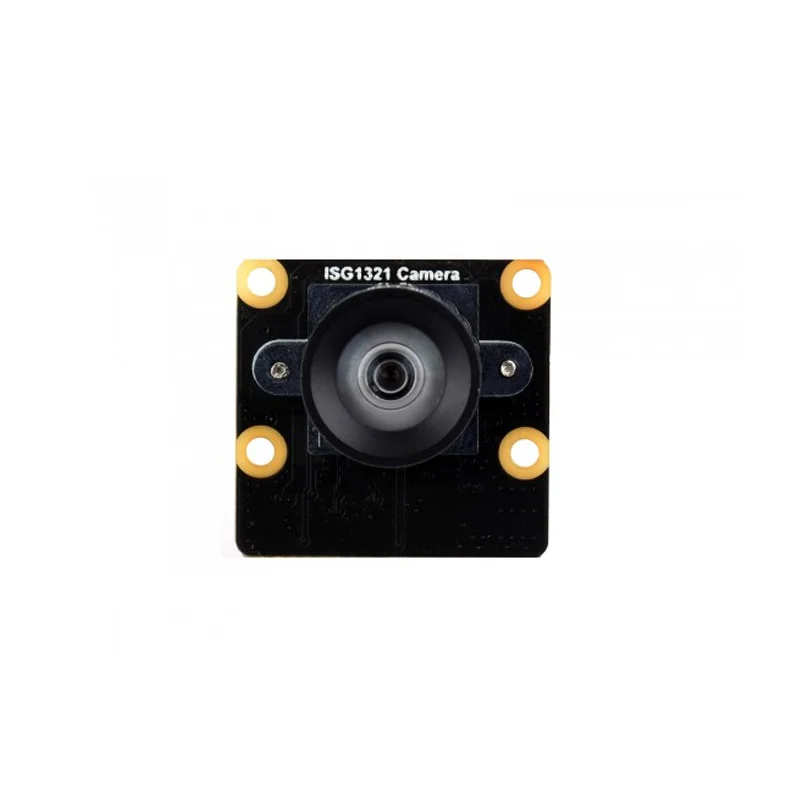

Waveshare ISG1321 1.38MP Mono Camera Module w/ Global Shutter
The Waveshare ISG1321 is a 1.38MP monochrome global shutter camera module designed for high-speed machine vision and industrial inspection. It connects via a 2-lane MIPI-CSI interface and delivers 1280×1080 resolution at up to 120fps through a wide-angle F2.4 lens.
Features
- Global Shutter Sensor: Captures fast-moving objects without motion blur or rolling shutter distortion, essential for precise machine vision.
- High-Speed 120fps Output: Delivers 1280×1080 monochrome video at up to 120 frames per second for real-time high-speed imaging.
- Wide 95.5° FOV Lens: Features a 2.88mm focal length F2.4 aperture lens with minimal distortion for expansive scene coverage.
- Compact MIPI-CSI Interface: Integrates easily with single-board computers and embedded systems via a standard 2-lane MIPI-CSI interface.
Out of stock
The Waveshare ISG1321 camera module is engineered for industrial-grade computer vision applications requiring high temporal resolution and geometric accuracy. Its 1/4-inch CMOS global shutter sensor ensures every pixel is exposed simultaneously, eliminating the skew and blur associated with rolling shutters when imaging rapid motion or vibrating machinery.
Paired with a fixed-focus, wide-angle lens offering a 95.5-degree field of view and less than 1% distortion, the module provides a consistent and broad imaging plane ideal for barcode reading, robotic guidance, and automated optical inspection (AOI). The 2-lane MIPI-CSI interface offers a high-bandwidth, low-pin-count connection compatible with popular embedded platforms, supporting seamless integration into vision systems.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2.6 × 2.4 cm |
