Waveshare IMX415 8MP AF MIPI Camera for Raspberry Pi 5/4/3/Zero

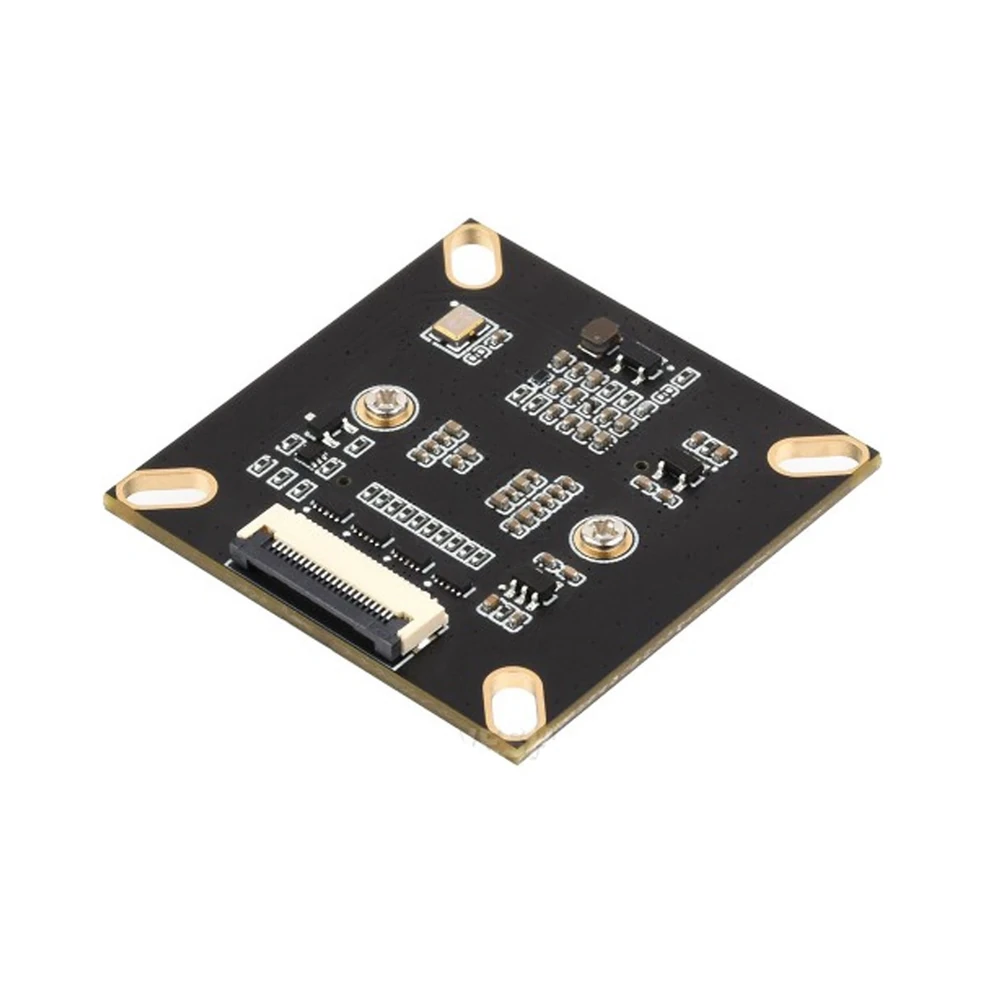

The Waveshare IMX415 camera is designed for broad compatibility, supporting Raspberry Pi 5, Raspberry Pi 4B, Raspberry Pi 3 series, and Raspberry Pi Zero series boards. It connects via the standard MIPI CSI-2 camera interface found on these models, ensuring seamless integration and performance across various generations of Raspberry Pi hardware.

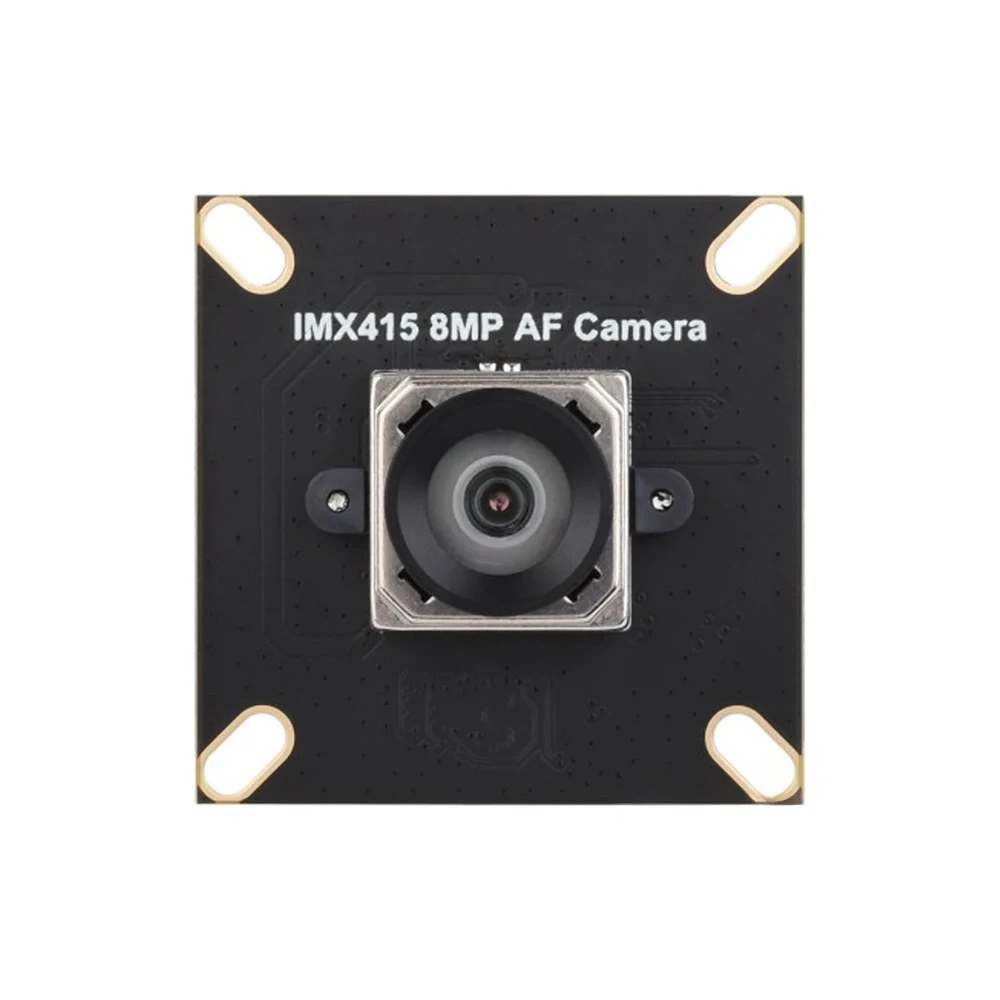

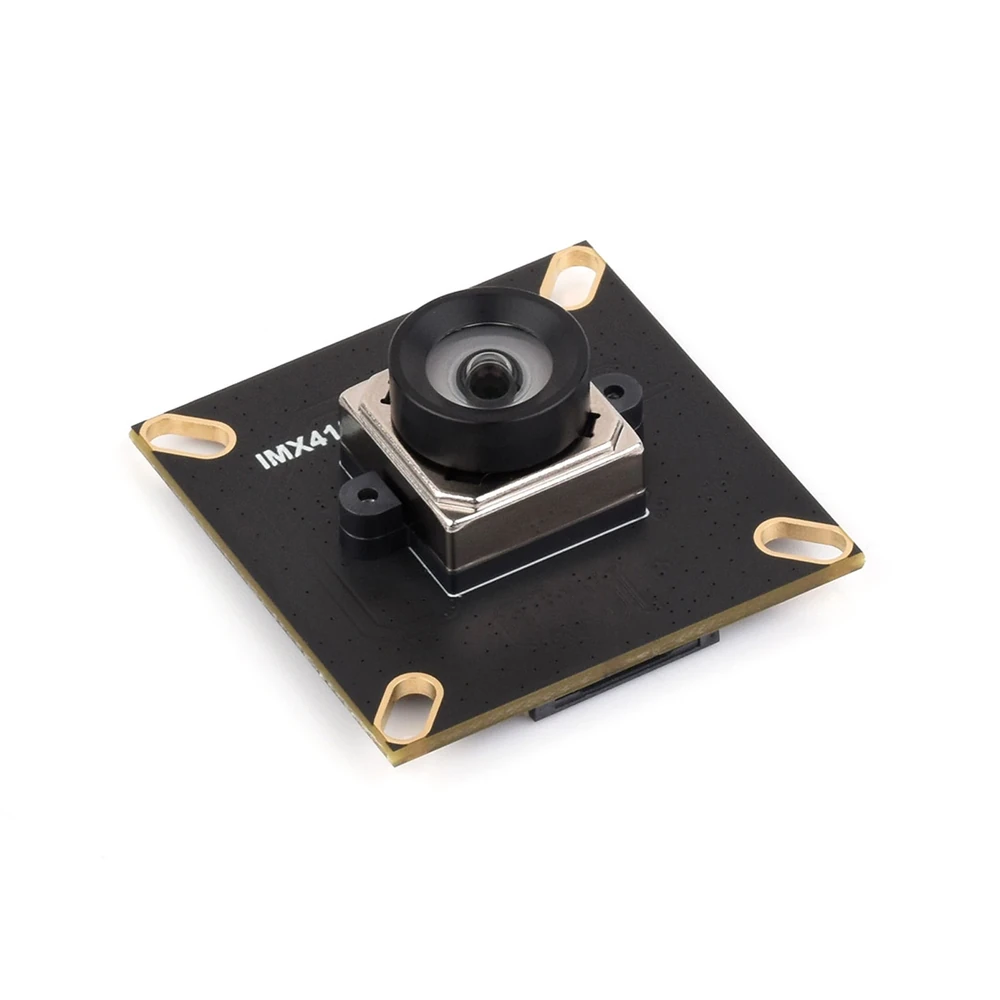

This camera features an 8MP Sony IMX415 sensor, offering a resolution of 3840 × 2160 pixels. It includes an autofocus lens with an F2.4 aperture and 2.88mm focal length. The module provides a 95.5° diagonal field of view and boasts less than 1% distortion, ensuring clear and accurate image capture.

The autofocus mechanism dynamically adjusts the lens focus to maintain sharp imagery at varying distances from the subject. This is particularly beneficial in applications where subjects are not at a fixed focal plane, such as robotics, surveillance, or any system requiring continuous clear focus without manual intervention, enhancing versatility.

Integration typically involves using Raspberry Pi OS with its native camera stack, leveraging `libcamera` for optimal performance. Developers can utilize Python libraries (e.g., `picamera2`) or C/C++ applications to access the camera stream, control parameters, and perform image processing tasks, enabling diverse custom vision solutions efficiently.
