Waveshare 2.8inch Touch LCD Shield

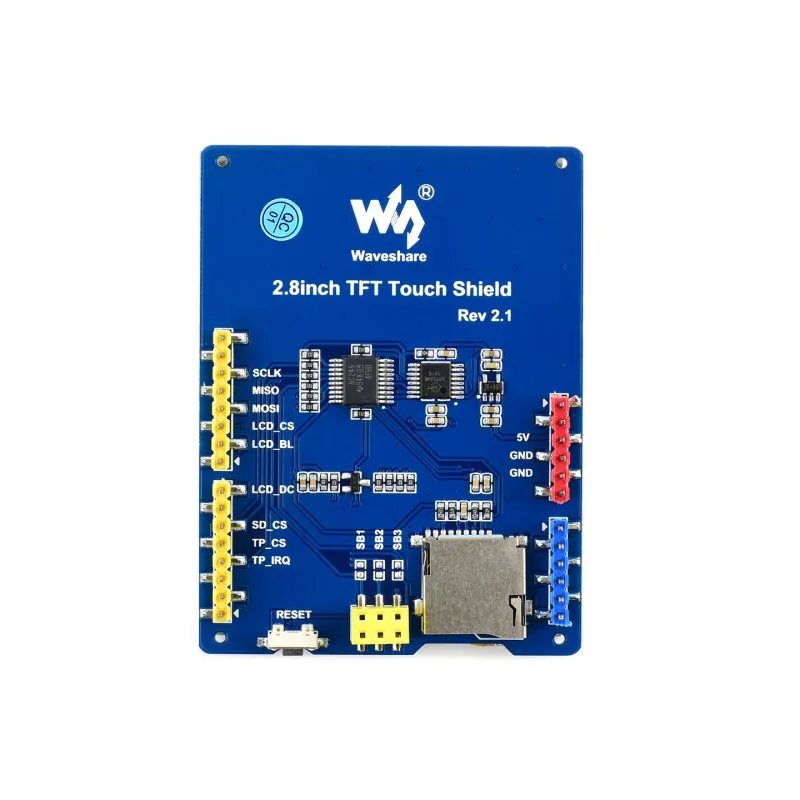

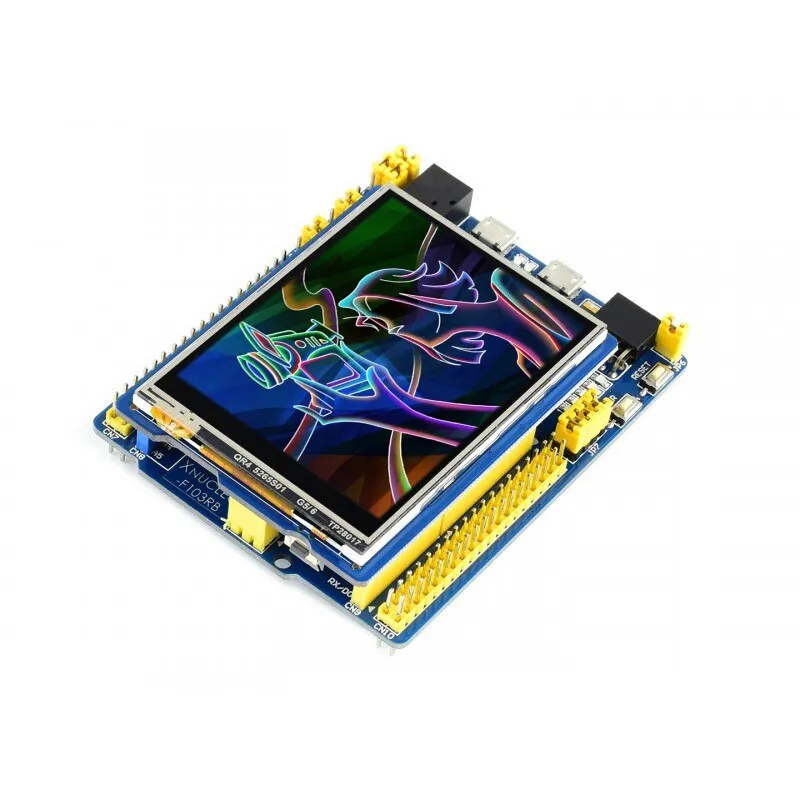

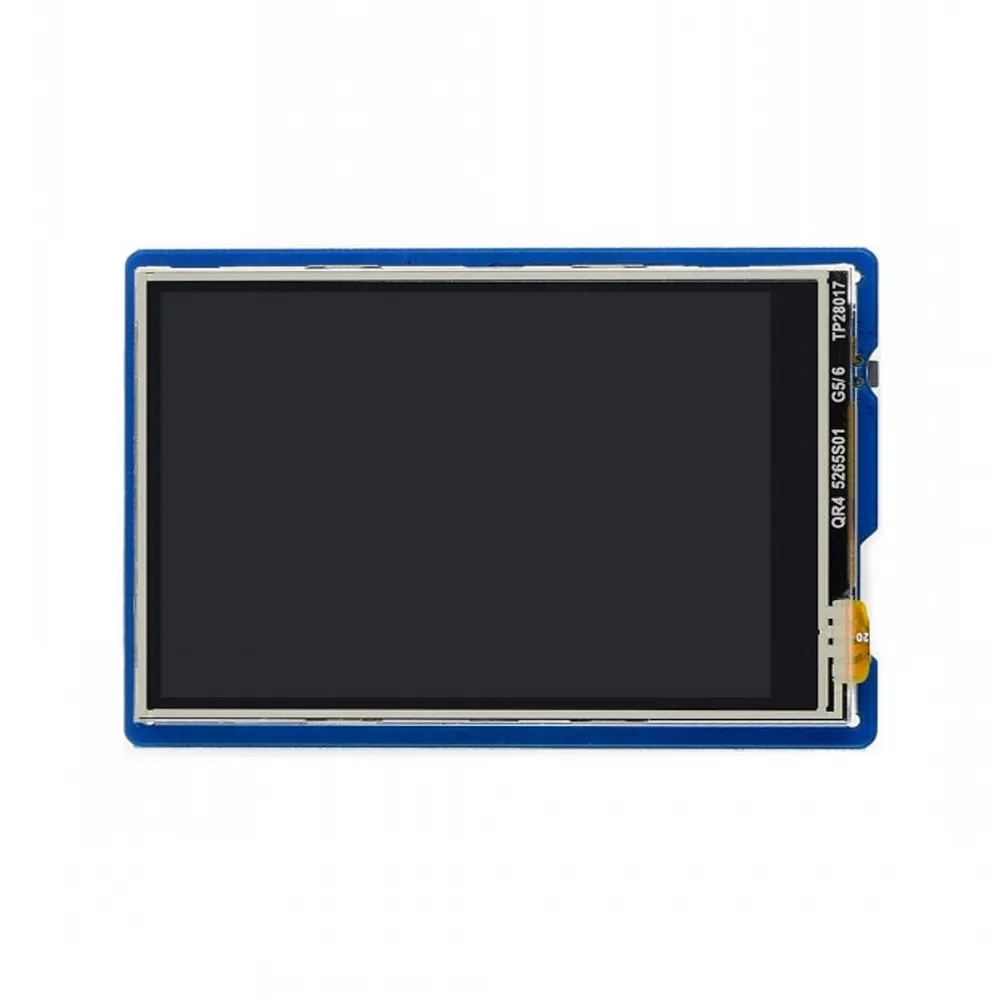

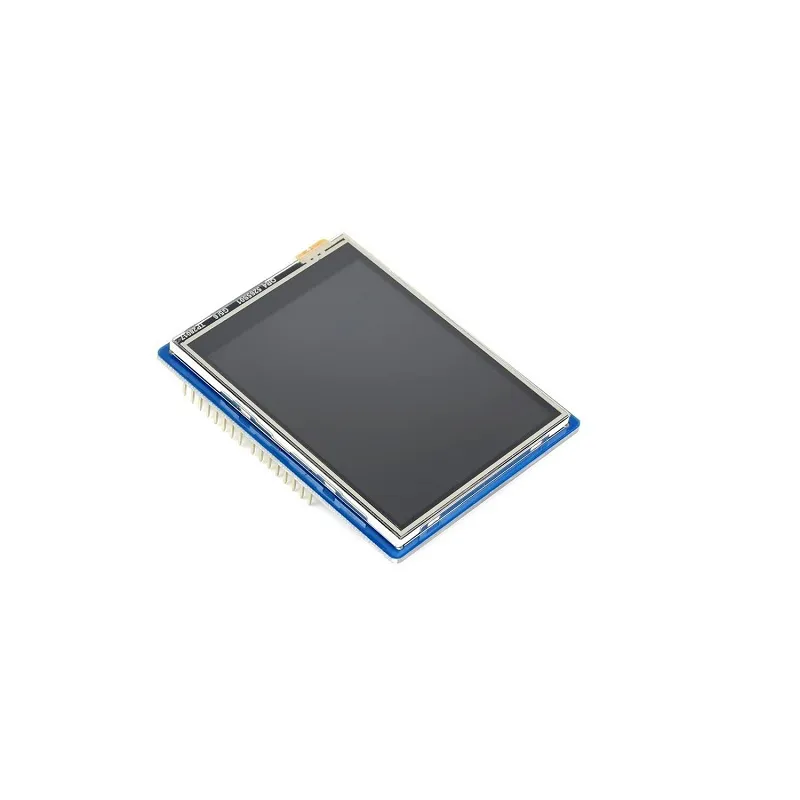

The Waveshare 2.8-inch Touch LCD Shield offers a vibrant 320×240 resistive touchscreen display, designed for seamless integration with Arduino UNO and similar ATMEGA328-based boards. This shield provides an easy plug-and-play solution for adding a graphical user interface and local storage capabilities to your Arduino projects.
Features
- 2.8-inch TFT LCD with 320×240 resolution and 65K colors for clear visuals.
- Resistive touchscreen for interactive user input without external wiring.
- Standard Arduino interface ensures broad compatibility with UNO, Leonardo, and NUCLEO boards.
- Integrated Micro SD slot for convenient storage of images and data.
- Utilizes SPI communication, minimizing pin usage on your Arduino board.
Out of stock
Enhance your Arduino UNO projects with the Waveshare 2.8-inch Touch LCD Shield, a fully assembled and tested solution that adds significant display and interaction capabilities. This shield integrates a bright 2.8-inch TFT display, offering 320×240 pixel resolution and 18-bit color depth (262,000 shades), making it ideal for creating intuitive graphical user interfaces and data visualizations.
Beyond its vibrant visuals, the shield incorporates a responsive resistive touchscreen, allowing for direct user interaction and menu navigation. An onboard stand-alone touch controller ensures accurate and reliable touch detection, surpassing basic AD pin-based solutions. Furthermore, a built-in Micro SD slot provides ample storage for bitmap images, data logging, or configuration files, while SPI control minimizes the number of Arduino pins required. The backlight is programmatically adjustable, enabling power optimization for various applications.
Additional Information
| Weight | 0.038 kg |
|---|---|
| Dimensions | 7.2 × 5.5 cm |
